Double Side Outdoor WiFi LEDs Message P5 Taxi Top Screen Display Factory Car LED

Shenzhen LED World Co., Limited
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：5mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：300W , m²

Base Info

  • Model NO.：LW-FO 5
  • Pixel Density：40000 DOT,M2
  • Scanning Mode：1,8 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, CCC, FCC
  • Module Size：160X160 mm
  • Display Size：960X320 mm
  • Cabinet Resolution：192X64dots
  • LED Type：MD3528
  • Cabinet Size：985X444mm
  • Transport Package：Wooden Case or as Required
  • Specification：985X444mm
  • Trademark：shenzhen led world
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：1000 PCS,Month

Description

                              Main technical Parameters for Taxi top led screenItem No.P5-F1-B05Pixel Pitch5mmModule size160x160Pixel density40000dots/sq.mLED component1R1G1BLED encapsulationSMD3528Display screen size960x320mmCabinet resolution240x64 dotsCabinet size985x444mmOptimal Viewing Angle (H/V)140/110Brightness>=5500cd/sq.mInput VoltageDC9~36V (or AC 110V/220V)Output Voltage5VPower consumption(Ave.)300W/sq.mMemory amplifySupport USB flash disk to expand capacity of memoryDriving methodAsynchronous controlRefresh rate(Hz)≥400 -1000Protection gradeIP65Working temperature(ºC) -30 ~ +70Support formatAVI, WMV,  MOV, MPG, DAT, VOB, MP4,  FLV, MPEG, MPV, MPA,
VCD, SWF, RM, RMJ, ASF, BMP, JPG, GIF, WMF, ICO,  SWF,etc.Cabinet weight22kgs

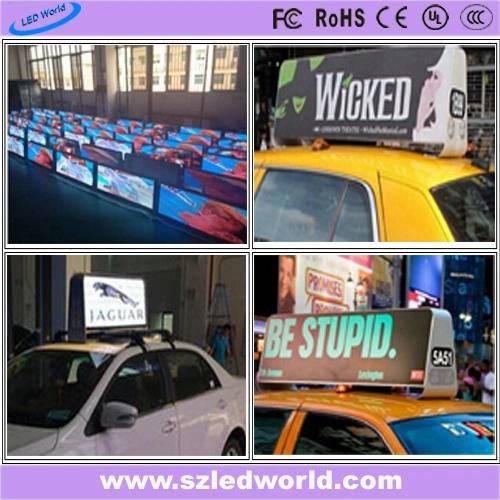

Project case:

Double Side Outdoor WiFi LEDs Message P5 Taxi Top Screen Display Factory Car LED

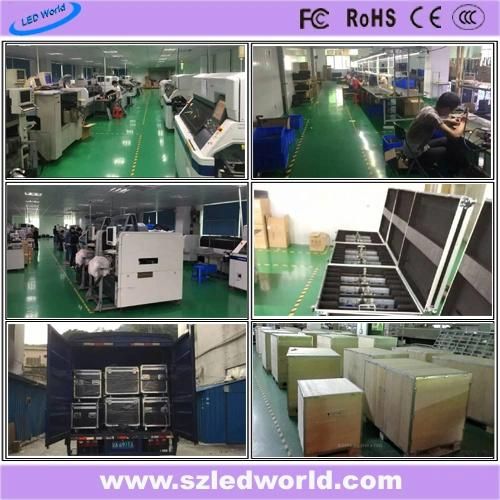

workshop and package:

Double Side Outdoor WiFi LEDs Message P5 Taxi Top Screen Display Factory Car LED



After sales maintainace:
We provide customer service through Skype, phone or email, provide video or drawing to solve customer's problem.
We provide remote control service through internet to achieve real time service, which will short the customer problem solving.
We provide one professional engineer only for you for fast reply.
We provide detailed drawing to customer to prepare metal structure.
We could dispatch our engineer to your place help for guide installation and free training.
Special designs have special solutions, we will satisfy all customer requirements to make perfect solutions.

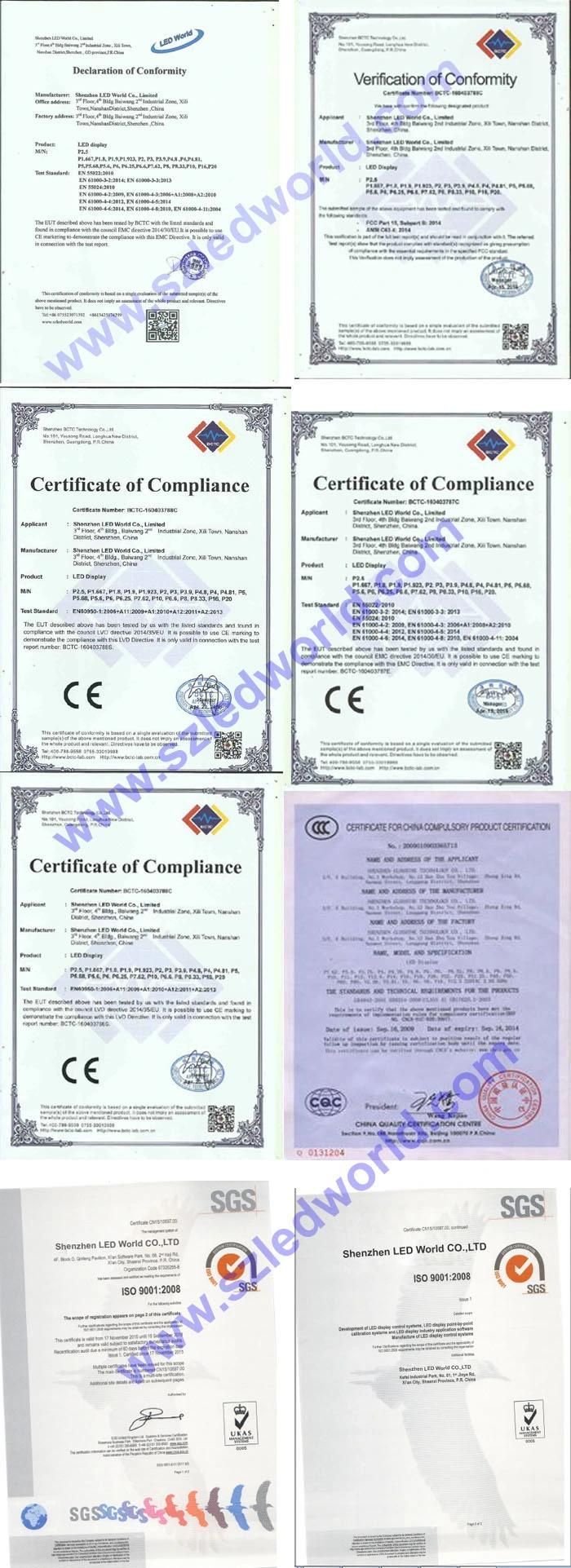

Certification:

Double Side Outdoor WiFi LEDs Message P5 Taxi Top Screen Display Factory Car LED

FAQ:
1. How long can I get the goods?
Our produce time is about 10-25 working days.When you confirmed the order, we can start production
after receiving your deposit(30% TT in advance). we will update the production details in time.we will
notice you that we can delivery the goods to you after we get full payment;
2. What are Pixel Pitch?
Pixel Pitch is the distance between neighboring pixels.
3. How to proceed an order for led light?
Firstly let us know your requirements or application.
4. Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production;
5. Do you offer guarantee for the products?
Yes, we offer 2 years warranty to our products;
6. What's the function of your led screen?
It supports videos, flash, WAV/MIDI, PPT, images and so on ;
