• Model NO.：SY-P4-16S
• System Operating Platform：Win98,2000,Nt,XP
• Display Type：LED Video Display
• Application：Stage Performance
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, FCC
• Warranty：Two Years Warranty After Shipping
• LED Lamp：Epistar
• Power Supply：G-Energy or Meanwell
• IC：Mbi
• Controller：Linsn or Nova or Color Light
• Panel Size：512mm*512mm
• Transport Package：Wooden Box or Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：5000sqm Per Month

Pixel 4mm High Refresh LED Panel For Indoor Outdoor Video AdvertisingItem NameParameterModel NoSY-P4-16SModule size256mm*128mmPixel pitch4mmPixel Density62500 pixels/m2Pixel configuration1R1G1BLED Package modeSMD2121Module resolution64dots(H)*32dots(V)Drive typeConstant driveScan mode1/16 scanPort typeHUB75-ABrightness of white balance≥1800cd/m2Cabinet Dimension512mm*512mmModule Quantity8pcsCabinet Resolution128*128Cabinet MaterialDie Casting AluminumBest viewing distance4M~15MBest viewing angle120°(H) 60°(V)Average Power consumption915W/m2Max.Power consumption≤1830W/m2Current≤20mA(single LED)Frame Frequency≥60HzRefresh frequency≥2000HZPower Supply ModeAC220±10%  50Hz/AC110±10%  60HzTemperaturestorage:-35ºC~+85ºC

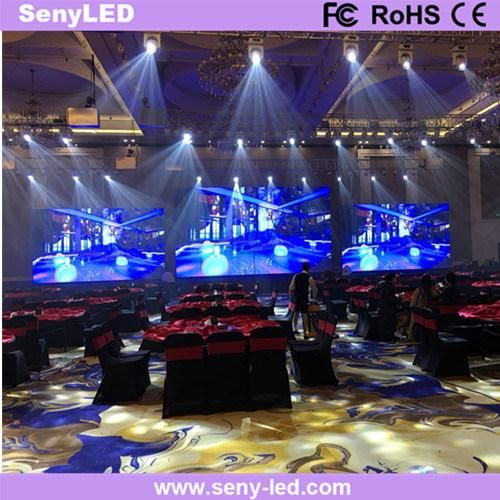

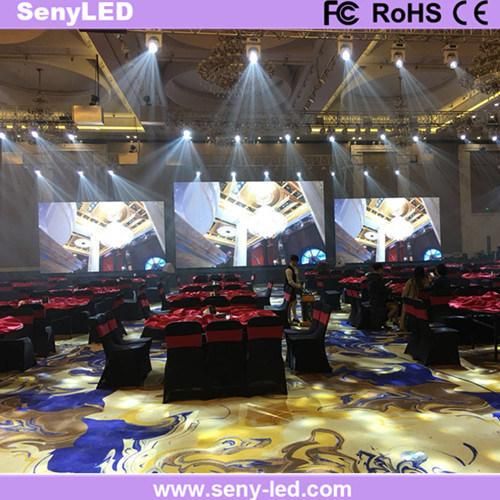

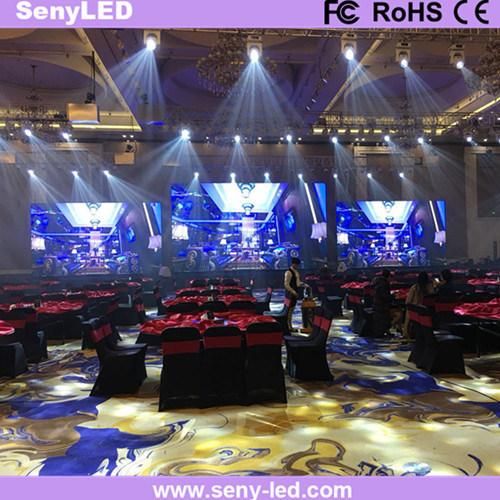

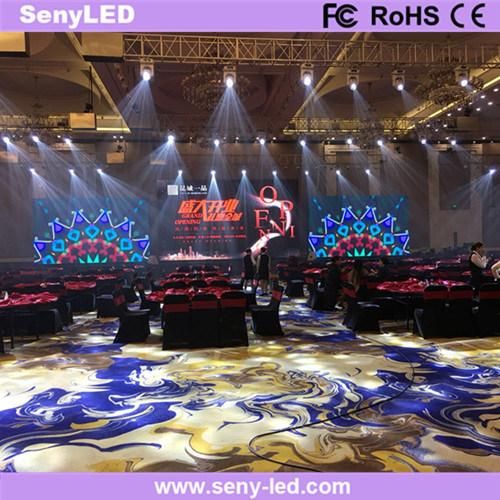

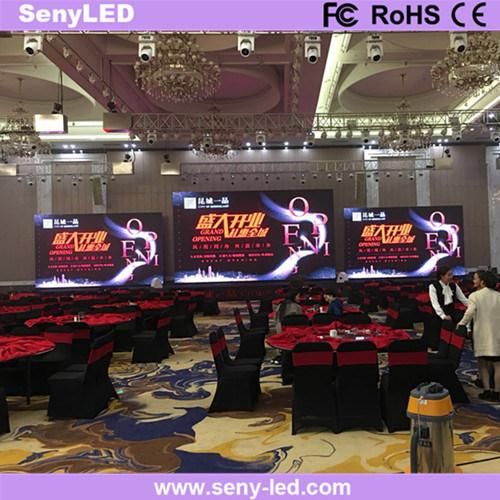

working:-20ºC~+50ºCHumidity10%-95%Grey scale/colors256levels of each color(RGB)/16.7M colorsScreen Lifespan≥100,000 hoursScreen Plainness<±1mmBlind Spot Rate<0.0001CPUPentium4 or above Operation systemWIN98/2000/NT/XPControl methodSynchronizationProject cases:
