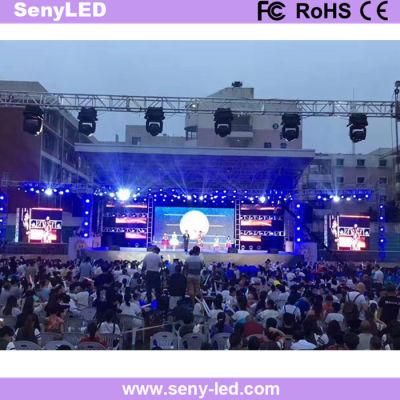

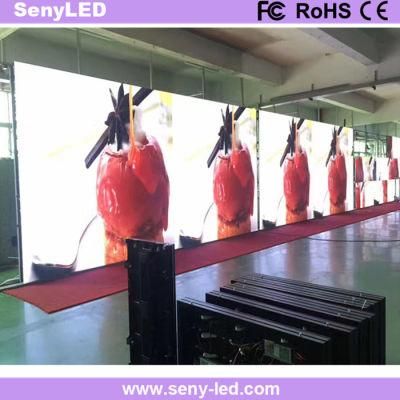

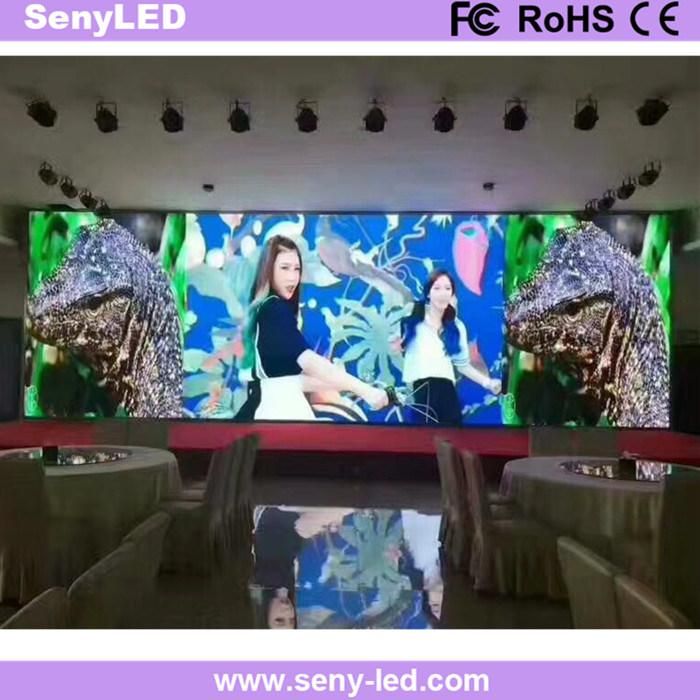

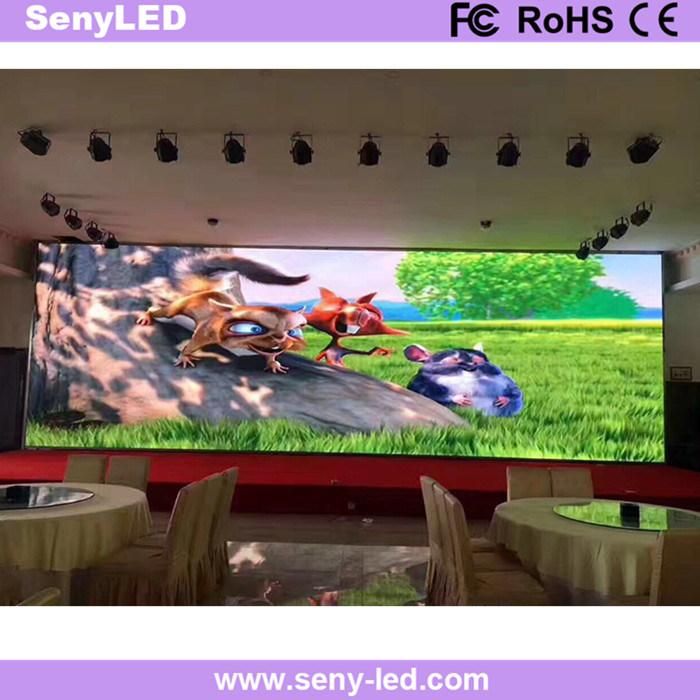

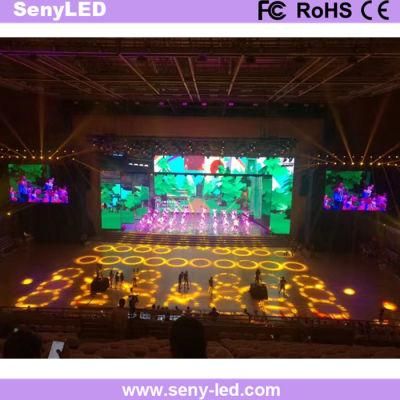

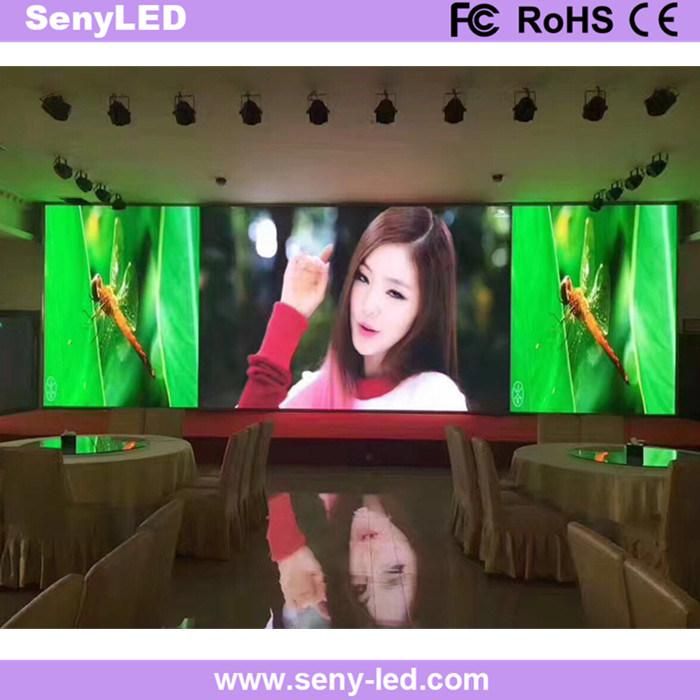

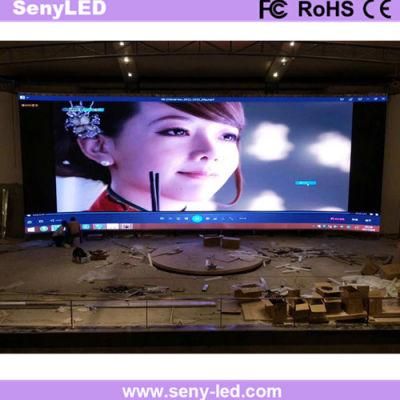

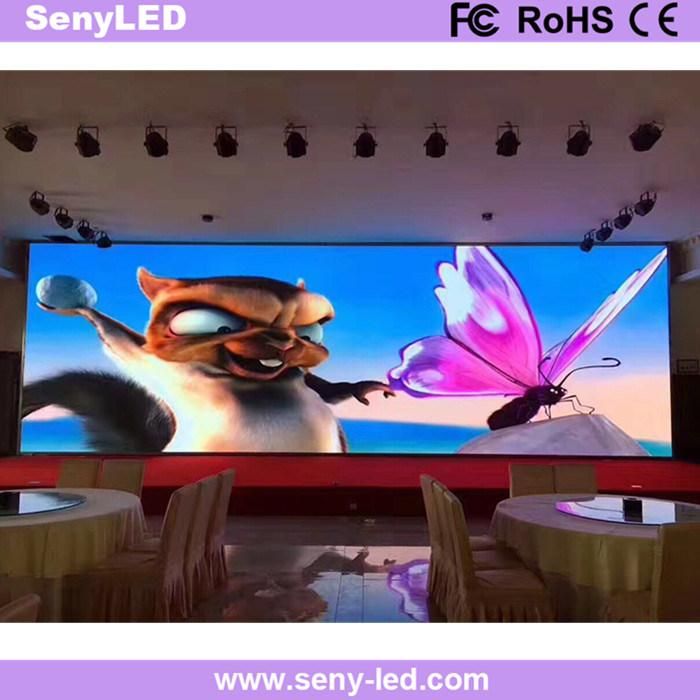

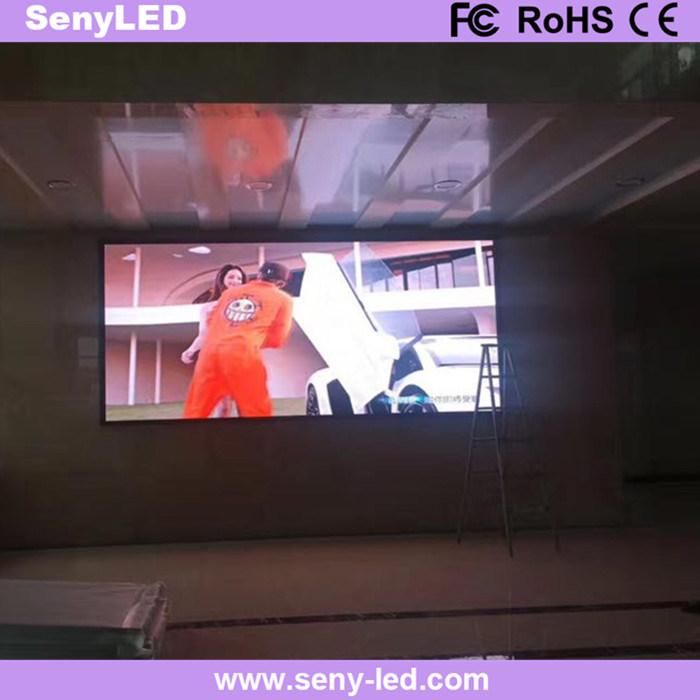

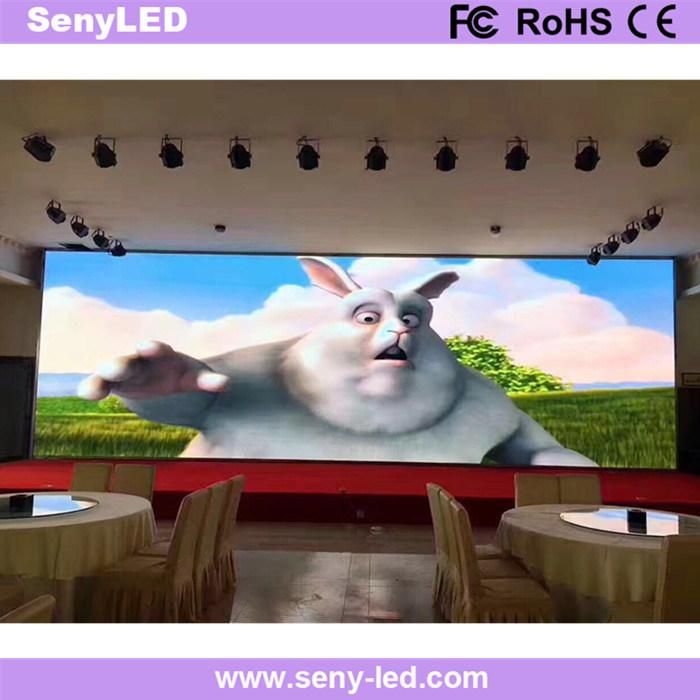

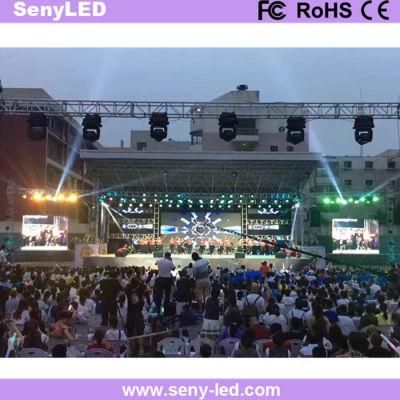

P2.5 Full Color LED Screen for Indoor/ Outdoor Movable Stage Back Wall
Shenzhen Seny Technology Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：2.5mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：160000 Dots,M2
- Scanning Mode：1,32 Scan
Base Info
- Model NO.：SY-P2.5-32S
- System Operating Platform：Win98,Win2000,Win XP,Win 7
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, UL, CCC, FCC
- Warranty：Two Years Warranty After Shipping
- LED Chip：Epistar
- Driving IC：Mbi
- Power Supply：G-Energy or Meanwell
- Control System：Linsn or Nova or Color Light
- Panel Size：480mm*480mm
- Transport Package：Wooden Box or Flight Case
- Specification：CE, RoHS, FCC
- Trademark：SENY
- Origin：Shenzhen, Guangdong, China
- HS Code：8528591090
- Production Capacity：5000sq. M,Month
Description
P2.5 Full Color LED Screen For Indoor/ Outdoor Movable Stage Back WallS/N Item Technical Parameters LED Parameters 1 Item Name LED Type Brightness Wave Length H/V Visual Angle 2 Red LED SMD2121 120-140mcd 620-625nm 140º/60º 3 Green LED SMD2121 360-435mcd 520-525nm 140º/60º 4 Blue LED SMD2121 80-100mcd 470-475nm 140º/60º Module Specifications 1 Pixel Pitch 2.5mm 2 Pixel Configuration SMD3in1 3 Module Resolution 64 x 32 pixels 4 Module Pixles 2048 pixels 5 Module Size 160mm X 80mm Cabinet Specifications 1 Cabinet Size(W X H X D) 480mm x 480mm x 80mm 2 Cabinet Resolution(dot) 192 x 192 pixels 3 Module Quanity (pcs) 18pcs 4 Cabinet Pixels 36864 pixels 5 Pixel Density 160000 pixels/m2 6 Cabinet Materials Aluminum Die Casting Whole Screen Specifications 1 Screen Brightness ≥1700cd/m2 2 Driving Method 1/16 scan 3 Mini Viewing Distance 2.5m 4 Max. Power Consumption 2200W/m2 5 Average Power Consumption 880W/m2 6 Gray Level 8bits input, 4096 levels(212) 7 Display Color 16M 8 Frame Frequency ≥60Hz 9 Refresh Frequency ≥1200Hz 10 Uninterrupted Working Hours ≥72 hours 11 Screen Life-span ≥100,000 hours 12 MTBF ≥5,000 hours 13 Discrete Blind Spot Rate <1/10000 14 Continuous Blind Spot Rate None 15 Blind Spot Rate <1/10000 16 Screen Plainness <±1mm 17 Power Supply Mode AC220±10% 50Hz/AC110±10% 60Hz 18 Environment Temperature & Humidity Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH 19 Control Mode Synchronous display with control PC by DVI 20 Control System DVI video card + full color control card + fiber system( optional) 21 Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. 22 Interface Standard Ethernet 23 Transmission Distance Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Humidity:10%~90% RH
