• Model NO.：LW-RO 4
• Pixel Density：62500 Dots,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL
• Cabnet Size：768X768 or Other Size
• LED Type：SMD 2727
• Drive Method：1,8
• Color Depth(Nits)：About 6500CD,Sqm.
• Compliant Standard：Ce,FCC,RoHS,ETL,CCC
• Transport Package：Wooden Box or Flight Case
• Specification：CE, FCC, RoHS, ETL, CCC
• Trademark：LED World
• Origin：Shenzhen, Guandong, China
• HS Code：8528591090
• Production Capacity：5000sq. M,Month

ItemTechnical parametersUNITParameters values Specifications of the modulePixel pitchMM4Panel sizeMML256*H128*T13Physical density/M²62500Pixel configurationR/G/B1,1,1Driving method Constant current 1/8scanLED EncapsulationSMD2727Display resolutionDOTS64X32=2048Module weightKG0.4Module port HUB75-BModule working voltageVDC5Module consumptionW30Specifications of LED cabinetCabinet weightkg25Cabinet sizemm768*768*160Cabinet resolutiondots192*192Viewing angleDeg.140°Option distanceM4-50Driving device 2026/5020/16016Every square metre modulePCS30.52Maximum powerW/ M²1000Frame FrequencyHZ/S                                            ≥80Refresh frequencyHZ/S≥1920Equilibrium brightnessCD/ M²≥5000Working environment temperature⁰C-10~60Working environment humidityRH10%~70% Display working voltageVACAC46~54HZ,220V±15%/110V±15%Colour temperature 8500K-11500KGray scale/color ≥16.7M colorInput signal RF S-Video RGB etcNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.Why choose us:
1,CE,RoHS,FCC, ISO9001;
2,Quality insuranc PCIC;
3,Service advantage: Better service at same situation, better cooperation at same service;
4,OEM & ODM available;

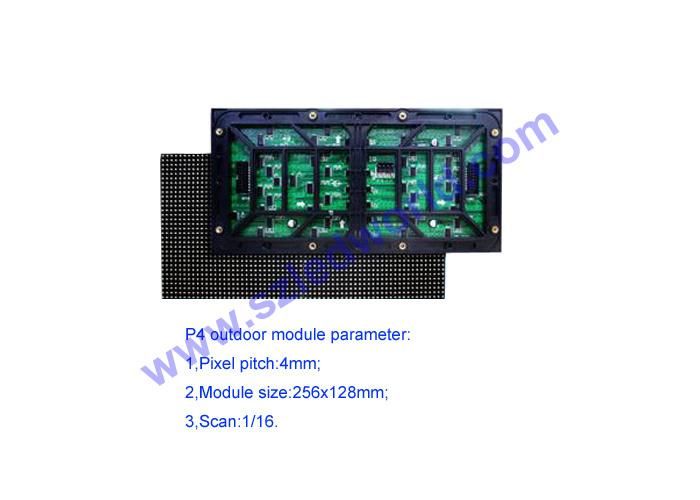

LED module:

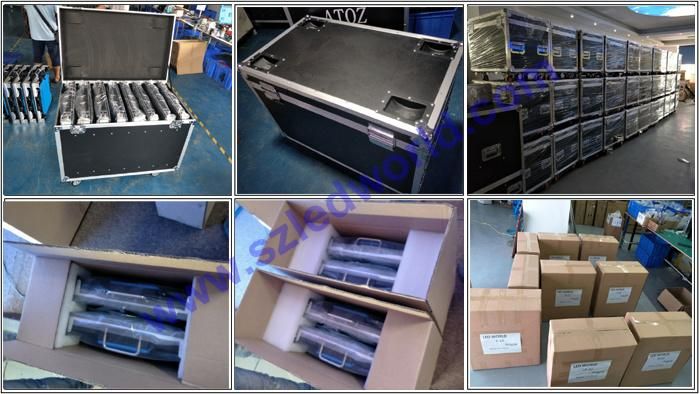

Package:


Certification:

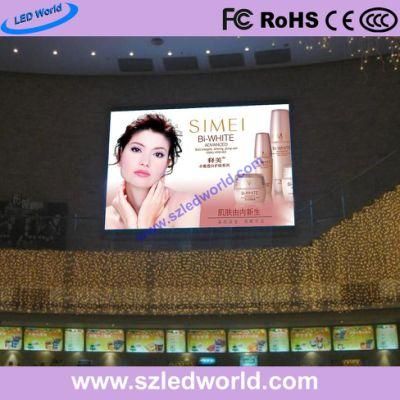

Applications:Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security company, insurance company, post office, hospital, school, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.Features of the Our LED Display:
*Quick assembly model, 2 persons are able to assemble 20sqm within one hour
*Light weight, for indoor application, only 35-38kg/sqm, for outdoor application, only 45-55kg/sqm
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness is adjustable depends on environment
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
Why choose us?
1. We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 8000 square meters of production base, 400 employees, enough for any orders.
2.We have integrated the sales team, let you no worries about pre-sales to after-sales
3. Years of production experience we can very good to control the quality of the product, OEM and ODM accepted.
4.100% QC inspection before shipping.
5.attractive price!
If you have any urgent questions, pls contact me without hesitation.

Installation:
User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided.

We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.
