• Model NO.：LW-FO 5
• Pixel Density：40000 Dots,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL
• Cabnet Size：960X960 or Other Size
• LED Type：SMD 2727
• Drive Method：1,8
• Color Depth(Nits)：About 6500CD,Sqm.
• Compliant Standard：Ce,FCC,RoHS,ETL,CCC
• Transport Package：Wooden Box or Flight Case
• Specification：CE, FCC, RoHS, ETL, CCC
• Trademark：LED World
• Origin：Shenzhen, Guandong, China
• HS Code：8528591090
• Production Capacity：5000sq. M,Month

P5 Outdoor full Color LED Screen SpecificationPixel pitch5mmPixel Configuration1R1G1BLED componentSMD2727 (nation star encapsulated)Size of module160mm x 160mm or 320x160mmResolution of module32x32dotsSize of cabinet800mm x 800mmx150mm/640mm x 640mm x 150mmResolution of cabinet160 x 160/128x128dotsMaterial of CabinetSteel Iron material( with back doors)Weight of Cabinet20KGSBrightness>6000cd/sq.mDensity40000dots/sq.mBest viewing angle140 /140Best viewing distance4-60MMaximum power consumption<1200W/sq.mAverage power consumption<400W/sq.mDriving method1/8 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1800HzIP gradeIP65Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;Distance(without relay)Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary developmentProduct detail:

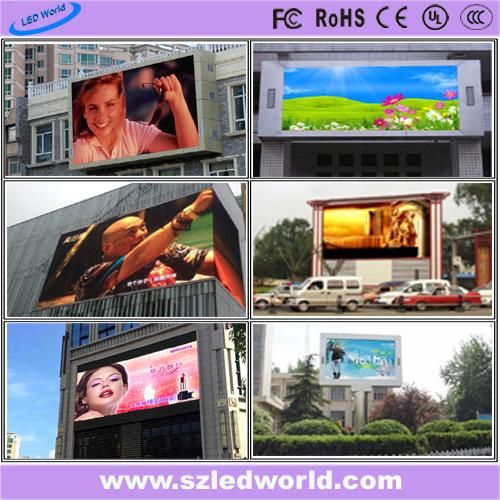

Project case:

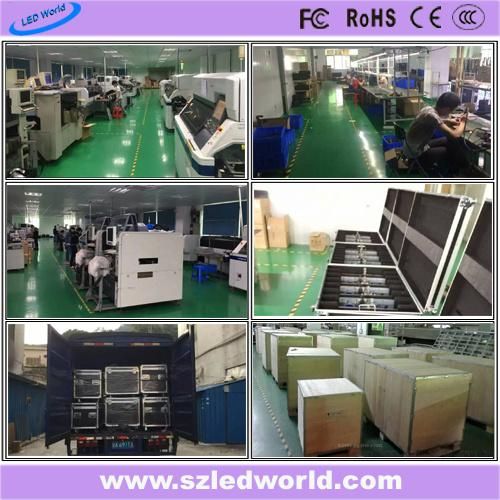

Workshop and package:

Applications:Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security company, insurance company, post office, hospital, school, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.Features of the Our LED Display:
*Quick assembly model, 2 persons are able to assemble 20sqm within one hour
*Light weight, for indoor application, only 35-38kg/sqm, for outdoor application, only 45-55kg/sqm
*Weatherproof to IP65 standards
*High resolution images
*Easily configured for various size and aspect ratios
*Wide viewing angle
*Brightness is adjustable depends on environment
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
Why choose us?
1. We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 8000 square meters of production base, 400 employees, enough for any orders.
2.We have integrated the sales team, let you no worries about pre-sales to after-sales
3. Years of production experience we can very good to control the quality of the product, OEM and ODM accepted.
4.100% QC inspection before shipping.
5.attractive price!
 If you have any urgent questions, pls contact me without hesitation.
Product Features:
High quality:
Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable.
Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.
Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well.
Advanced technology:
Advanced technology of production ensure the quality and lifetime of LED display; With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of LED five over one million each year.
Diversified display modes:
The products support multiple display modes.
Easy operation:
The products adopt popular video playing software to facilitate system operations.
Easy maintenance:
Easy for maintenance, and can fix the single point to save the maintenance cost.
