• Model NO.：BP-7
• Pixel Configuration：1R,1G,1B
• Pixel Density：169,344dots,Sqm
• Scanning Mode：1,32scan
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Advertising
• IP Rating：IP40
• Certification：CE, RoHS, UL, CCC, ETL
• Material：Aluminum
• Light：Nationstar
• Usage：Shopping Mall Ads
• Driver IC：Mbi 5124
• Warranty：2 Years
• Servicing：Front
• LED Type：SMD2121
• Power Supply：Meanwell
• Contrast Ratio：4000:1
• Transport Package：Flight Case,Plywood Case
• Specification：280*210mm
• Trademark：Bako vision
• Origin：China
• HS Code：8528591090
• Production Capacity：8000sqm Per Year
• Package size per unit product：215.00cm * 68.00cm * 20.00cm
• Gross weight per unit product：70.000kg

Basic Info.

Model NO. BP-7 Pixel Configuration 1R,1G,1B Pixel Density 169,344dots/Sqm Scanning Mode 1/32scan System Operating Platform WIN XP Display Type LED Video Display Application Advertising IP Rating IP40 Certification CE, RoHS, UL, CCC, ETL Material Aluminum Light Nationstar Usage Shopping Mall Ads Driver IC Mbi 5124 Warranty 2 Years Servicing Front LED Type SMD2121 Power Supply Meanwell Contrast Ratio 4000:1 Transport Package Flight Case/Plywood Case Specification 280*210mm Trademark Bako vision Origin China HS Code 8528591090 Production Capacity 8000sqm Per Year

Packaging & Delivery

Package size per unit product 215.00cm * 68.00cm * 20.00cm Gross weight per unit product 70.000kg

Product Description

Movable P2.5 Indoor LED Poster Display with Nationstar Leds

Parameters:

Pixel Pitch	P2.5
LED Type	SMD2121
Module Size	280*210
Whole Set Size	568*1898*32
Module Resolution	112*84
Cabinet Weight	28kg
Cabinet Material	Aluminum
Gray Scale	16bit
Contrast Ratio	4000:1
Brightness	1000nits
View Angle(H/V)	140°/160°
Refresh Rate	≥2880Hz
IP Rating	IP40
Average Power Consumption(W/sqm)	200W/Set
Maximum Power Consumption(W/Sqm)	600W/Set
Servicing	Front

 Product Description

1.Ultra slim and light-weight body, easy to lift up
28kg per set, the tickness of Our this series poster screen only 35mm. While others 45mm.

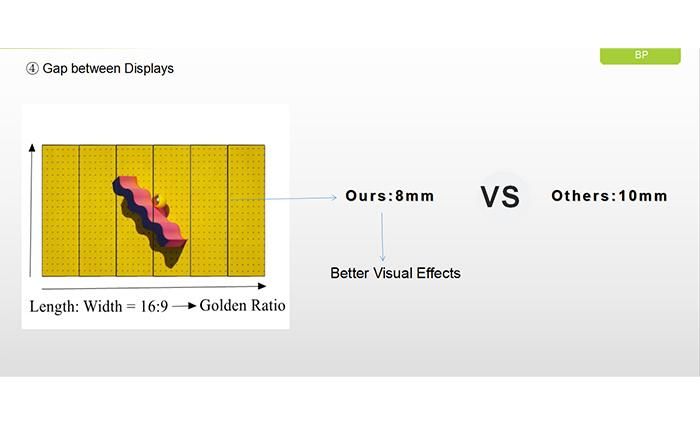

8mm Gap between Displays,  orthers 10mm.

Adding Wheel for easily moving


2. HD visual experience

1.9 mm and 2.5 mm pixel pitch, high refresh rate (2880Hz) and brightness (1000 nits) provide users with perfect display effect.

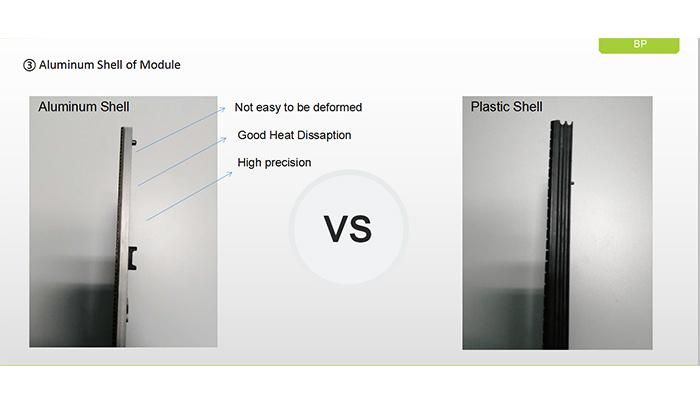

3. Aluminum Shell of Module

Not easy to be deformed,Good Heat Dissaption,High precision

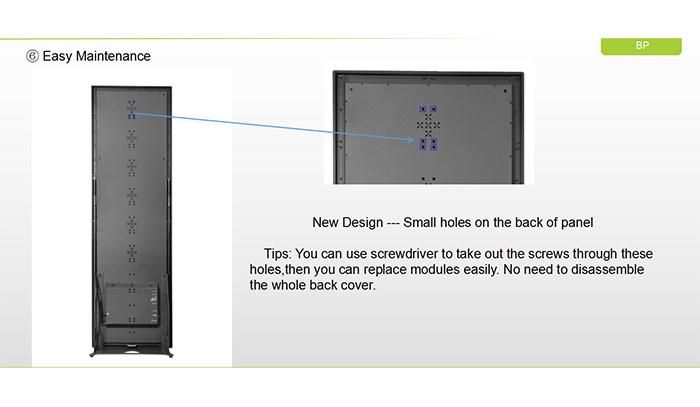

4.New Design --- Small holes on the back of panel

You can use screwdriver to take out the screws through these holes,then you can replace modules easily. No need to disassemble the whole back cover.

Features:












Package:




Company Introduction:

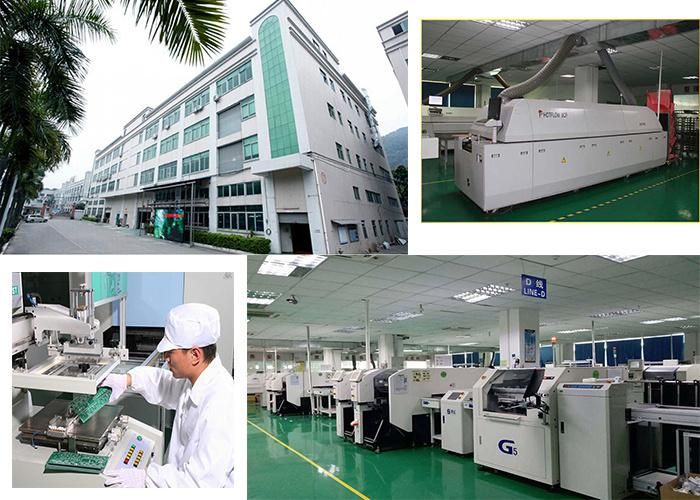

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

FAQ

Q1:How to choose a proper led screen for your need?

A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?

Q2:Which pixel pitch should i choose?

A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).

Q3:Which control system should i choose?

A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.

Q4:How to order from you compamy?

A:You can both place order to us by online or to our company directly offline, before place order welcome to contact us for confirmation.

Q5:How to pay?

A:We accept L/C, T/T bank, or paypal or westerunion.

Q6:How to ship?

A:It is optional and we respect customer's choice. You can choose to ship by air cargo, by DHL(Fedex,UPS etc) internation express company, or by sea according to your goods weight and volume and the delivery time you need.

Q7:How to install it after i received it?

A:We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
