• Model NO.：p10 outdoor led display
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, FCC,SGS,TUV
• Product Name：P10 Outdoor LED Display
• LED Lamp：Kinglight,Nation Star
• Color Temperature：6500-7000K
• LED Chip：Epistar From Taiwan
• Display Contrast：2500:1
• Frame Rate：60Hz,S
• Service Life：100000h
• Use Voltage：AC 90-240V
• Cabinet Size：960*960mm , 1280*960mm
• Maximum Power：800W,M2
• Transport Package：Wooden Case ,Flight Case ,Carton
• Specification：320mm*160mm
• Trademark：Honghui
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：3500 Sqm ,Month

P10 SMD Outdoor full Color LED Screen SpecificationPixel pitch10mmSize of module320m χ 160mmResolution of module32 X 16Size of cabinet960mm x 960mm x 120mmResolution of cabinet96 x 96 dotsWeight of Cabinet40KGSBrightness>5500cd/sq.mDensity10,000dots/sq.mBest viewing angle140H /140vPixel Configuration1R1G1BBest viewing distance8-100MMaximum power consumption<800W/sq.mControl methodSynchronization/ AsynchronizationColor temperature6500-7000kWorking voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%MTBF>10,000 hoursFrame frequence50/60HzIP gradeIP65Life Span100,000 hoursControl Distance120 m (no repeating); Optical fiber transmission: 0.5km- 10kmSystems operating platformWindows XP, Win 7, Win8, Win8.1, Win10Single Input(with video processor)HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.



Our Factory and Service :

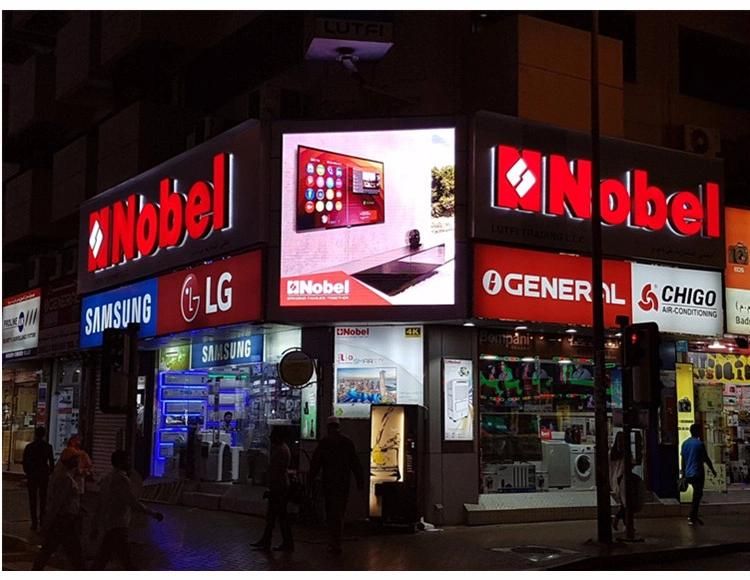

Application:
