• Model NO.：indoor P5
• Pixel Density：6944 dot , m²
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Horizontal Viewing Angle：120degree
• Vertical Viewing Angle：110degree
• Waterproof：IP67
• L[Ife Span：>100, 000hours
• Transport Package：Anti-Shaking Wooden; Air Flight Case; Carton Case
• Specification：CE, RoHS, SGS, etc.
• Trademark：FOXGOLDEN
• Origin：Shenzhen
• HS Code：8528591090
• Production Capacity：4000sqm,Month

Basic Info.

Model NO. indoor P5 Pixel Density 6944 dot / m² Scanning Mode 1/8 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Horizontal Viewing Angle 120degree Vertical Viewing Angle 110degree Waterproof IP67 L[Ife Span >100, 000hours Transport Package Anti-Shaking Wooden; Air Flight Case; Carton Case Specification CE, RoHS, SGS, etc. Trademark FOXGOLDEN Origin Shenzhen HS Code 8528591090 Production Capacity 4000sqm/Month

Product Description

Feature and Advantage:
1. Wide application field & short ROI time: Commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
2. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system...
3. First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN LED lamps to ensure the long lift-time and high brightness of our LED display screen system
4. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
5. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
7. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

Trade Terms
1. Payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port: Shenzhen, Mainland China
4. MOQ: 1sqm

Numbers	Technical indexes	Specification
1	Pixel Pitch	5mm
2	Density of Pixel	6944dots/M2
3	Pixel configuration	1R1G1B
4	Size of Single Board	192mm X192mm
5	Colors	16777216
6	Best Viewing Distance	12-120m
7	Horizontal Viewing Angle	120°
8	Maximum Power Consumption	1500W/m2
9	Brightness	>8000cd/m2
10	Gray Scale	16bits per color
11	Color Temperature	6500k
12	Control Method	synchronization &synchronization
13	Driving method	1/4scanning
14	Frame Frequency	60Hz
15	Refresh frequency	300Hz
16	Working Voltage	AC220V/110±10%
17	IP grade	IP65
18	Working temperature	-20 degree centigrade ~ +80degree centigrade
19	Computer operation system	Win XP/ winVista, Win 2000.Win7
20	Brightness adjustment	256 grade manual, 8 grade automatic
21	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC.ect
22	Software	LED play software
23	MTBF	More than 10000 hours
24	Life Span	100,000 hours

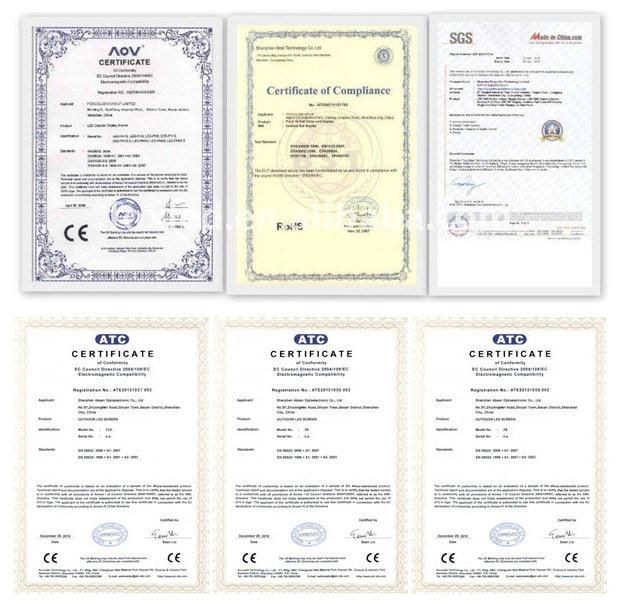

Certification:

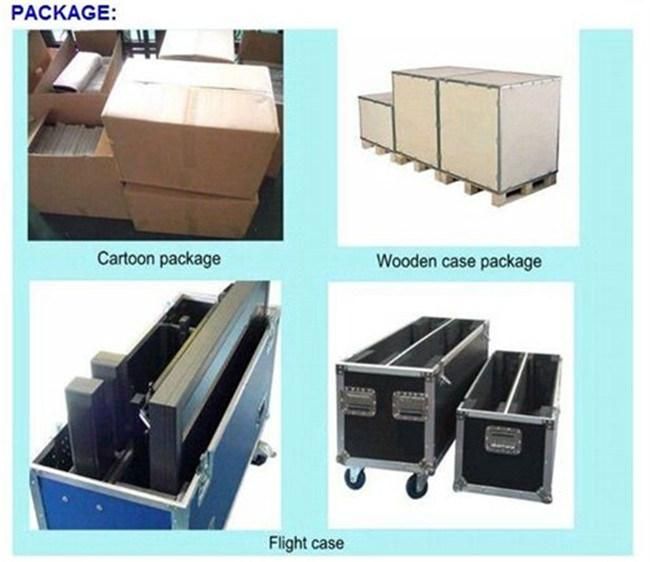

Package:



Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
