High IP Grade Outdoor P10 Waterproof LED Module
Shenzhen Foxgolden Technology Limited- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：<=1500W,Sqm
Base Info
- Model NO.：P10
- Pixel Density：10000 dot , m²
- Scanning Mode：Static Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL
- Power Consumption：600W
- Warranty Time：7years
- Delivery Time：3-12working Days
- Life Span：More Than 100, 000hours, ≥ 100, 000hours
- Cabinet Material：Aluminum
- Brightness of White Balanc：10, 000CD,Sqm Can Adjustable
- Brightness：7500-8000CD,Sqm
- IP Grade：IP65 Front, IP43 Back
- Product：High IP Grade Outdoor P10 Waterproof LED Module
- Driving IC：Mbi5124
- Transport Package：1. Anti-Shaking Wooden Package. 2. Air Flight Case
- Specification：CE&ROHS&UL&FCC&SGS&3C
- Trademark：FOXGOLDEN
- Origin：Shenzhen, China
- HS Code：8528591090
- Production Capacity：10, 000PCS,Month
Description

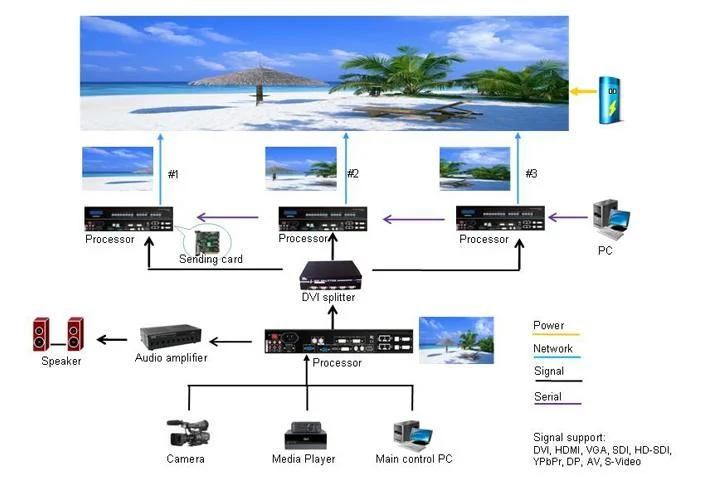

Technical parameterUnit module Module size 160*160mm Pixel pitch 10mm Pixel density 10, 000dots/m2 Pixel configuration 3 in 1 Led specification SMD5050 Pixel resolution W: 16dots*H: 16dots Cabinet Dimension 960mm*960mm*110mm Cabinet material Aluminum Weight 45 kg/sqm Quantities of module 36pcs Power supply 6pcs Thermal discharge Fan*2pcs Total weight 65kg Best viewing angle 10-100m Temperature Storage: -35degree~+85degree Working: -35degree~+85degree Thickness 11cm can adjustable Remarks: cabinet size can changed, upon project need. Power Working voltage AC220V/110V± 10% Average power consumption 600W Max. Power consumption ≤ 1000W/sqm Current ≤ 20mA(single LED) Control system CPU Pentium4 or above Operating system WIN98/2000/NT/XP Control method Synchronization Main technical parameter Driving device 1/4scanning Drive type Constant Current driver IC Refresh frequency ≥ 400Hz Grey scale/colors 256 levels of each color(R/G/B)/16.7M color Brightness of white balance 10, 000cd/sqm can adjustable Brightness adjustment 256 levels of each color(R/G/B)by software Operating ambient humidity 10%--95% Video signal PAL/NTSC Control system DVI display card+full color controller card MTBF ≥ 10, 000hours Life span ≥ 100, 000hours Flatness Tolerance of interpixel ≤ 0.3mm Tolerance of modules clearance≤ 0.6mm Power switch Automatic switch Display mode 1024*768 Communication distance Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM Software LED media player
Warmly welcome to visit FOXGOLDEN ( foxgolden.en.made-in-china.com )!!!! -:)
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
