• Model NO.：4mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256X128mm
• Module Resolution：64X32dots
• Cabinet Size：512X512mm
• Cabinet Resolution：128X128dots
• Screen Brightness：150nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce
• Service：Rear Maintenance
• Controller：Novastar, Linsn
• Transport Package：Flight Case
• Specification：512x512x88mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 4mm System Operating Platform Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL Module Size 256X128mm Module Resolution 64X32dots Cabinet Size 512X512mm Cabinet Resolution 128X128dots Screen Brightness 150nits Refresh Rate 1920Hz-3840Hz Compliance Ce Service Rear Maintenance Controller Novastar/ Linsn Transport Package Flight Case Specification 512x512x88mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

RI SERIES PRODUCT FEATURES:

· High screen brightness : 1500nits.

· Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

·Easy and quick assembly: fast assembly and dismantle design to save labor force and  time.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.




PRODUCT SPECIFICATIONS:

NO.	Parameter	Specifications
1	Model	RI4-SMD2020  indoor rental screen
2	Pixel Pitch(mm)	4.0
3	LED encapsulation	SMD2020
4	Screen Resolution(dots/sqm)	62500
5	Scan Method	1/16
6	Module size(mm)	256*128
7	Cabinet size(L*W*H)	512X512X88mm
8	Cabinet(Kg)	7.5KG
9	Viewing angle	H:140° V:140°
10	Grey Scale	65536
11	Refresh rate(HZ)	≥1920
12	Brightness(nits)	≥1500
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/sqm)	330
15	MAX. power consumption(W/sqm)	920
16	IP grade	IP31
17	controller	Linsn/Nova
18	Working humidity	10~90%RH
19	Storage humidity	10~90%RH
20	Working temperature	-20ºC~60ºC
21	Storage temperature	-40ºC~70ºC

Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. The size can be change as you give.
3. What we show is some of our current models, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win)

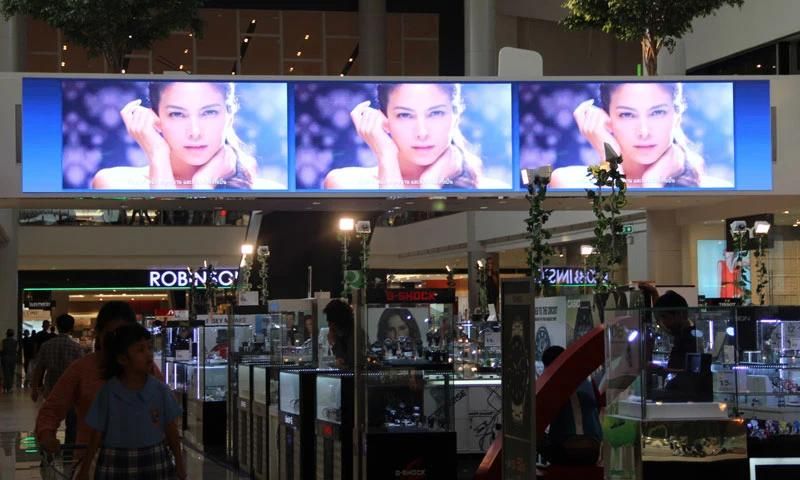

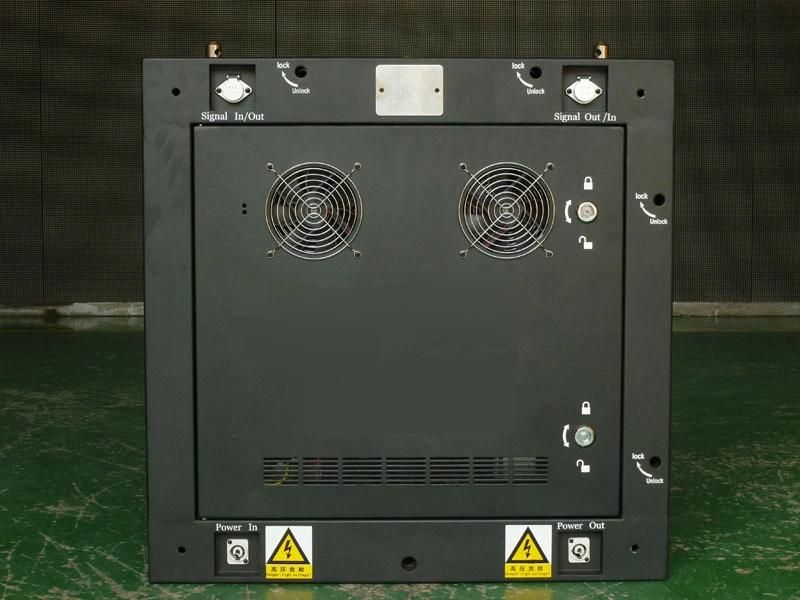

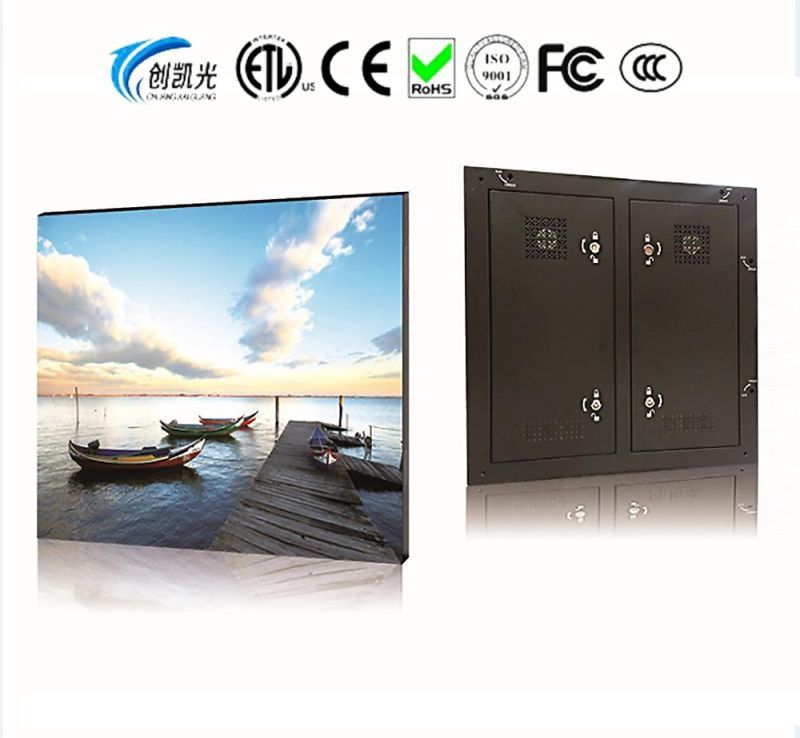

Product photos:

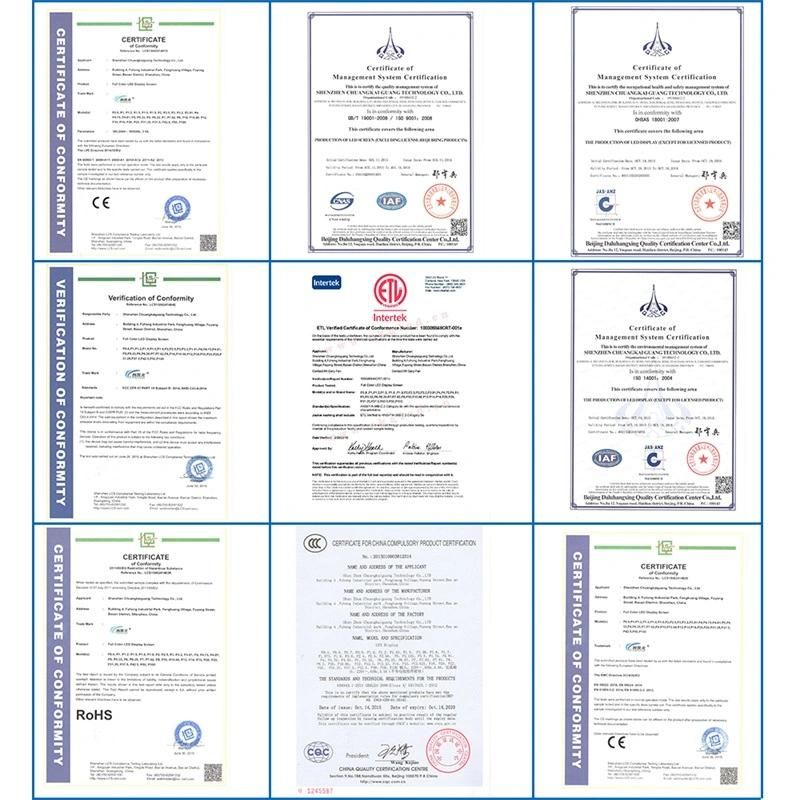

Certificates:



Package:
