Outdoor Waterproof High Definition P6 P8 P4 P10 LED Display Module Billboard

Shenzhen Chuangkaiguang Co., Ltd.

IP Rating：IP65
Pixel Pitch：6mm

Base Info

Model NO.：6mm
Pixel Configuration：1R, 1G, 1B
Display Function：Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption：300W , m²
Pixel Density：27777dots,Sqm
Scanning Mode：1,8 Scan
Display Type：LED Video Display
Application：Advertising
Certification：CE, RoHS, UL, CCC, ETL, L,C
Module Size：192X192mm
Module Resolution：32X32dots
Cabinet Size：768X768mm
Cabinet Resolution：128X128dots
Screen Brightness：7500nits
Protection Grade：IP65
Compliance：Ce , RoHS
LED Type：SMD3535
Cabinet Material：Steel Iron,Aluminum
Ave.Power Consumption：300W,Sqm
Max.Power Consumption：900W,Sqm
Refresh Rate：1920Hz-3840Hz
Maintenance：Front , Rear
Waterproof Grade：IP65
Brightness：7500nits
Transport Package：Plywooden Case
Specification：960x960mm
Trademark：CKGLED
Origin：China
HS Code：8528591090
Production Capacity：6000sqm,Month

Description

Pixel pitch6mmPixel configuration1R1G1BModule size192mm*192mmPixel density27777 dots/sqmModule pixel32dots*32dotsModule resolution1024dotsDriving method1/8 constant driving

Cabinet specifications:
Cabinet size768mm*768mm*150mmModule Qty16pcsCabinet resolution128dots*128dotsCabinet pixel16384dotsCabinet weight30kgPower consumption(w/sqm)AVE.300 / MAX.900

SCREEN PARAMETERS:
No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)120°,(V)60°5Brightness ≥7500cd/sqm6Drive Method1/8 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 300W/sqm16Max. Power Consumption900W/sqm17Assembly precision between PCB≤1 mm18Service AccessFront /Rear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

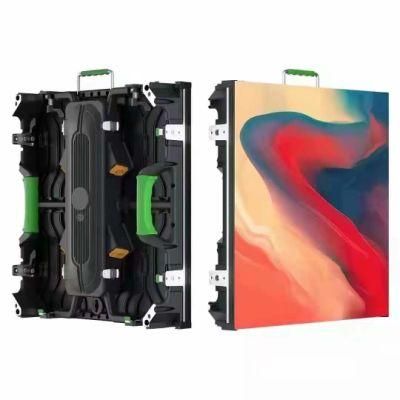

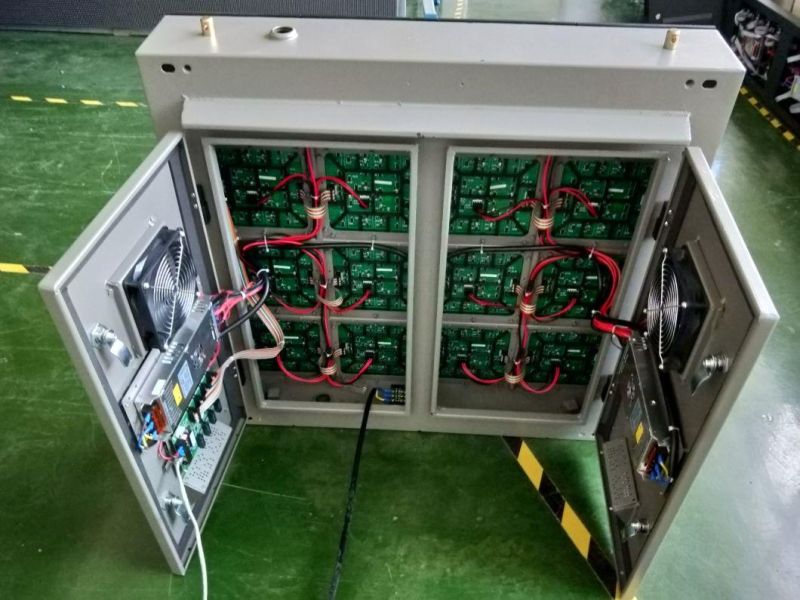

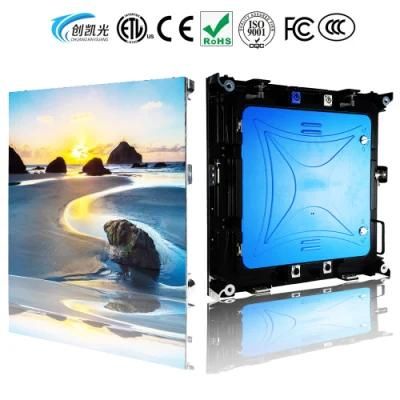

PRODUCT PHOTOS:
Outdoor Waterproof High Definition P6 P8 P4 P10 LED Display Module Billboard

Outdoor Waterproof High Definition P6 P8 P4 P10 LED Display Module Billboard

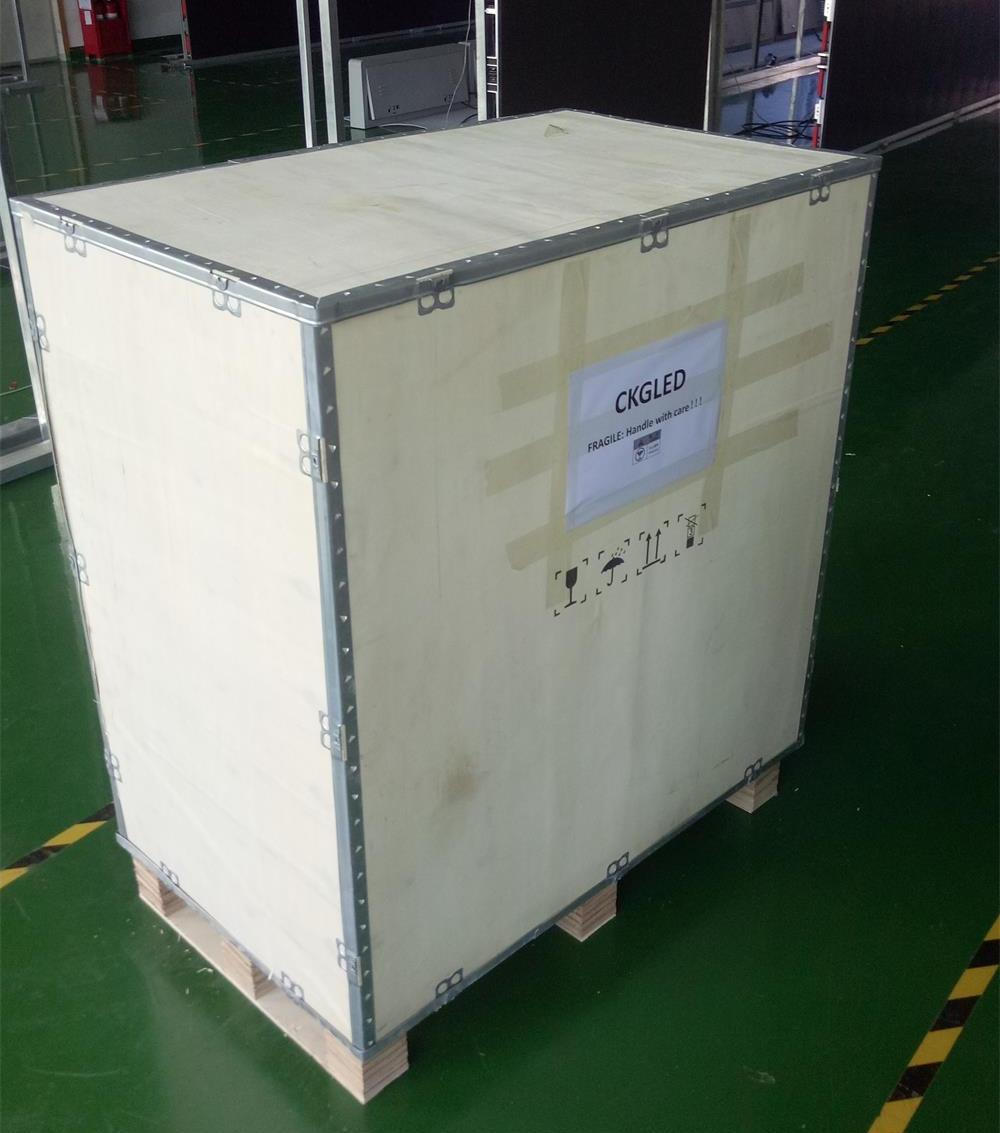

PACKAGE:
Outdoor Waterproof High Definition P6 P8 P4 P10 LED Display Module Billboard

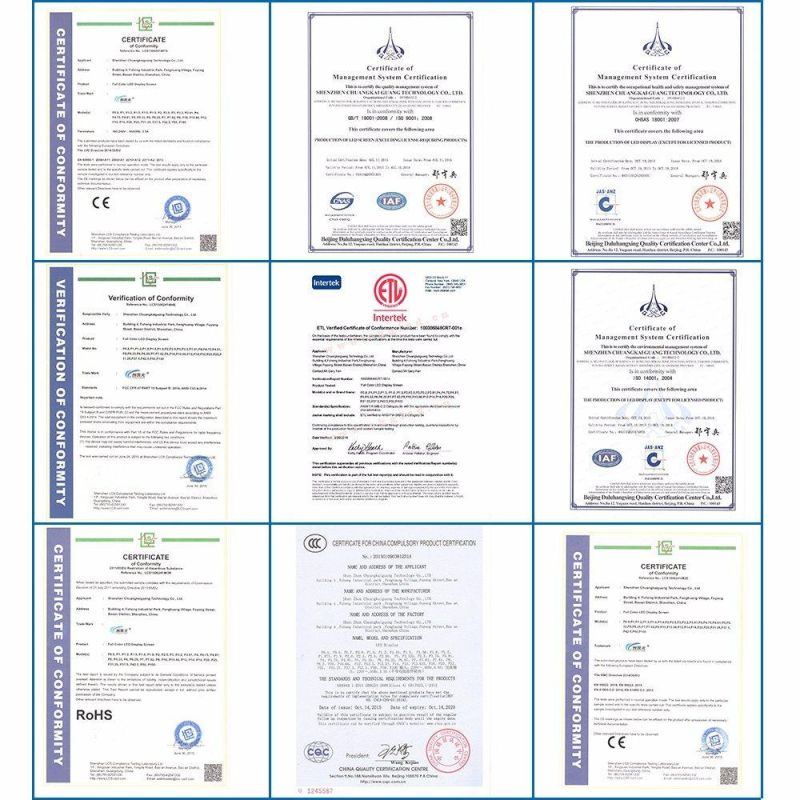

CERTIFICATES:
Outdoor Waterproof High Definition P6 P8 P4 P10 LED Display Module Billboard

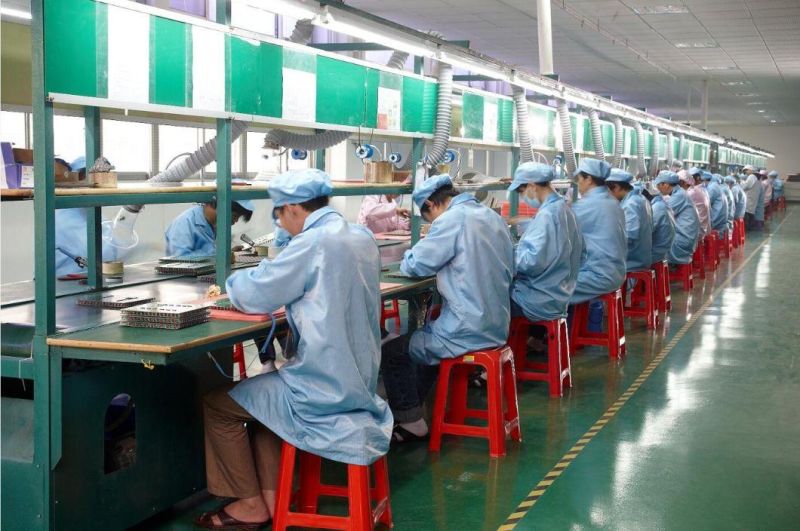

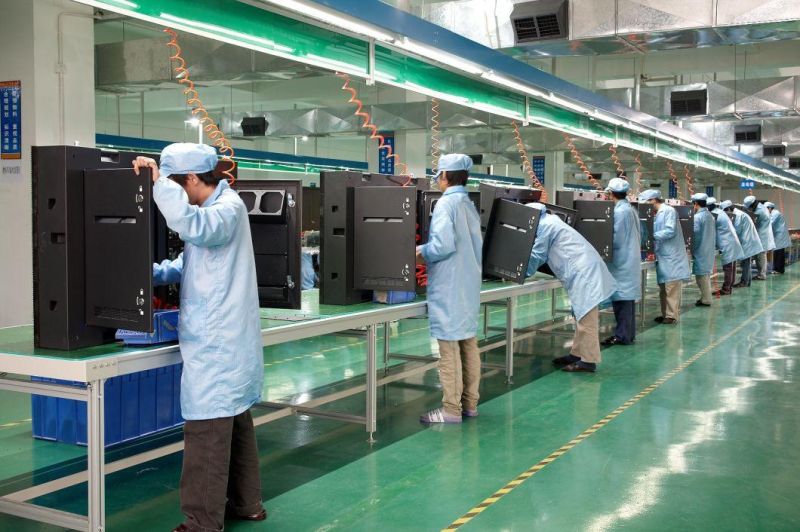

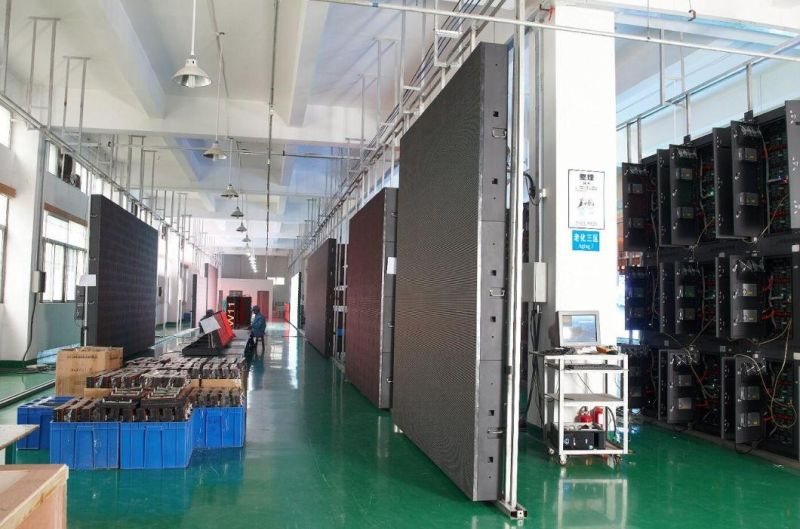

PRODUCTION WORKSHOP:
Outdoor Waterproof High Definition P6 P8 P4 P10 LED Display Module Billboard

FOREIGN EXHIBITION:
Outdoor Waterproof High Definition P6 P8 P4 P10 LED Display Module Billboard

Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
