Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard

Shenzhen Chuangkaiguang Co., Ltd.
  • IP Rating：IP65
  • Pixel Pitch：6mm

Base Info

  • Model NO.：F1
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：300W , m²
  • Pixel Density：27777dots,Sqm
  • Scanning Mode：1,8 Scan
  • Display Type：LED Video Display
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：192X192mm
  • Cabinet Size：960X960mm
  • Screen Brightness：6000nits
  • Protection Grade：IP65 Waterproof
  • Compliance：CE , RoHS,FCC , ETL
  • Cabinet Material：Steel Iron,Aluminum
  • LED Type：SMD3535
  • Avg.Power Consumption：260W,Sqm
  • Max.Power Consumption：750W,Sqm
  • Refresh Rate：1920Hz
  • Drive Method：1,8 Scan
  • Maintenance：Rear
  • Transport Package：Plywooden Case
  • Specification：960x960mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

No.ParameterSpecification1Pixel Pitch6mm2Pixel Density27777pix/sqm3LED TypeSMD35354Viewing Angle(H)140°,(V)140°5Brightness ≥6000cd/sqm6Drive Method1/8 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤40kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 300W/sqm16Max. Power Consumption900W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~70ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

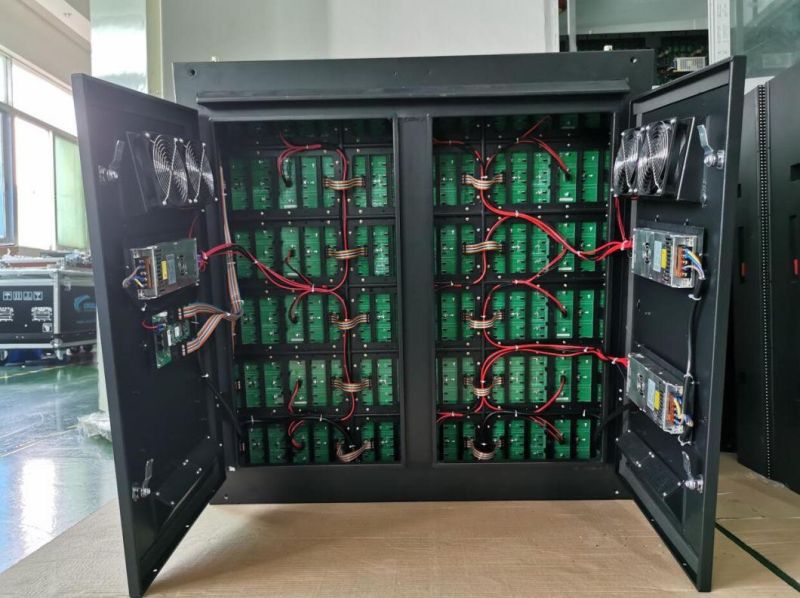

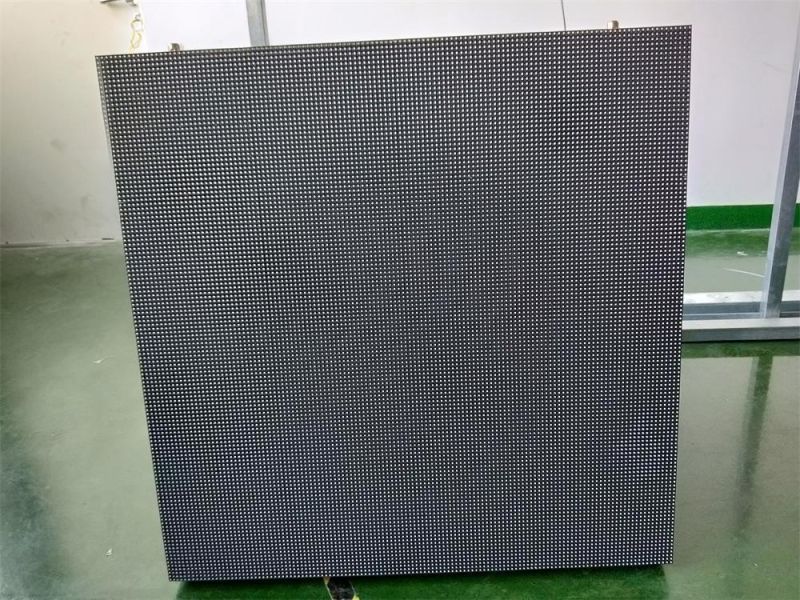

PRODUCT PHOTOS:Outdoor P6mm High Brightness Full Color Large LED Display Signage BillboardOutdoor P6mm High Brightness Full Color Large LED Display Signage Billboard
Outdoor P6mm High Brightness Full Color Large LED Display Signage BillboardOutdoor P6mm High Brightness Full Color Large LED Display Signage Billboard

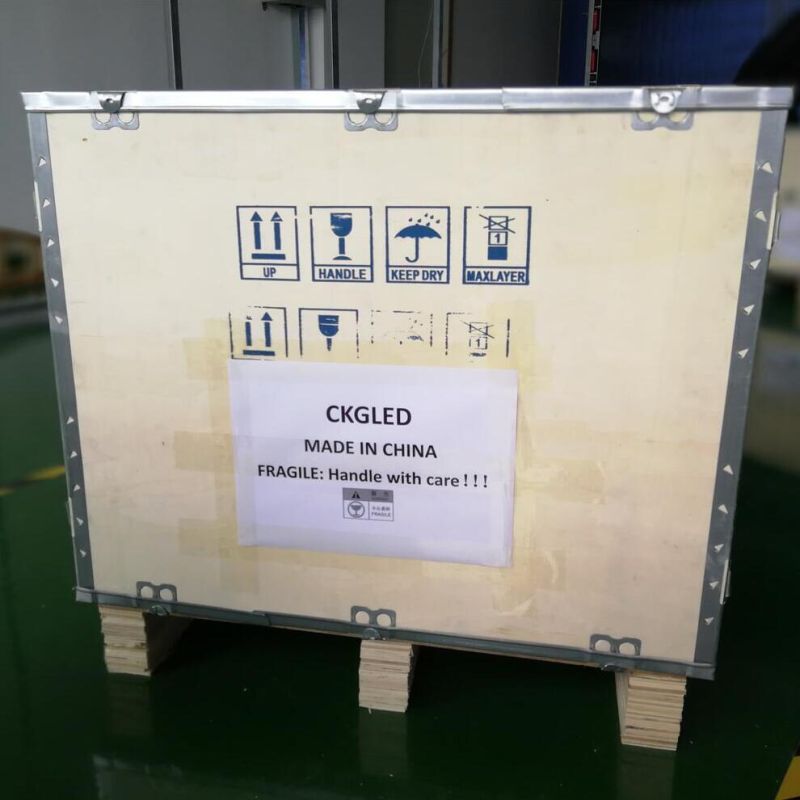

PACKAGE:
Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard


CERTIFICATES:
Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard

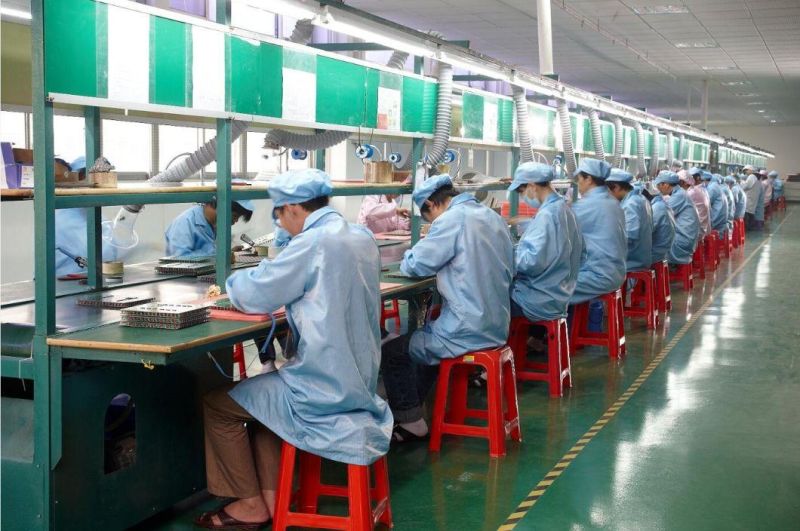

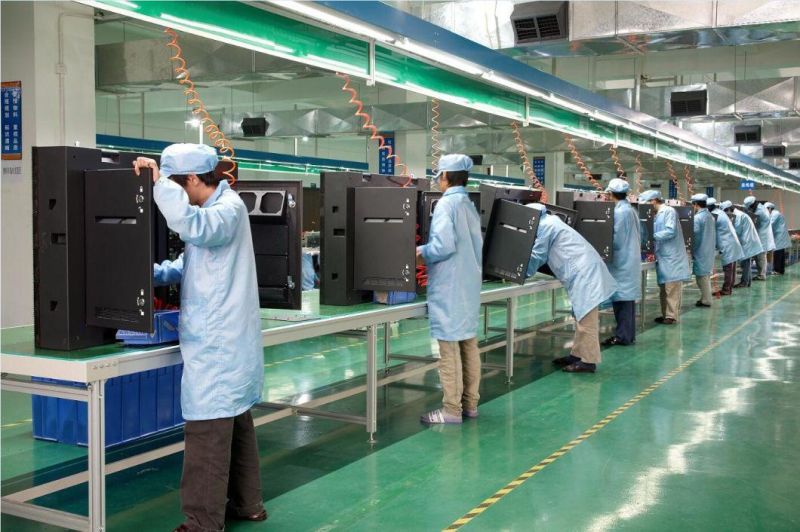

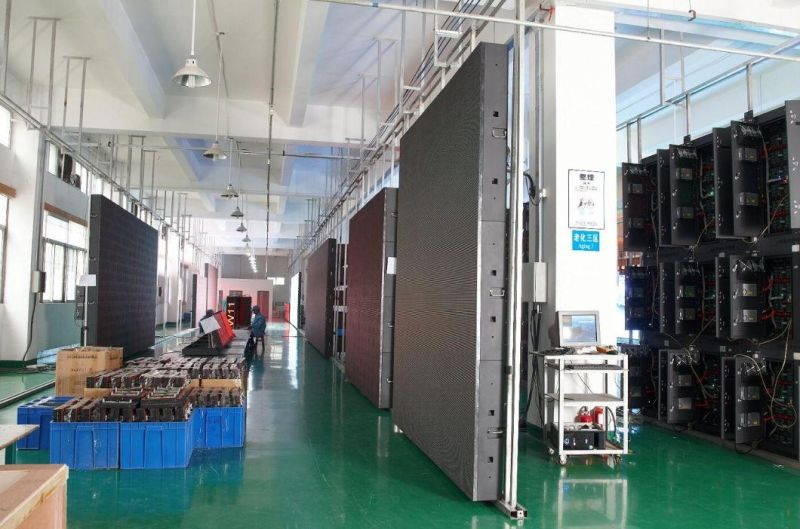

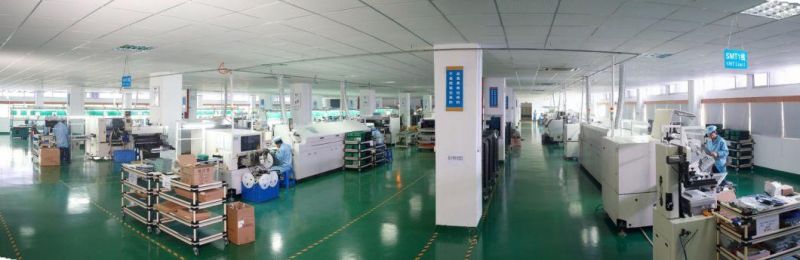

CKGLED FACTORY WORKSHOP:

In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.

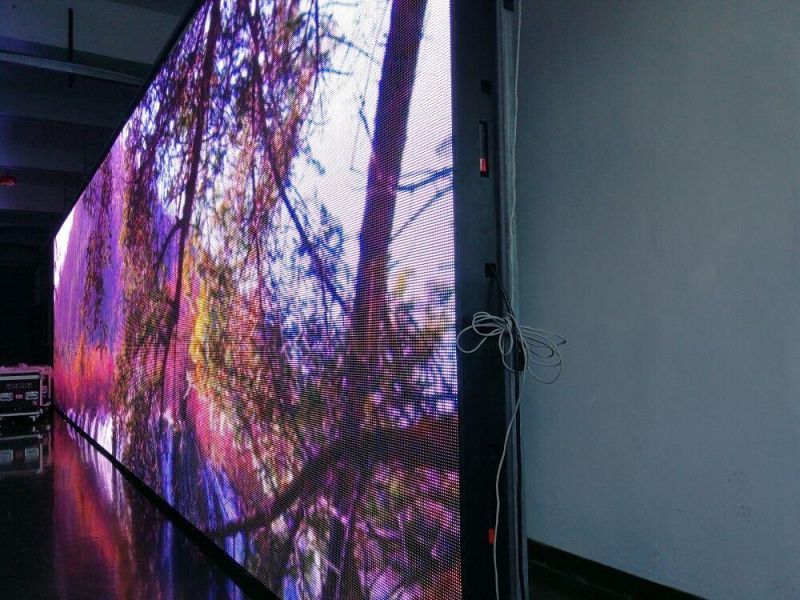

Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard
Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard
Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard

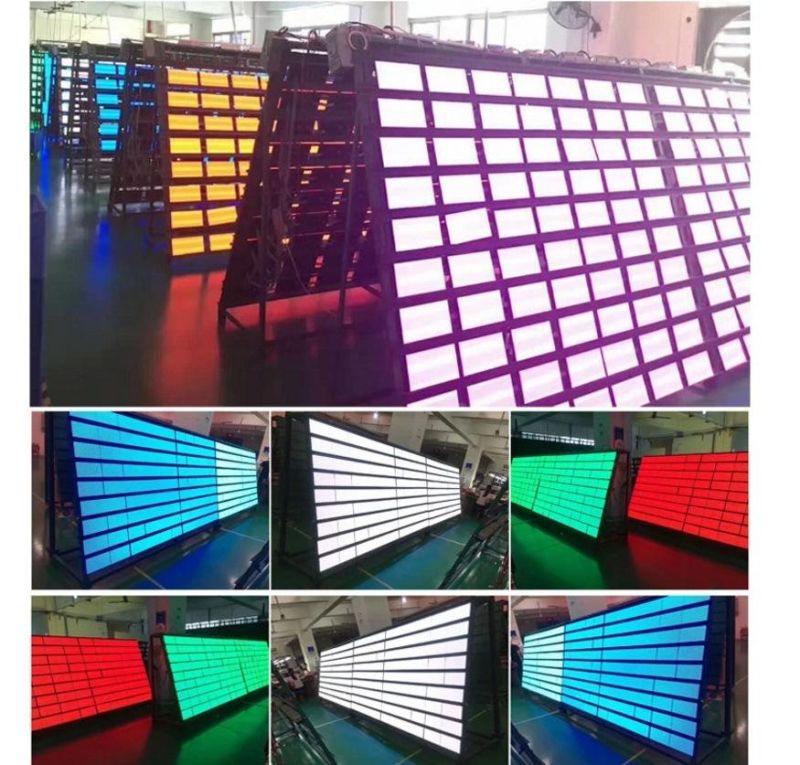

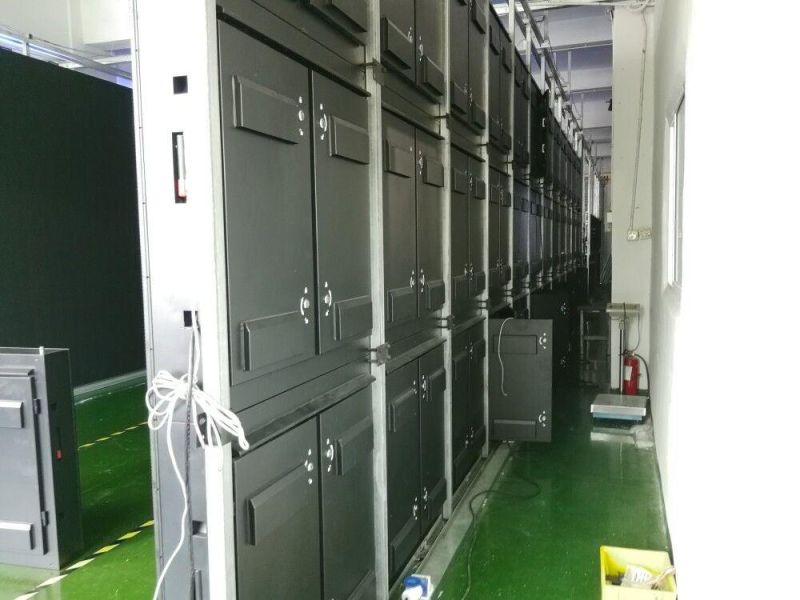

48 hours high brightness aging for the LED module and 72 hours aging  for finished displays,
in order to guarantee the final products steady performance and long MTBF.

Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard
Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard

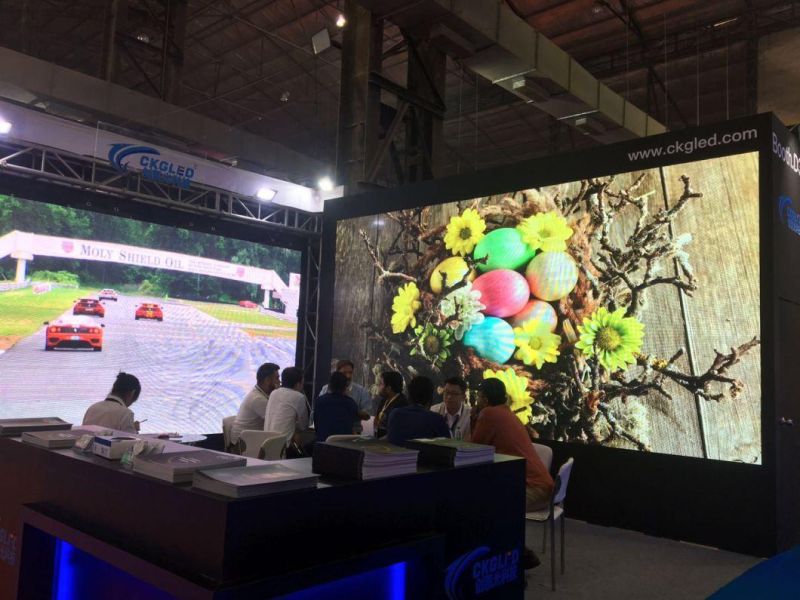

FOREIGN EXHIBITION:
Outdoor P6mm High Brightness Full Color Large LED Display Signage Billboard

Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
