Full Color Indoor LED Display Screen for Indoor Restaurant
Shenzhen Chuangkaiguang Co., Ltd.- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：2.6mm
Base Info
- Model NO.：2.6mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：148225 Dots,Sqm
- Scanning Mode：1,32 Scan
- System Operating Platform：WIN2000
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, UL, CCC, ETL
- LED Module Size：250mmx250mm
- LED Cabinet Size：500mmx500mm
- LED Cabinet Material：Die-Casting Aluminum
- Refresh Rate：3840Hz
- Screen Resolution：148225 Dots,Sqm
- Drive Method：1,32 Scan
- Maintenance：Front , Rear Access

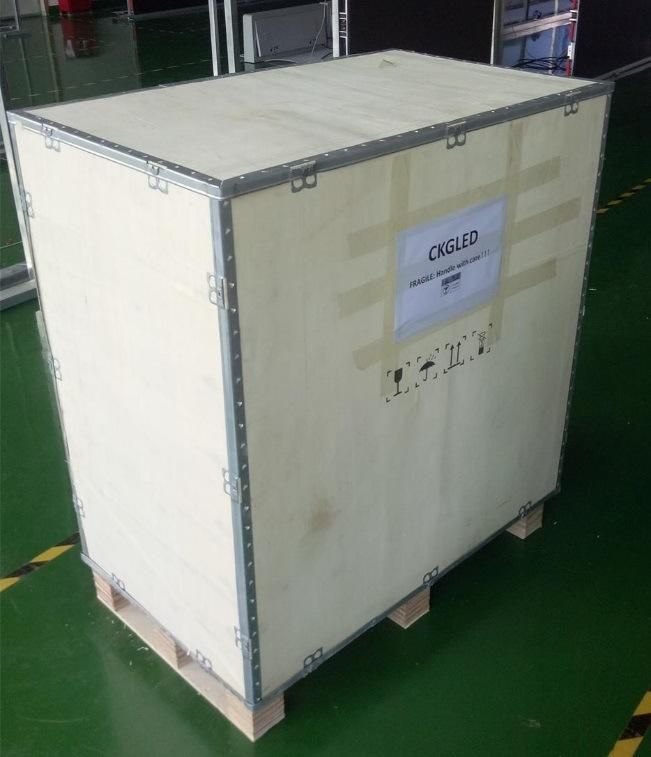

- Transport Package：Wooden Case
- Specification：4pcs,6pcs,8pcs cabinet in one case
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
Basic Info.
Model NO. 2.6mm Pixel Configuration 1R,1G,1B Pixel Density 148225 Dots/Sqm Scanning Mode 1/32 Scan System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL LED Module Size 250mmx250mm LED Cabinet Size 500mmx500mm LED Cabinet Material Die-Casting Aluminum Refresh Rate 3840Hz Screen Resolution 148225 Dots/Sqm Drive Method 1/32 Scan Maintenance Front / Rear Access Transport Package Wooden Case Specification 4pcs/6pcs/8pcs cabinet in one case Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/MonthProduct Description
Product features:New creative led cabinet design
Die-casting aluminum cabinet, stable and seamless splice
High refresh rate led screen images and videos
Application: Everywhere that you want to install, we will provide different project solution for you
Detailed data sheet:
| NO. | PARAMETERS | SPECIFICATIONS |
| 1 | Model | T2 |
| 2 | Pixel Pitch(mm) | 2.6 |
| 3 | LED | SMD2020 |
| 4 | Screen Resolution | 148225dots/sqm |
| 5 | Scan Method | 1/32 |
| 6 | Module size(mm) | 250*250 |
| 7 | Cabinet size(L*H*W mm) | 500*500 |
| 8 | Cabinet material | Die-casting Aluminum |
| 9 | Cabinet(Kg) | 9 |
| 10 | Viewing angle | H:160°/ V:160° |
| 11 | Grey Scale | 16bits |
| 12 | Refresh rate(Hz) | ≥3840 |
| 13 | Brightness(nits) | ≥1000 |
| 14 | Working Voltage(V) | AC 100~240V |
| 15 | AVE. power consumption (W/m2) | 260 |
| 16 | MAX. power consumption(W/m2) | 600 |
| 17 | IP grade | IP31 |
| 18 | controller | Novastar |
| 19 | Maintenance | Front service |
| 20 | Working humidity | 10~90%RH |
| 21 | Working temperature | -20ºC~50ºC |
| 22 | Certificate | RoHS / CE / CCC |

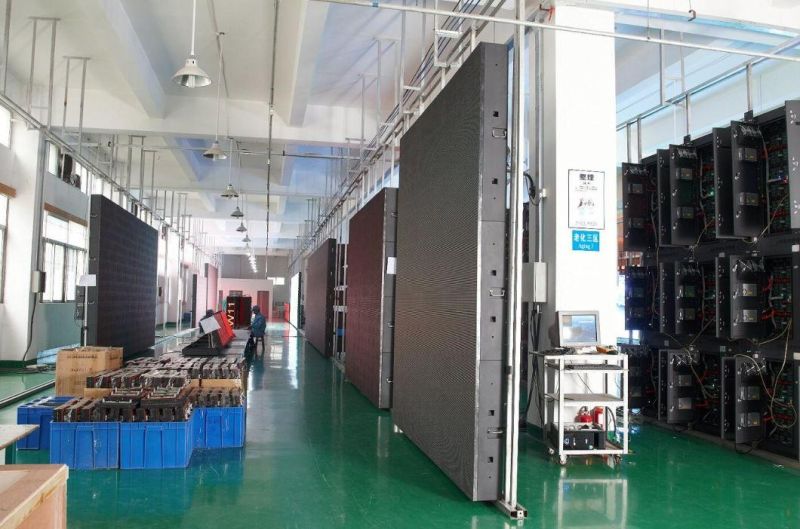

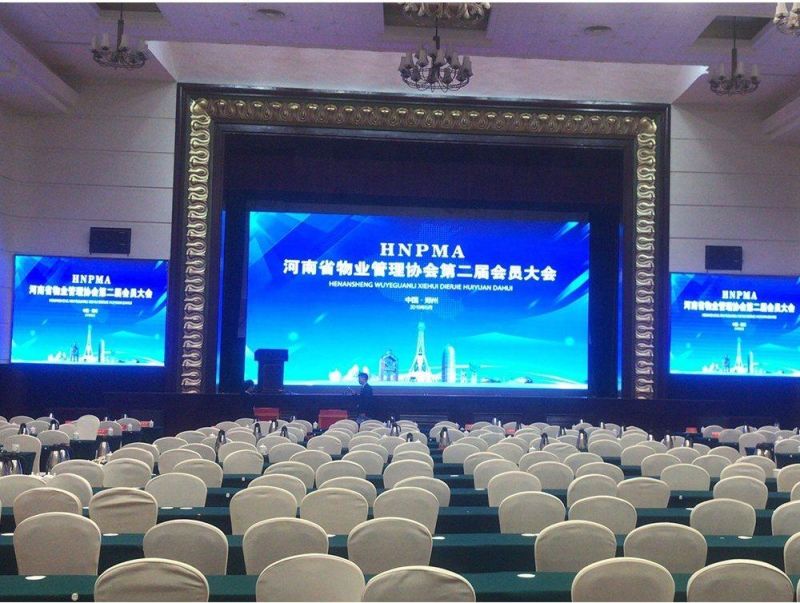

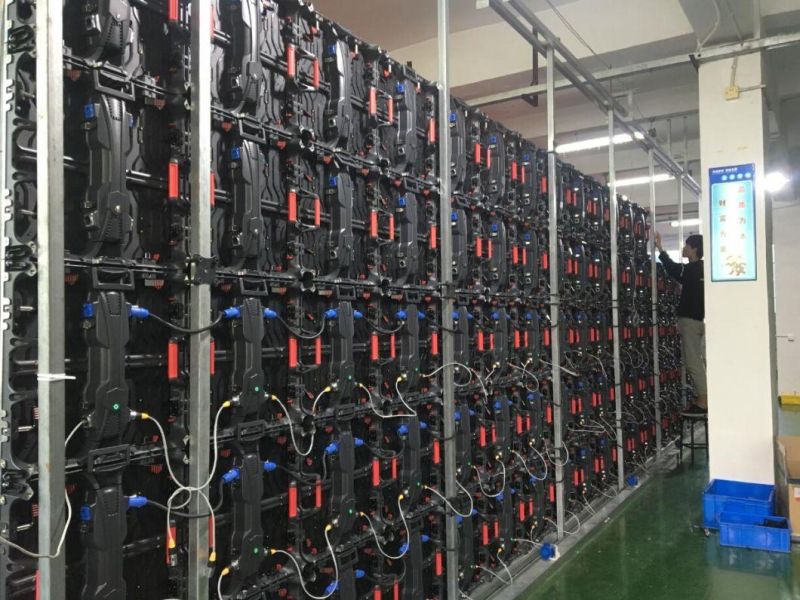

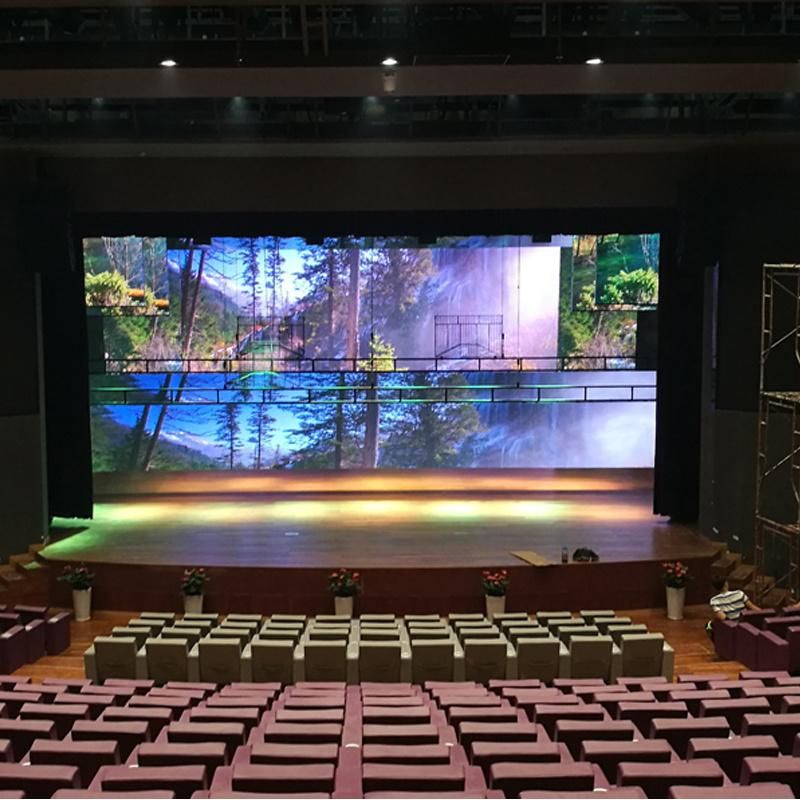

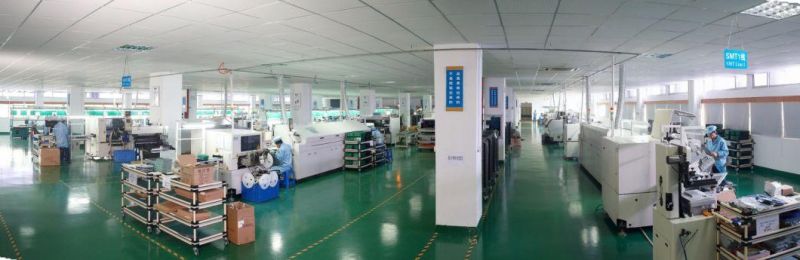

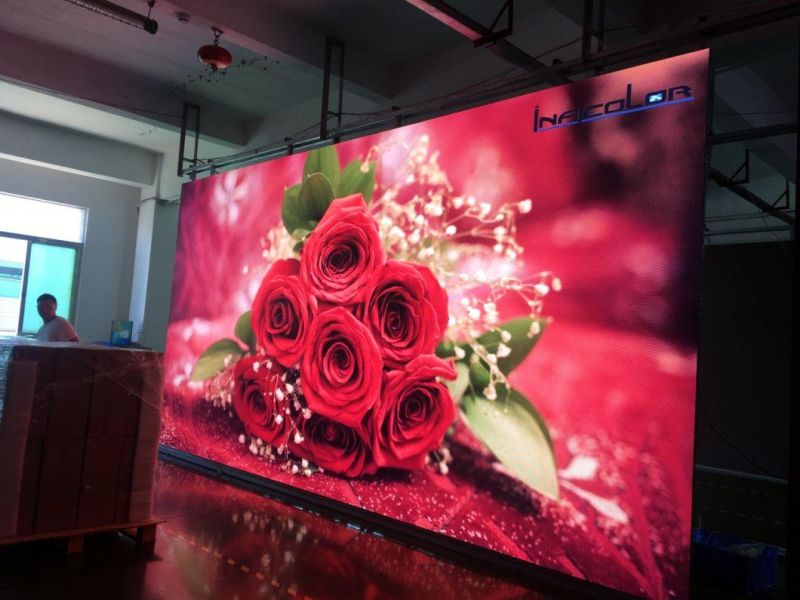

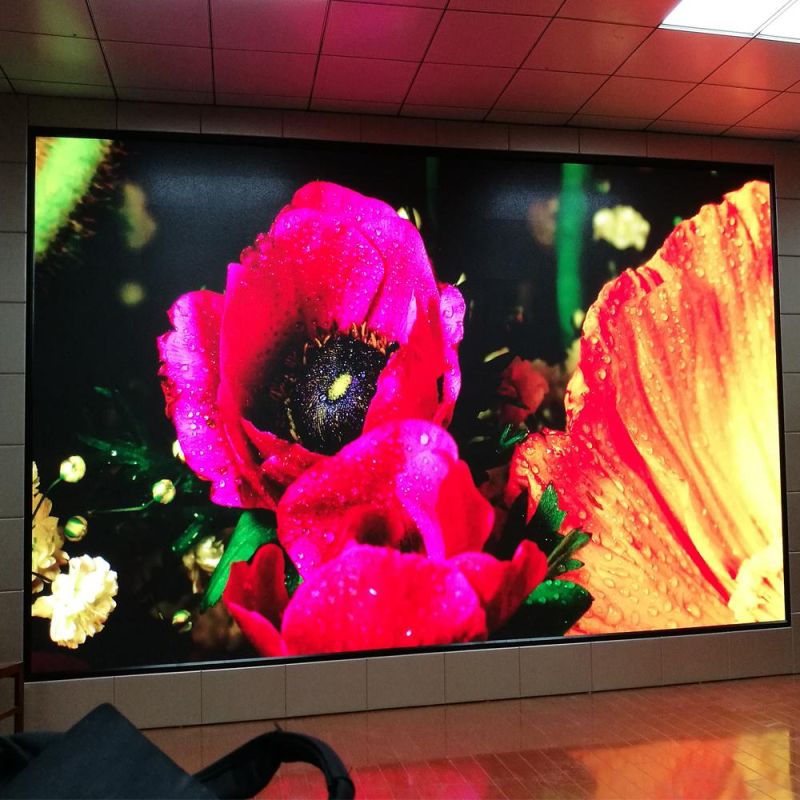

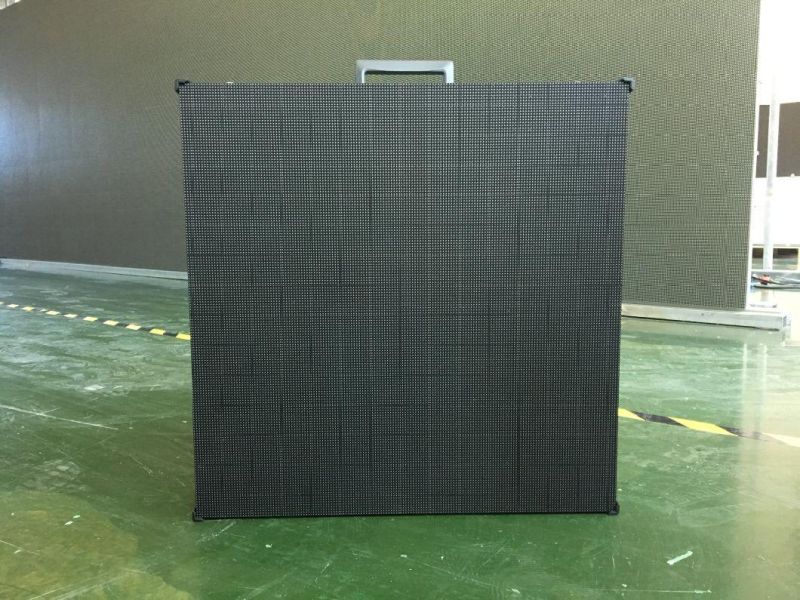

Product Photos:
