• Model NO.：3.91mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL, FCC
• Module Size：250X250mm
• Module Resolution：64X64dots
• Cabinet Size：500X500mm
• Cabinet Resolution：128X128dots
• Screen Brightness：1300nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce,FCC,RoHS,CCC,ETL,EMC
• Service：Rear Maintenance
• Controller：Novastar, Linsn
• Warranty：2 Years
• Delivery Time：15~20 Days
• Working Temperature (ºC)："-20 Degree- +40 Degree
• Operation Humidity (Rh)：10%-90%
• Grey Scale：16 Bits
• LED Type：SMD2020, SMD2121
• Transport Package：Plywood Case,Flight Case
• Specification：500x500mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 3.91mm System Operating Platform Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL, FCC Module Size 250X250mm Module Resolution 64X64dots Cabinet Size 500X500mm Cabinet Resolution 128X128dots Screen Brightness 1300nits Refresh Rate 1920Hz-3840Hz Compliance Ce/FCC/RoHS/CCC/ETL/EMC Service Rear Maintenance Controller Novastar/ Linsn Warranty 2 Years Delivery Time 15~20 Days Working Temperature (ºC) "-20 Degree- +40 Degree Operation Humidity (Rh) 10%-90% Grey Scale 16 Bits LED Type SMD2020/ SMD2121 Transport Package Plywood Case/Flight Case Specification 500x500mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

V SERIES PRODUCT FEATURES:


· Quiet fan design, excellent heat dissipation.,

· Sidelocks design for better consistency and seamless assembly.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

· High-performance metal plate cabinet, concise cable.

· The sealed-type back cover, effectively prevent wrong operations from the amateur.


PRODUCT SPECIFICATIONS:

NO.	Item	Parameters
1	Model	V03
2	Pixel Pitch (mm)	3.91
3	Physical Density (dot/m2)	65536
4	LED Configuration	1R1G1B
5	LED Type	SMD2020
6	Module Size (mm x mm)	250*250
7	Module Resolution (PX x PX)	64*64
8	Module Power Consumption (W)	26
9	Drive Mode	1/16 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	140
11	Vertical Viewing Angle (Deg)	140
12	Brightness (cd/m2)	1,200
13	Grey Scale	16
14	Refresh Rate (Hz)	≥1920
15	Cabinet Resolution (PX x PX)	128*128
16	Cabinet Max Power Consumption (W)	600
17	Cabinet Average Power Consumption (W)	250
18	Cabinet Size (mm x mm)	500*500
19	Cabinet Weight (Kg)	7kg
20	Cabinet Thickness (mm)	80mm
21	Cabinet Material	die-casting aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP33
26	Working Environment	Indoor
27	Working Temperature (ºC)	"-20°- +40°
28	Operation humidity (RH)	10%-90%
29	Certificates	CCC, CE,RoHS

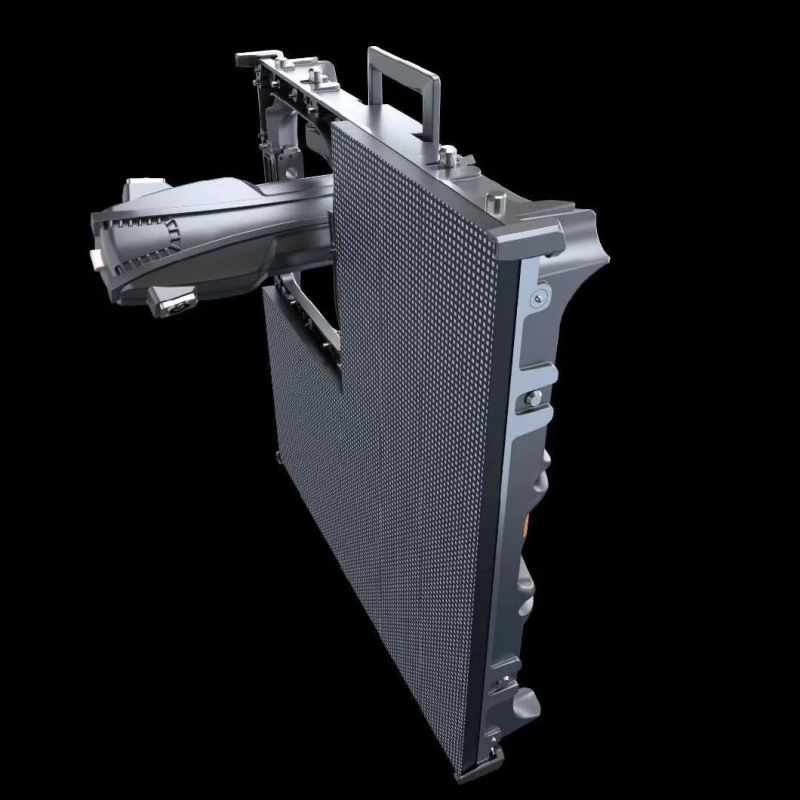

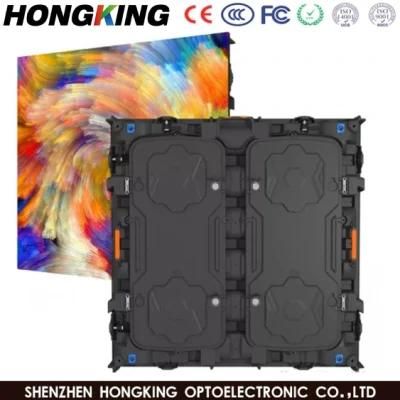

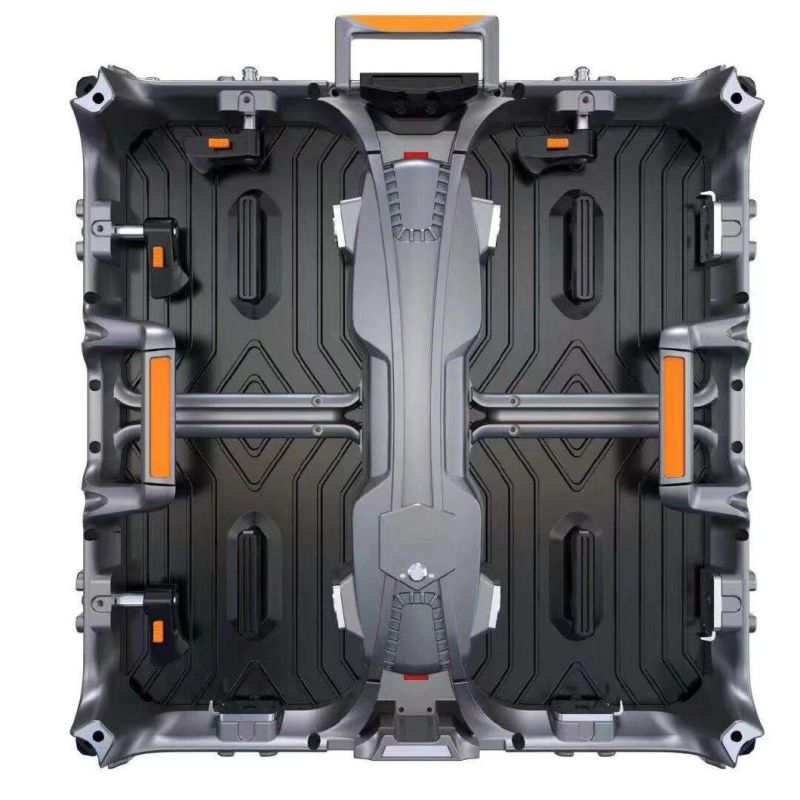

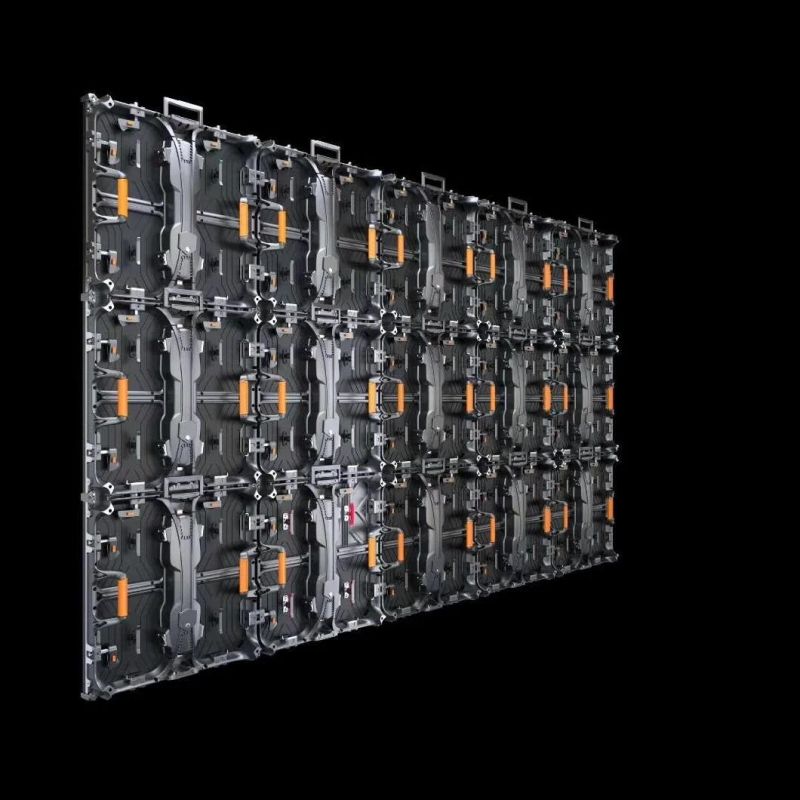

LED Panel photos :

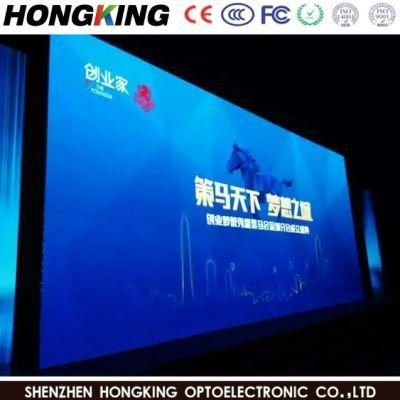

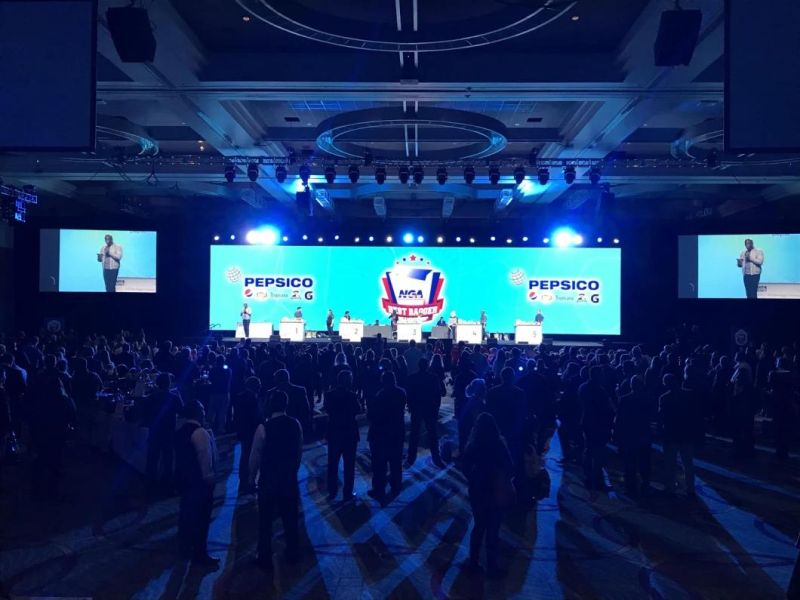

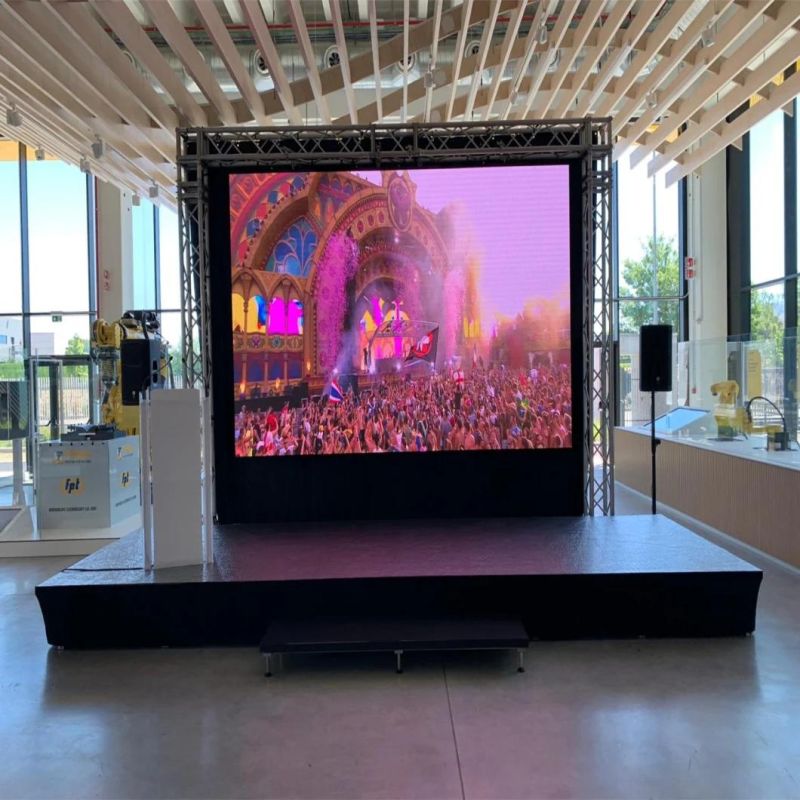

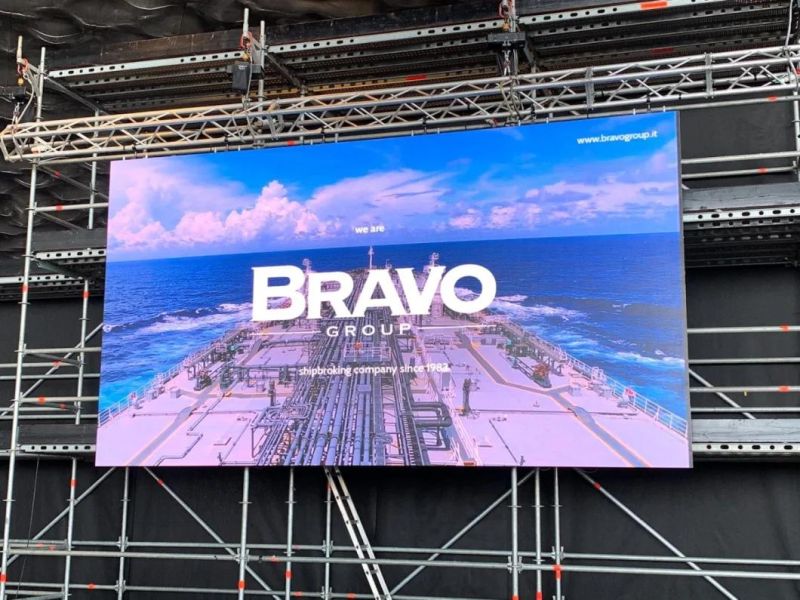

Used for event :
 :

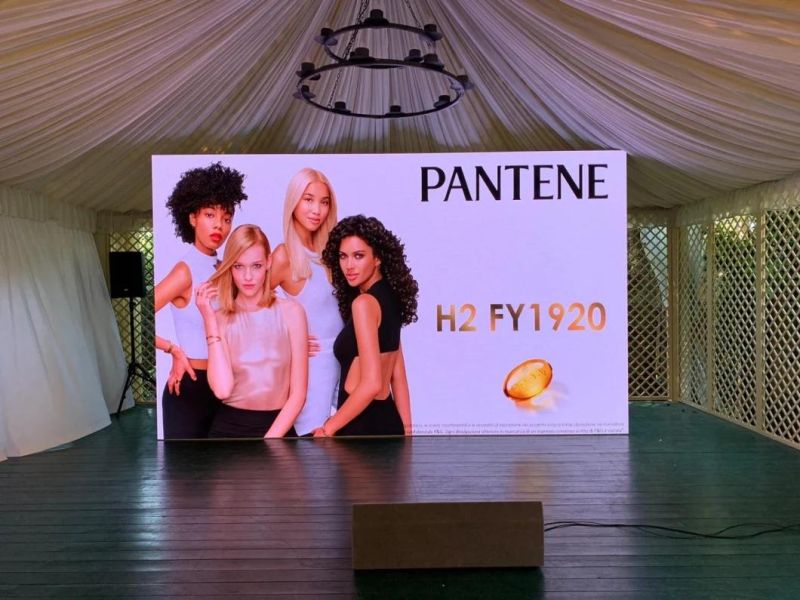

Used for Wedding  :

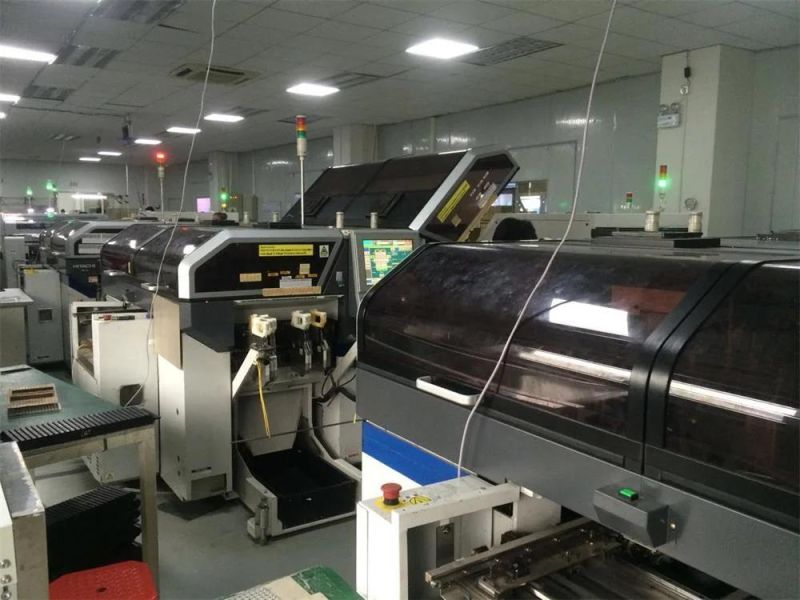

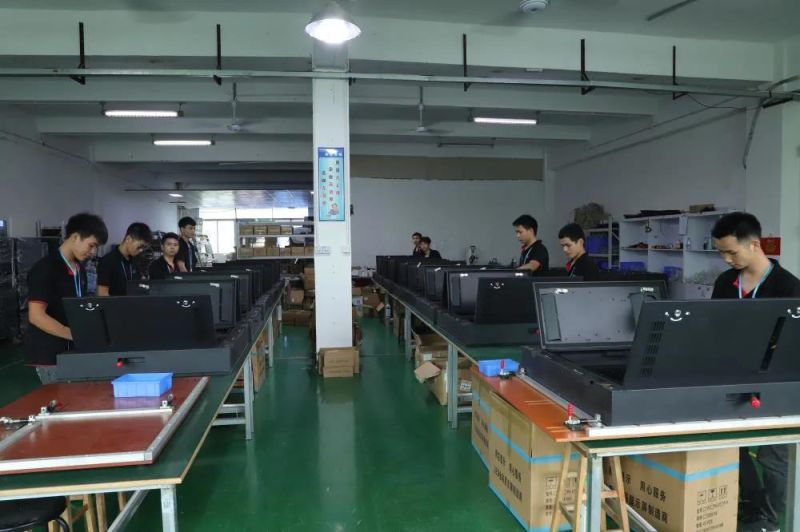

Factory photos :

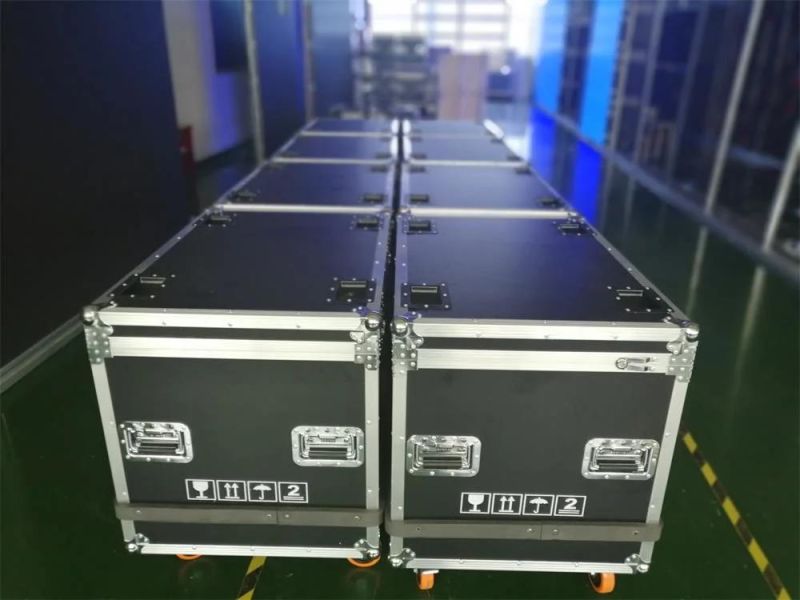

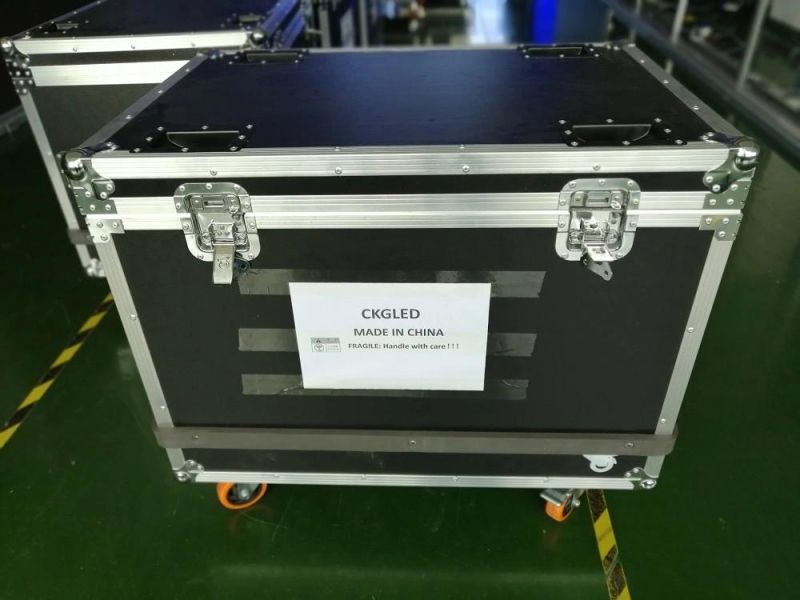

FLIGHT CASE PACKAGE:







SERVICE:

Pre-producing:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design


In Producing:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

After-service:

1. 2 years warranty
2. 1%  spares Will be freely provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
