• Model NO.：3mm
• System Operating Platform：WIN98
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250X250mm
• Module Resolution：64X64dots
• Cabinet Size：500X500dots
• Cabinet Resolution：128X128mm
• Screen Brightness：1200nits
• Refresh Rate：1920Hz-3840Hz
• Compliance：Ce,CCC,FCC,RoHS
• Maintenance：Front, Rear Service
• Controller：Nova, Linsn
• Frame Frequency：60Hz
• Transport Package：Wooden Case
• Specification：576x576mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. 3mm System Operating Platform WIN98 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL Module Size 250X250mm Module Resolution 64X64dots Cabinet Size 500X500dots Cabinet Resolution 128X128mm Screen Brightness 1200nits Refresh Rate 1920Hz-3840Hz Compliance Ce/CCC/FCC/RoHS Maintenance Front/ Rear Service Controller Nova/ Linsn Frame Frequency 60Hz Transport Package Wooden Case Specification 576x576mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

V SERIES PRODUCT FEATURES:

· Quiet fan design, excellent heat dissipation.,

· Sidelocks design for better consistency and seamless assembly.

· High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

· High-performance metal plate cabinet, concise cable.

· The sealed-type back cover, effectively prevent wrong operations from the amateur.




PRODUCT SPECIFICATIONS:

NO.	Item	Parameters
1	Model	V03
2	Pixel Pitch (mm)	3.91
3	Physical Density (dot/m2)	65536
4	LED Configuration	1R1G1B
5	LED Type	SMD2020
6	Module Size (mm x mm)	250x250
7	Module Resolution (PX x PX)	64*64
8	Module Power Consumption (W)	19
9	Drive Mode	1/32 Constant Current Drive
10	Horizontal Viewing Angle (Deg)	140
11	Vertical Viewing Angle (Deg)	140
12	Brightness (cd/m2)	1200
13	Grey Scale	14
14	Refresh Rate (Hz)	≥1920
15	Cabinet Resolution (PX x PX)	128*128
16	Cabinet Max Power Consumption (W)	530
17	Cabinet Average Power Consumption (W)	177
18	Cabinet Size (mm x mm)	500*500
19	Cabinet Weight (Kg)	7
20	Cabinet Thickness (mm)	88
21	Cabinet Material	die-casting aluminum
22	Color (M)	>16.7
23	Input Voltage (V)	AC 110V~220V+/-10%
24	Refresh Frame Frequency (Hz)	60
25	Protection Level	IP33
26	Working Environment	Indoor
27	Working Temperature (ºC)	"-20°- +40°
28	Operation humidity (RH)	10%-90%
29	Certificates	CCC, CE,RoHS

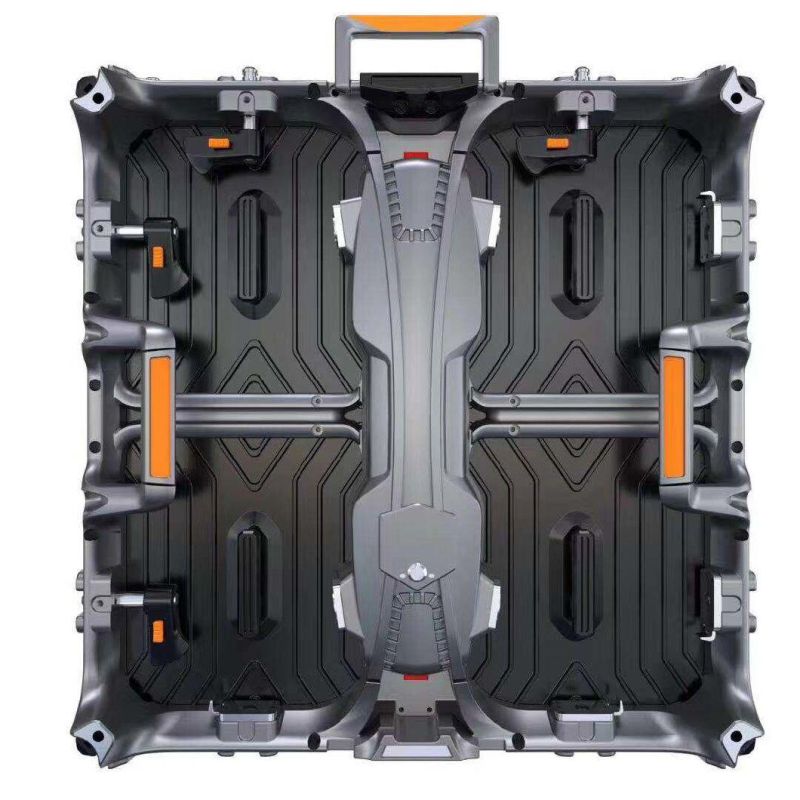

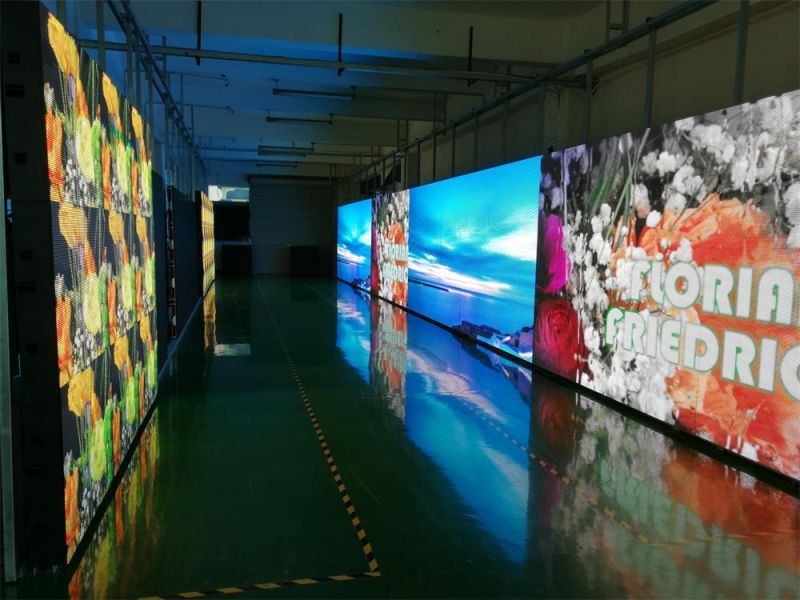

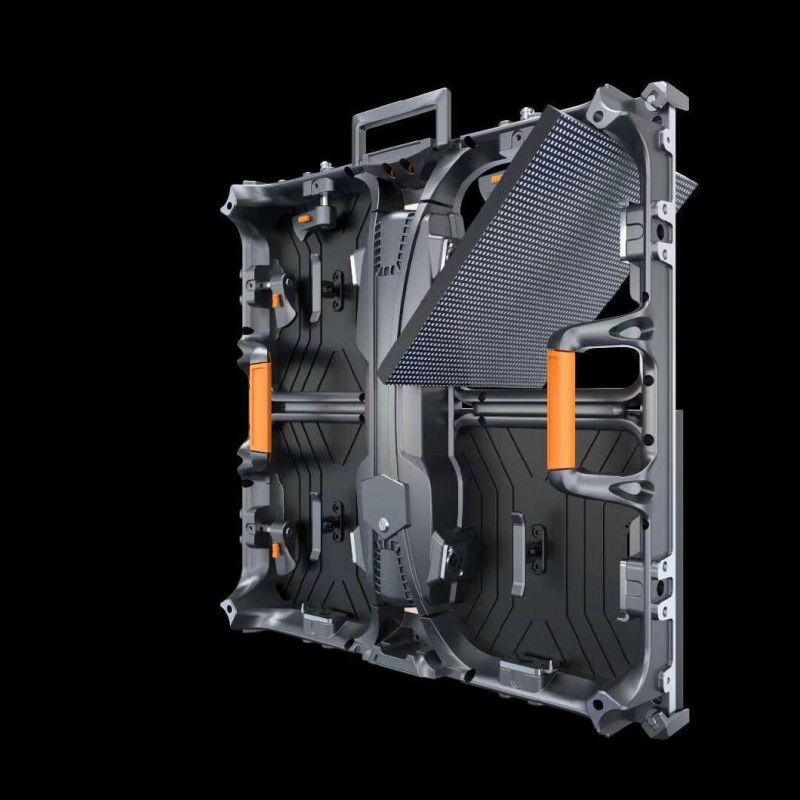

LED Display Panel photo:

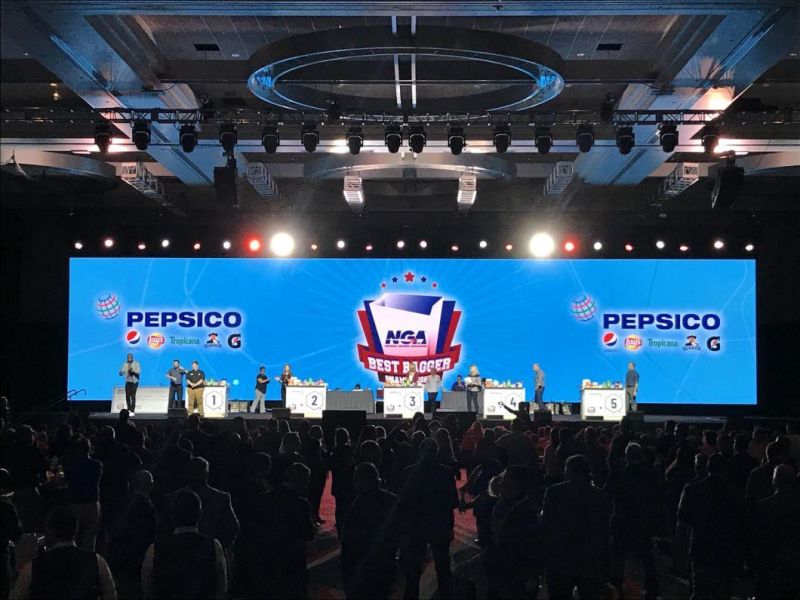

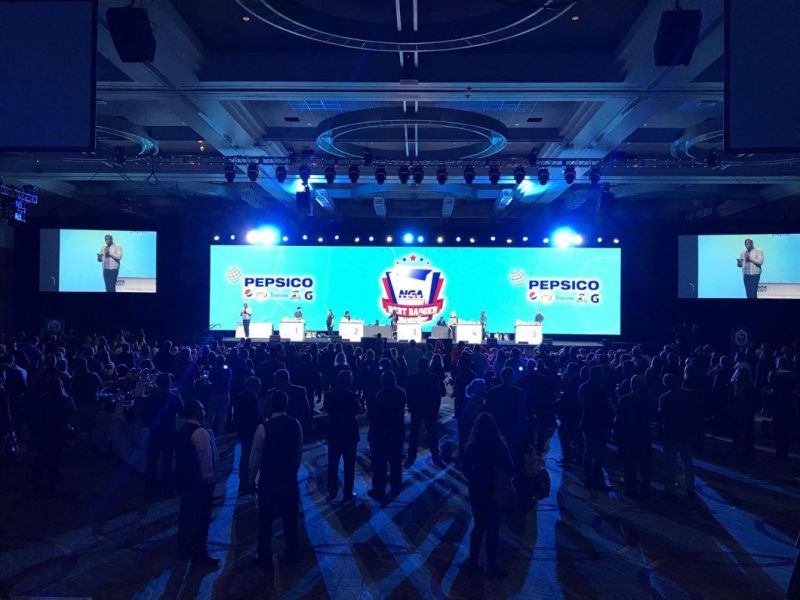

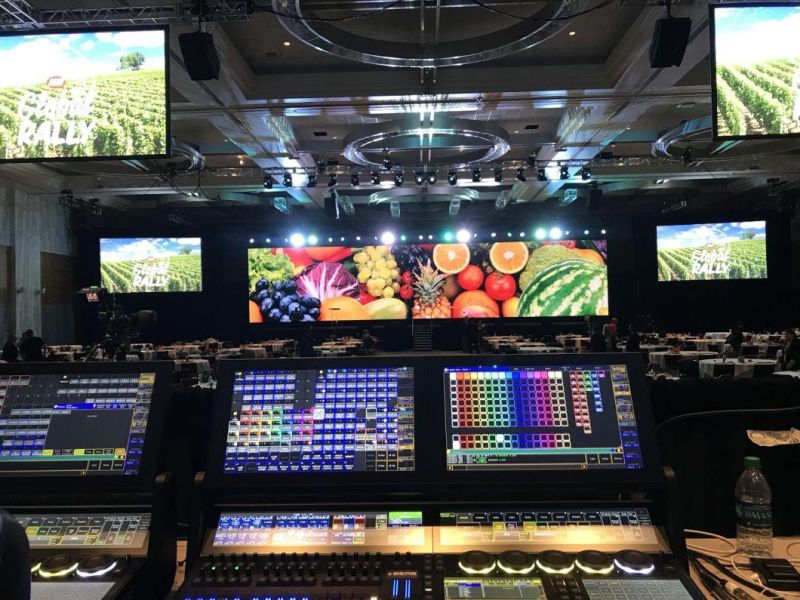

Used for indoor conference :

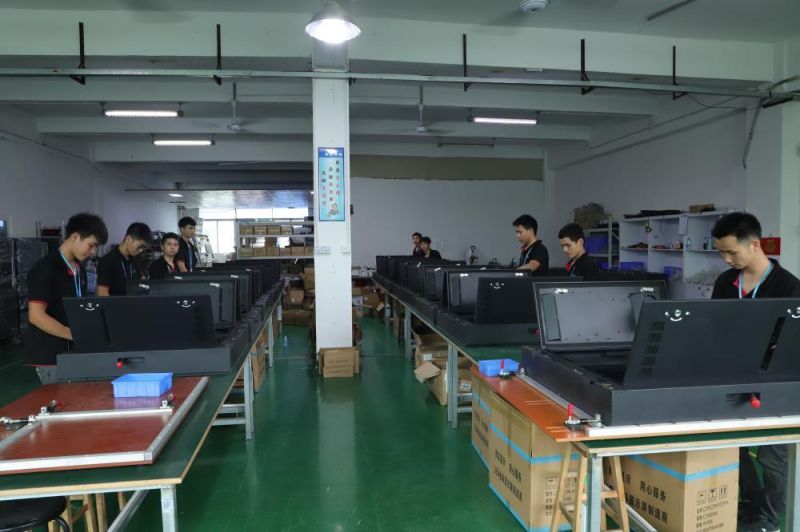

Factory photos :

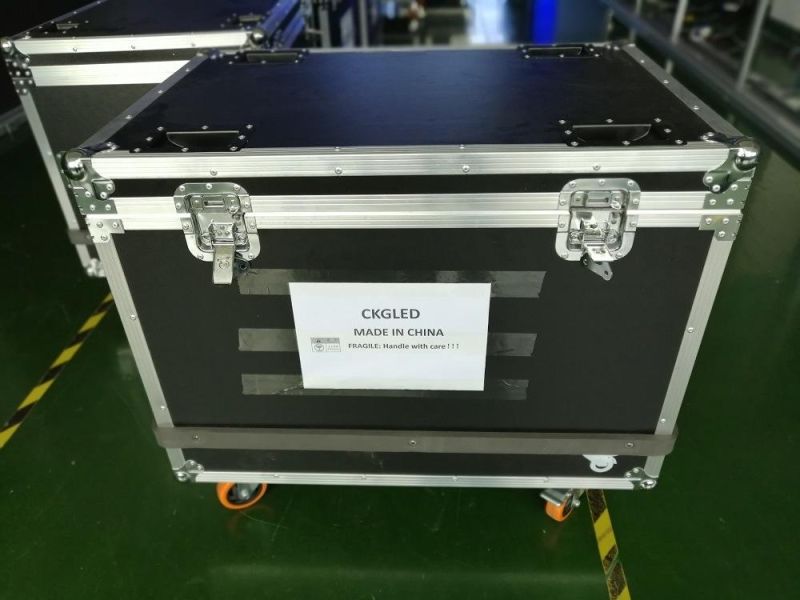

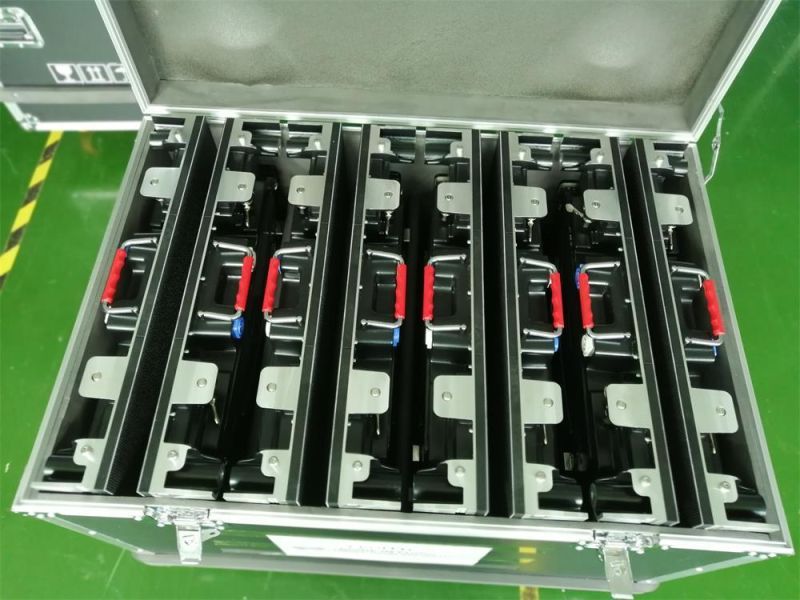

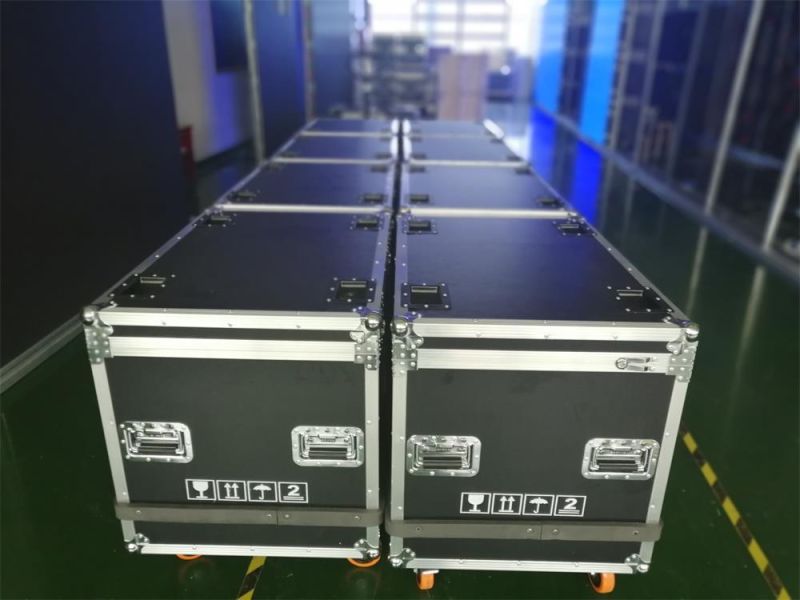

Flight case Package:

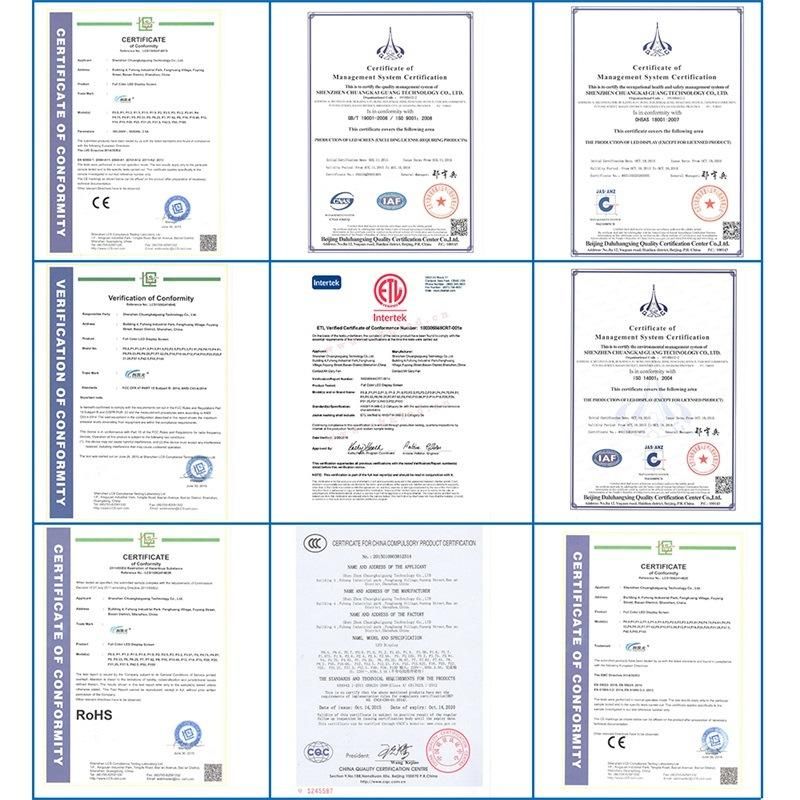

Certificates:
