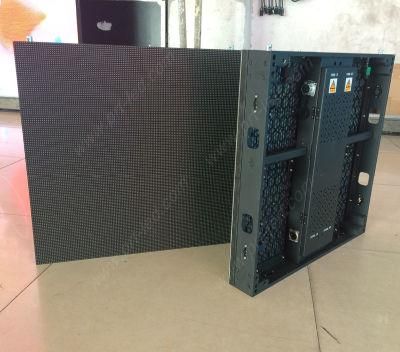

Slim Aluminum LED Display Panel with 500X500mm (Indoor P3.91)

PRT Optoelectronic Co., Ltd.
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：3.91mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：65746dots,Sq.M
  • Scanning Mode：1,16

Base Info

  • Model NO.：P3.91
  • System Operating Platform：WIN XP
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP43
  • Certification：CE, RoHS, CCC, FCC
  • LED Style：SMD2121 Black
  • Module Size：250X250mm
  • Module Resolution：104X104mm
  • Cabinet Material：Aluminum Profile
  • Transport Package：Flight Case or as Required
  • Specification：CE, FCC, Rohs
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：3000sqm,Month

Description

Pixel pitch3.91mmSize of module250mm x 250mmResolution of module64x64Size of cabinet500x500mmResolution of cabinet128 x 128dotsWeight of Cabinet6.8kgsBrightness>1200cd/sq.mDensity65746dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance3-50MMaximum power consumption<1200W/sq.mDriving method1/16 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature6500kWorking voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%MTBF>10,000 hoursFrame frequence≥60HzRefresh frequence>1920HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMSystems operating platformWINDOWS(WINXP,WIN7/8), and interfaces for secondary development
