• Model NO.：p10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：More Than 8000CD,M2
• IP Grade：IP65
• Warranty Time：5years
• Pixcel Pitch：10mm
• Horizontal Viewing Angle：More Than 110degree
• Display Contents：TV, S-Video, DVI, AVI, MOV etc
• Transport Package：Anti-Shaking Wooden Case or Air Flight Case
• Specification：CE, ROSH, SGS
• Trademark：Foxgolden
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：6, 000, 000sqm,Month

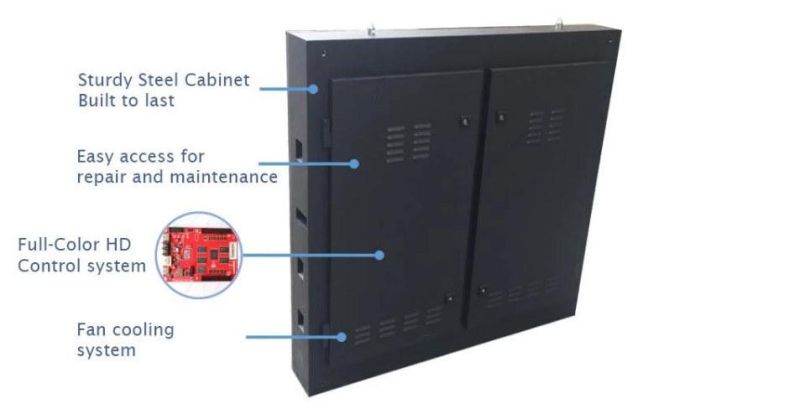

Technical  parameterUnit  moduleModule  size320*160mmPixel  pitch 10mmPixel  density10000dots/m2Pixel  configuration1R1G1BLed  specificationΦ 5ellipsePixel  resolutionW: 16dots*H: 16dotsCabinetDimension960mm*960mm*150mm Quantities  of  module18pcsPower  supply4pcsThermal  dischargeFan*2pcsTotal  weight55kgBest  viewing  angle15-300mTemperatureStorage:   -35degree~+85degreeWorking:   -20degree~+80degreeThickness11cm  can  adjustableRemarks:   cabinet  size  can  changed,   upon  project  need.PowerWorking  voltageAC220V/110V± 10%Average  power  consumption400WMax.   Power  consumption≤ 1000W/sqmCurrent≤ 20mA(single  LED)Control  systemCPUPentium4  or  aboveOperating  systemWIN98/2000/NT/XPControl  methodSynchronizationMain  technical  parameterDriving  deviceStatic  scanningDrive  typeConstant  Current  driver  ICRefresh  frequency≥ 400HzGrey  scale/colors256  levels  of  each  color(R/G/B)/16.7M  colorBrightness  of  white  balanceMore  than  8000cd/sqmBrightness  adjustment256  levels  of  each  color(R/G/B)by  softwareOperating  ambient  humidity10%--95%Video  signal PAL/NTSCControl  systemDVI  display  card+full  color  controller  cardMTBF≥ 10, 000hoursLife  span≥ 100, 000hoursFlatnessTolerance  of  interpixel  ≤ 0.3mmTolerance  of  modules  clearance≤ 0.6mmPower  switchAutomatic  switchDisplay  mode1024*768Communication  distanceNetwork  calbe: 100m,   Multi-model:   500m,   Single-model  fiber: 20kmSoftwareLED  media  player
