Indoor Full Color Advertising LED Video Wall P3.91, P4.81

PRT Optoelectronic Co., Ltd.
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：3.91mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：65746dots,Sq.M
  • Scanning Mode：1,16 Scan

Base Info

  • Model NO.：P3.91mm
  • System Operating Platform：Win XP,Win 2000,Win7,8
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP43
  • Certification：CE, RoHS, CCC, FCC
  • LED Style：SMD2121 Black
  • Module Size：250X250mm
  • Module Resolution：64X64mm
  • Cabinet Size：500X1000mm,500X500mm
  • Cabinet Material：Die-Casting Aluminum
  • Transport Package：Flight Case or as Required
  • Specification：CE, FCC, Rohs
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：3000sqm,Month

Description

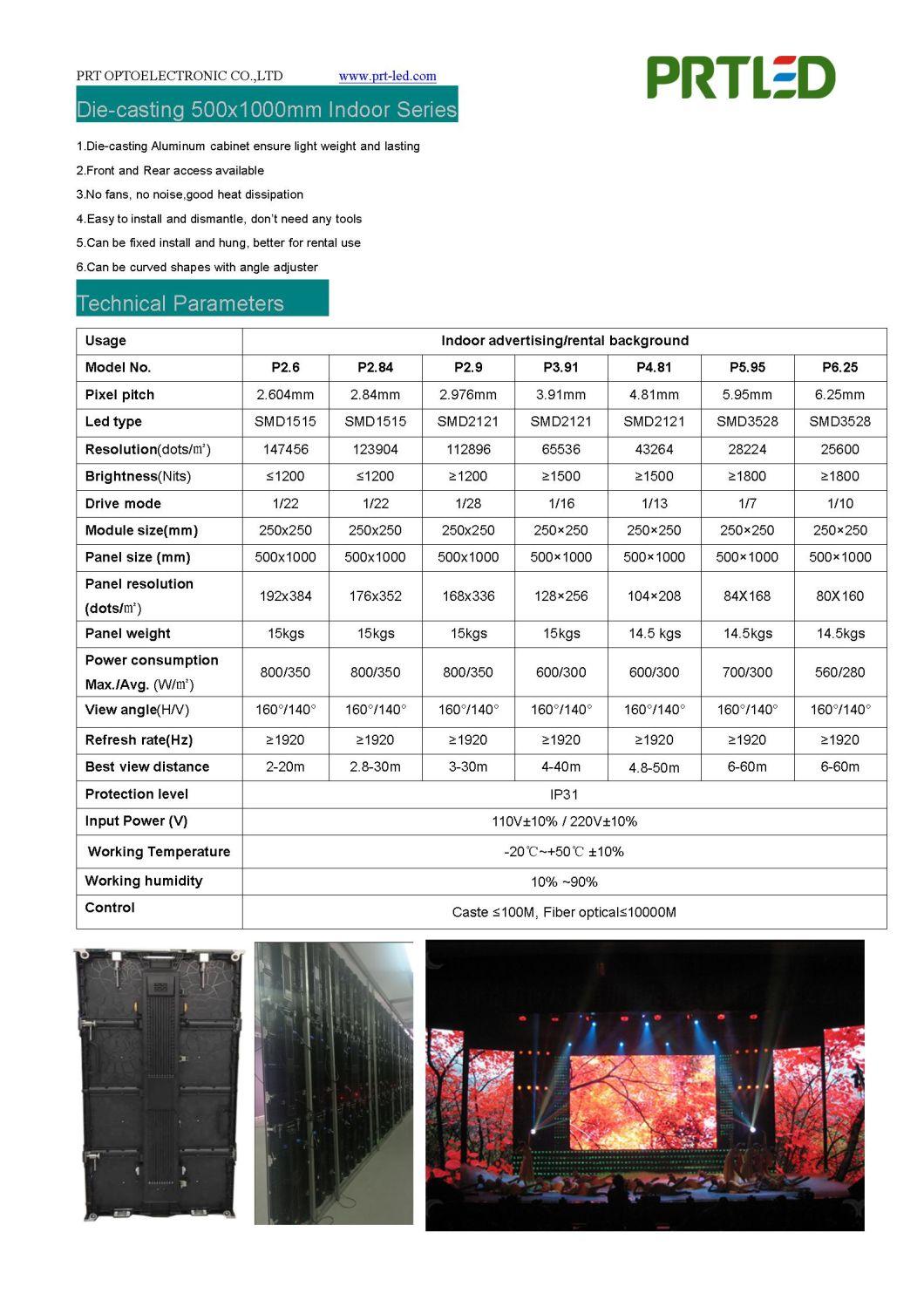

P3.91 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch3.91mmSize of module250mm*250mmResolution of module64x64Size of cabinet500x500mmx75mm or 500mm x 1000mm x 75mmResolution of cabinet128x128dots or 128x256dotsWeight of Cabinet8kgs or 13.5kgsBrightness>1600cd/sq.mDensity65746dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance3-50MMaximum power consumption<1200W/sq.mDriving method1/16 scanControl methodSynchronizationGray scale65536Color temperature6500kWorking voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%MTBF>10,000 hoursFrame frequence50/60HzRefresh frequence>1920HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMSystems operating platformWINDOWS(WINXP,WIN7/8), and interfaces for secondary development
Indoor Full Color Advertising LED Video Wall P3.91, P4.81

Indoor Full Color Advertising LED Video Wall P3.91, P4.81
 FYI: we would like to know more details before offering you the best quotation:
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. Any special requests such as video processor, hanging bar, flight case for package.
