• Model NO.：SY-P5-8S
• Pixel Density：40000 Pixels,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, FCC
• Warranty：Two Years Warranty After Shipping
• Transport Package：Wooden Box or Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

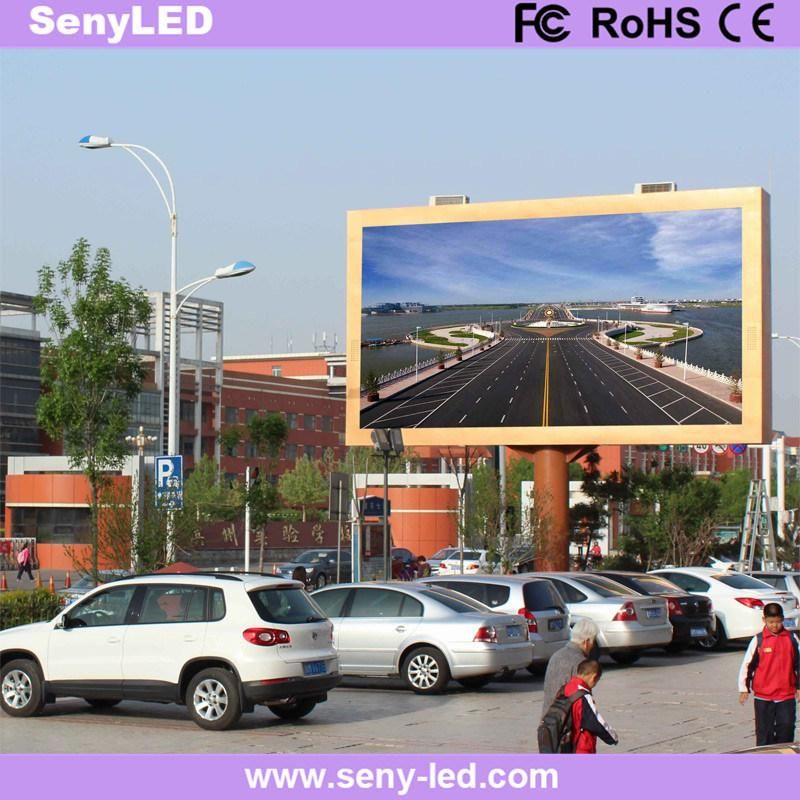

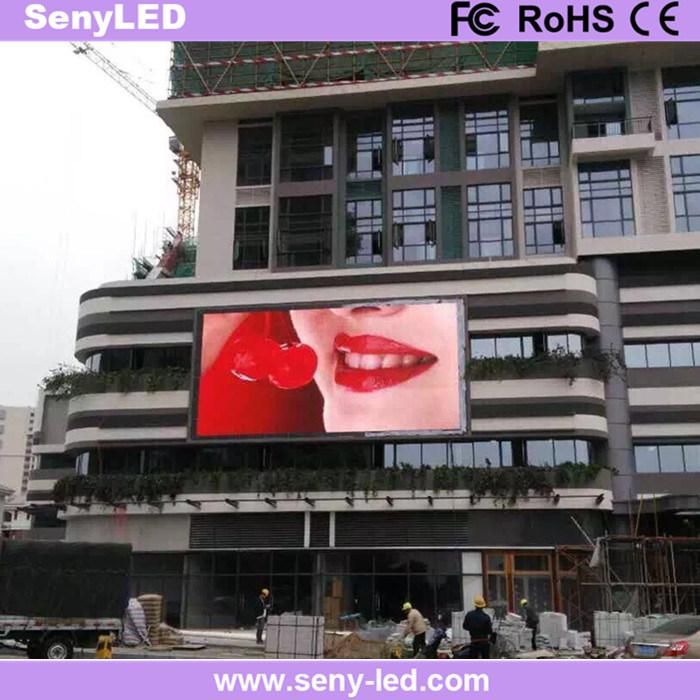

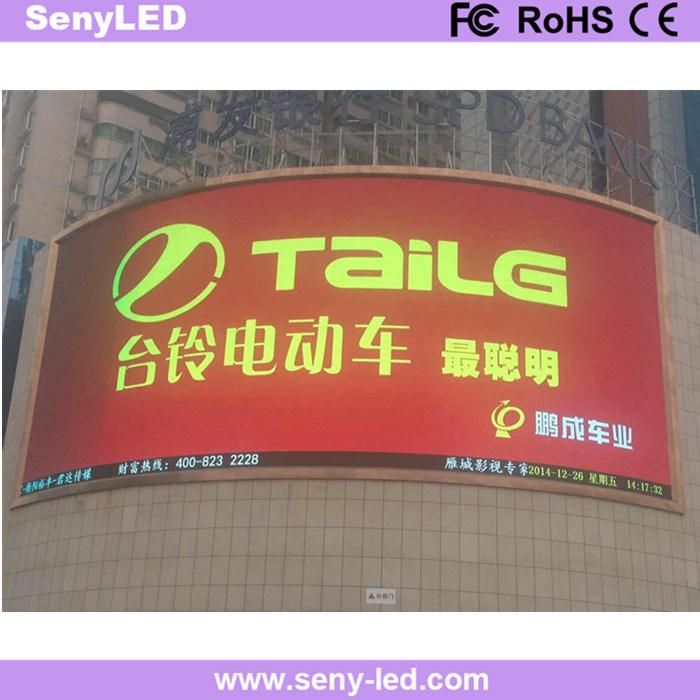

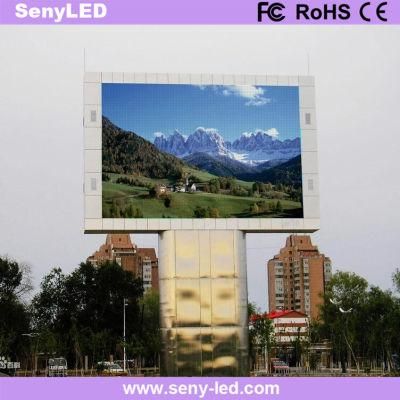

Outdoor P5 Energy Saving Full Color Video Panel LED ScreenS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDSMD2727600-800mcd620-625nm140º/120º3Green LEDSMD27271800-2000mcd520-525nm140º/120º4Blue LEDSMD2727400-600mcd470-475nm140º/120ºModule Specification1Pixel Pitch5mm2Pixel Configuration1R1G1B3Module Resolution32 x 32 pixels4Module Pixles1024 pixels5Module Size160mm X 160mmCabinet Specification1Cabinet Size(W X H X D)640mm x 640mm x 142mm2Cabinet Resolution(dot)128 x 128 pixels3Module Quanity (pcs)16pcs4Cabinet Pixels16384 pixels5Pixel Density40000 pixels/m26Cabinet MaterialsStandard waterproof cabinet for fix installationWhole Screen Specification1Screen Brightness≥6500cd/m22Driving Method1/8 scan3Best Viewing Distance5m - 40m4Max. Power Consumption1500W/m25Average Power Consumption600W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥1200Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleIP6517Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Environment Temperature & HumidityTemperature:-20 Celsius~+60 CelsiusHumidity:10%~90% RH20Control ModeSynchronous display with control PC by DVI21Control SystemDVI video card + full color control card + fiber system( optional)22Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.23InterfaceStandard Ethernet24Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m25Power Supply BrandG-energy, MeanWell, Chuanglian or as you requiredProject cases:





Packaging and delivery:
