• Model NO.：SY-P10-4S
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, FCC
• Warranty：Two Years Warranty After Shipping
• Transport Package：Wooden Box or Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：5000sqm,Month

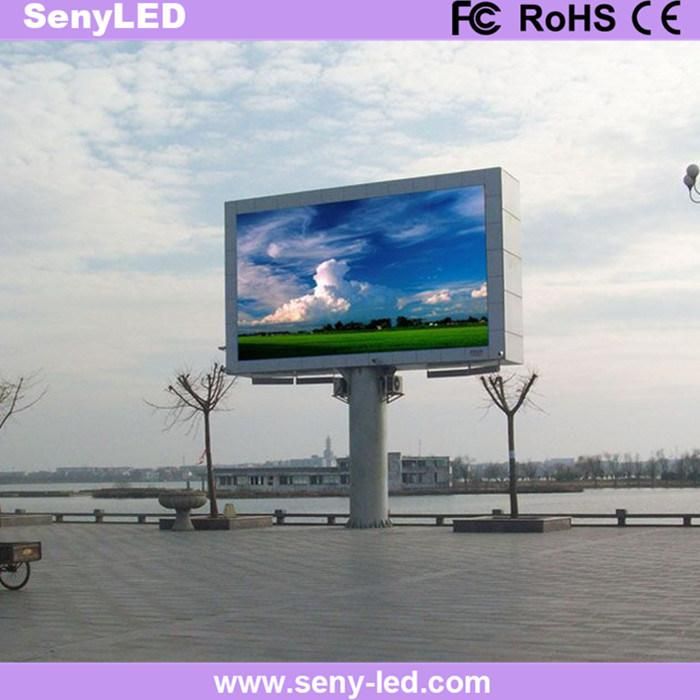

DIP Outdoor Full Color LED Advertising BillboardS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDDIP346600-800mcd620-625nm110º/50º3Green LEDDIP3461800-2000mcd520-525nm110º/50º4Blue LEDDIP346400-600mcd470-475nm110º/50ºModule Specification1Pixel Pitch10mm2Pixel Configuration1R1G1B3Module Resolution16 x 16 pixels4Module Pixles256 pixels5Module Size160mm X 160mmCabinet Specification1Cabinet Size(W X H X D)960mm x 960mm x 150mm2Cabinet Resolution(dot)96 x 96 pixels3Module Quanity (pcs)36pcs4Cabinet Pixels9216 pixels5Pixel Density10000 pixels/m26Cabinet MaterialsStandard waterproof cabinet for fix installationWhole Screen Specification1Display DimensionWidth 15.36 meters x Height 7.68 meters, total 117.97 square meters2Whole Screen ResolutionWidth 1536 x Height 768 pixel dots3Cabinet QuantityWidth 16 x Height 8, total 128pcs cabinets4Screen Brightness≥7000cd/m25Driving Method1/4 scan6Best Viewing Distance10m - 200m7Max. Power Consumption750W/m28Average Power Consumption300W/m29Gray Level8bits input, 4096 levels(212)10Display Color16M11Frame Frequency≥60Hz12Refresh Frequency≥1200Hz13Uninterrupted Working Hours≥72 hours14Screen Life-span≥100,000 hours15MTBF≥5,000 hours16Discrete Blind Spot Rate<1/1000017Continuous Blind Spot RateNone18Blind Spot Rate<1/1000019Protective ScaleIP6520Screen Plainness<±1mm21Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz22Environment Temperature & HumidityTemperature:-20 Celsius~+60 CelsiusHumidity:10%~90% RH23Control ModeSynchronous display with control PC by DVI24Control SystemDVI video card + full color control card + fiber system( optional)25Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.26InterfaceStandard Ethernet27Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m28CertificationCE-EMC, CE-LVD, FCC, RoHSProject cases:




Packaging and delivery:


Why us:
1. Price advantage: We have the best competitive price at the market, also have the same even better quality.
2. Quality advantage: From material to finished product, from design to produce, we control all steps
3. Service advantage: Better service at same situation, better cooperation at same service.
4. We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.
