• Model NO.：CKG-FS6
• Pixel Density：10000 dot , m²
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：192*192mm
• Module Resolution：32X32dots
• Cabinet Size：768X768mm
• Cabinet Resolution：128X128dots
• Screen Brightness：7500nits
• Protection Grade：IP65
• Compliance：Ce FCC ETL RoHS
• Transport Package：Plywooden Case
• Specification：960x960mm
• Trademark：CKGLED
• Origin：China
• Production Capacity：6000sqm,Month

Pixel pitch10mmPixel configurationDIP 1R1G1BModule size160mm*160mmPixel density10000 dots/sqmModule pixel16dots*16dotsModule resolution256dotsDriving method1/4 constant driving

Cabinet specifications:Cabinet size960mm*960mm*150mmModule Qty36pcsCabinet resolution96dots*96dotsCabinet pixel9216dotsCabinet weight50kg power consumption(w/sqm)AVE.202 / MAX.599
Screen parameters:No.ParameterSpecification1Pixel Pitch10mm2Pixel Density10000pix/sqm3LED TypeDIP3464Viewing Angle(H)120°,(V)60°5Brightness ≥7500cd/sqm6Drive Method1/4 scanning7Driving ICMBI51248Color Depth40969Refresh Rate≥1920 Hz10Frame Rate≥60Hz11Brightness AdjustmentManual control by software/Auto control12Cabinet Type and MaterialSteel Iron13Cabinet Weight≤60kg/sqm14VoltageAC 220/110V±10%,50Hz15Avg. Power Consumption 220W/sqm16Max. Power Consumption650W/sqm17Assembly precision between PCB≤1 mm18Service AccessRear maintenance19Protection GradeFront IP65,Rear IP5420Operating Temp/Humidity-30ºC~60ºC, 10~95%RH21Control modesynchronization with PC22Operating SystemWINDOWS(98/2000/XP/Vista)24Data TransmissionUnshielded twisted- pair net line transmission distance 100m, max transmission distance 130m; Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10km25Storage Temp/Humidity-40ºC~60ºC, 10~95%RH26Input Signal FormatVGA, DVI, RGB HV , PbPr (HDTV),Composite ,S-Video ,TV27MTBF≥10000hours28Lifetime(Normal Temp)≥100,000Hours

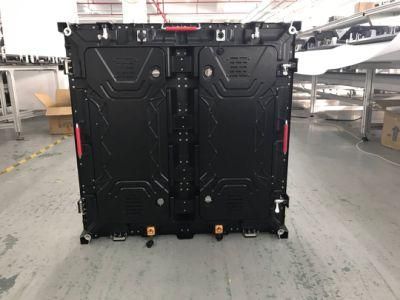

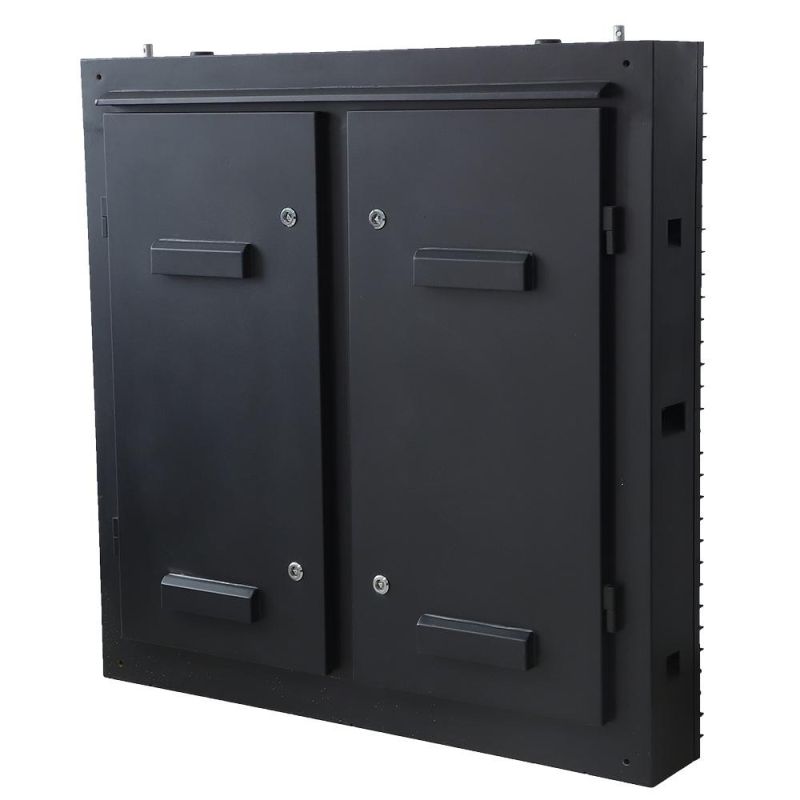

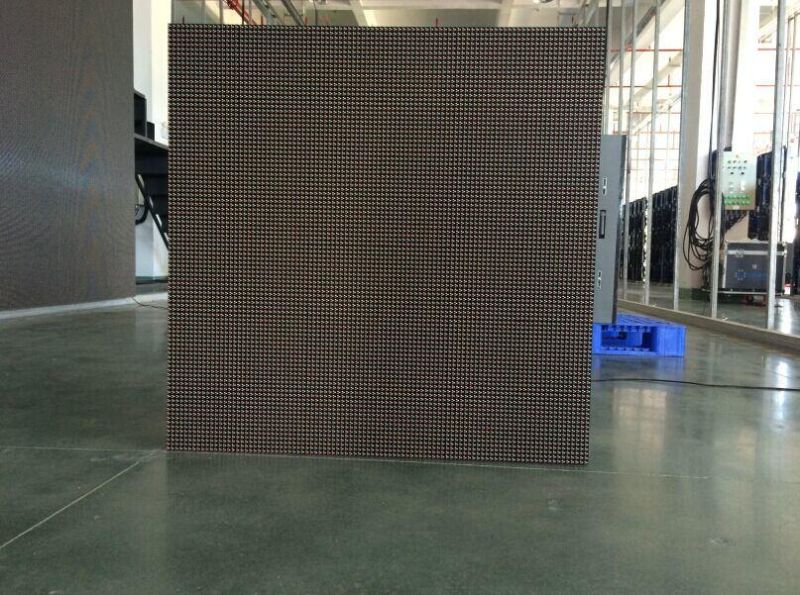

PRODUCT PHOTOS:

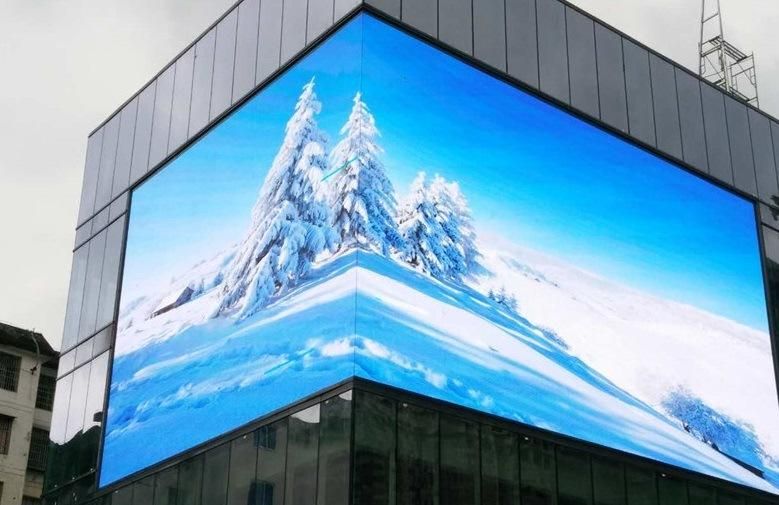

Project cases

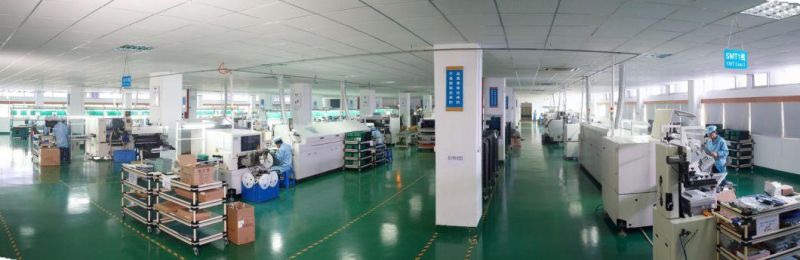

Workshop



Certificates




Package




Service

Pre-sales
Provide details about the production procedure
Assign engineers installation and testing

Sales

Customized solution designs
Product rendering and steel structure drawing
CKGLED'S successful project  cases and visit our production and R&D department


After-sales service

Two-year warranty with lifelong maintenance .

Free-guarantee repair including labor and material :free repair service during warranty period and resonable charge for spare parts and maintaining service .

After quality warranty period , we will not exampt our responsibilities for products owned defects .

Responding time : upon  receiving user's notification ,  we ensure 24  hours after-sales technical support .

Spare parts : necessary spare parts are provided together with products to customers .

Free technical training : intergrative or normaltive training is available  for free to customers by out technical  personnel  to ensure  they are skilled in regular  .

Telephone investigation :    Our after-sales team will phone the user every month during the warranty period to follow up the working condition of products , and to discover and solve problems , if necessary  .


Software upgrade  : Lifelong maintenance of controlling system ,  incessant  improvement of system functions and contiuous software upgrades .


Site instruction service of  installation is available .

Free on-site service for  related issues .
