• Model NO.：BD Series
• Pixel Configuration：1R,1G,1B
• Display Type：LED Video Display
• Application：Stage Performance, Advertising
• IP Rating：IP65
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250X250mm
• Cabinet Size：500X1000mm
• Cabinet Material：Aluminum
• Cabinet Weight：20 Kg,Panel
• Service Method：Front
• Brightness：2,000 - 4,500 Nits
• Average Power Consumption：300 W,M2
• Max. Power Consumption：600 W,M2
• Life Span：100,000hrs
• Warranty：2-5 Years
• Transport Package：Wooden Case,Flight Case
• Trademark：Bako Vision
• Origin：China
• HS Code：8531200000
• Production Capacity：8, 000 M2,Month

Basic Info.

Model NO. BD Series Pixel Configuration 1R,1G,1B Display Type LED Video Display Application Stage Performance, Advertising IP Rating IP65 Certification CE, RoHS, UL, CCC, ETL Module Size 250X250mm Cabinet Size 500X1000mm Cabinet Material Aluminum Cabinet Weight 20 Kg/Panel Service Method Front Brightness 2,000 - 4,500 Nits Average Power Consumption 300 W/M2 Max. Power Consumption 600 W/M2 Life Span 100,000hrs Warranty 2-5 Years Transport Package Wooden Case/Flight Case Trademark Bako Vision Origin China HS Code 8531200000 Production Capacity 8, 000 M2/Month

Product Description

IP65 Interactive Indoor Outdoor LED Dance Floor Screen

BD Series
LED Dance Floor,
Height Adjustable


Rental LED Screens Features

Quick and Easy Installation
Ultra Wide Viewing Angle
Adapt to Multifarious Ground
IP65 Waterproof





Dance LED Display Descriptions

Standard Modular Design
Standard module design :250mm x 250mm
Seamless connection
PC meterial mask with highly scratch-resistant

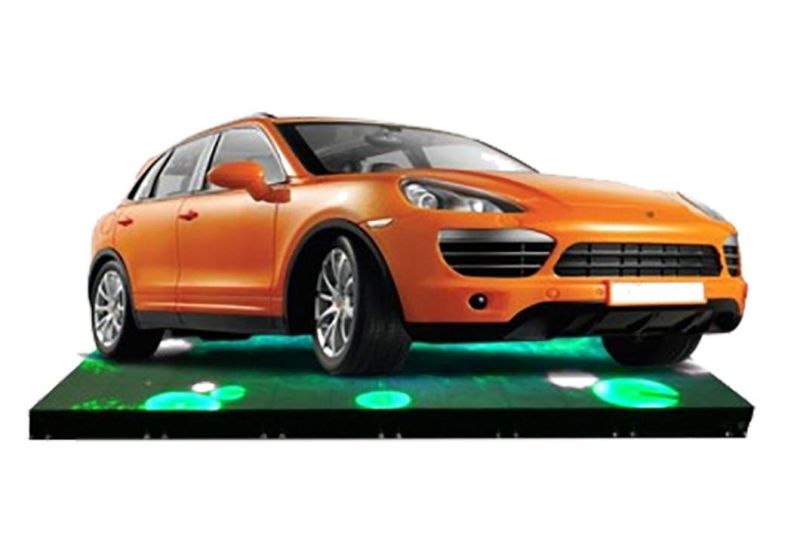

FHigh Bearing Capacity
Bearing capacity uo tp 1.8 tons per square meter

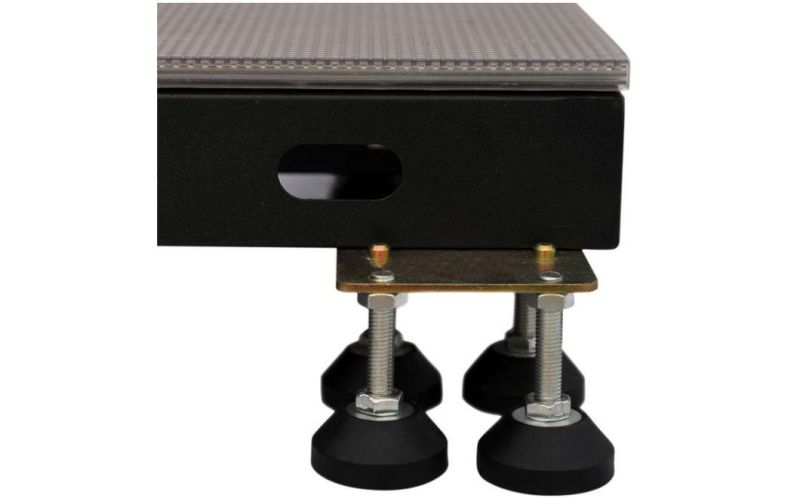

Height adjustable, adapt to multifarious ground

Easy and Fast Installation
Cable-less between modules
Tools free installation
Easy maintencance after cabinets assembled


Unsurpassed Color Uniformity
Interactive system with inductor built-in
Quick response within 0.02s




Interactive Video Wall Parameters

Physical Pitch	3.91mm	5.2 mm	6.25 mm	8.928 mm
Pixel Configuration	SMD 1921	SMD 1921	SMD 2727	SMD 3535
Pixel Density	65,536 pixels/m²	36,864 pixels/m²	25,600 pixels/m²	12,544 pixels/m²
Module Dimensions (W × H) (mm)	250 × 250	250 × 250	250 × 250	250 × 250

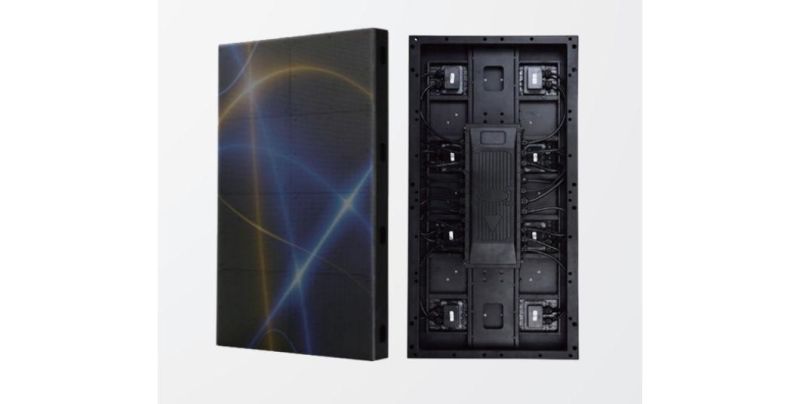

Panel Dimensions (mm)	500 × 500 × 80 / 500 × 1000 × 80	500 × 500 × 80 / 500 × 1000 × 80	500 × 500 × 80 / 500 × 1000 × 80	500 × 500 × 80 / 500 × 1000 × 80
NO.of Modules Per Panel (W × H)	2 × 2 / 2 × 4	2 × 2 / 2 × 4	2 × 2 / 2 × 4	2 × 2 / 2 × 4
Physical Resolution of Module (W × H)	64 x 64 / 64 x 128	48 x 48 / 48 x 96	40 x 40 / 40 x 80	28 x 28 / 28 x 56
Physical Resolution of Panel (W × H)	128 × 128 / 128 × 256	96 × 96 / 96 × 192	80 × 80 / 80 × 160	56 × 56 / 56 × 112
Panel Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Single Cabinet Weight	20 / 35 kg / panel	20 / 35 kg / panel	20 / 35 kg / panel	20 / 35 kg / panel
Gray Scale	16 bit	16 bit	16 bit	16 bit
Colours	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	4,000 : 1	4,000 : 1	4,000 : 1	4,000 : 1
Average Power Consumption	300 W / m²	300 W / m²	300 W / m²	300 W / m²
Max Power Consumption	600 W / m²	600 W / m²	600 W / m²	600 W / m²
Operating Temp/Humidity	-10ºC- 60ºC / 10% - 60%	-10ºC - 60ºC / 10% - 60%	-10ºC- 60ºC / 10% - 60%	-10ºC - 60ºC / 10% - 60%
Storage Temp/Humidity	-30ºC - 60ºC / 10% - 60%	-30ºC- 60ºC / 10% - 60%	-30ºC - 60ºC / 10% - 60%	-30ºC - 60ºC / 10% - 60%
Refresh Rate	>1,920Hz	>1,920Hz	>1,920Hz	>1,920Hz
Brightness	≥2,500 nits	≥2,000 nits	≥4,500 nits	≥4,500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs	100, 000 Hrs
Best Viewing Distance	4m-60m	6m-60m	8m	8m
Servicing	Front	Front	Front	Front
IP Rating (Front/Rear)	IP 65	IP 65	IP 65	IP 65
Scan Method	1/16 Scan	1/6 Scan	1/5 Scan	1/3 Scan

About Us

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.

BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
