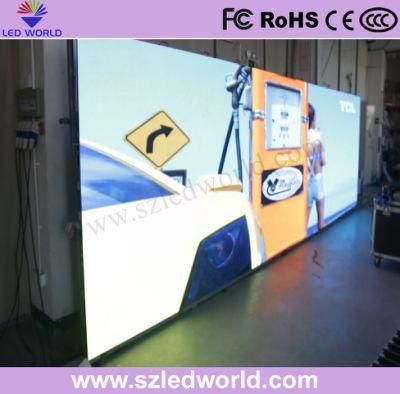

P10 SMD Outdoor 1/4 Scan LED Display Module with 1r1g1b

PRT Optoelectronic Co., Ltd.
  • IP Rating：IP65
  • Pixel Pitch：10mm

Base Info

  • Model NO.：P10
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：220W , m²
  • Pixel Density：10000 dot , m²
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Advertising,Performance,Rental
  • Certification：CE, RoHS, CCC, FCC
  • LED Encapsulation：SMD3535
  • Module Size：320X160mm
  • Module Resolution：32X16dots
  • Brightness：>6000nits
  • Transport Package：Wooden Case or Flight Case
  • Specification：CE, FCC. ROHS, 3C
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：3000sq. M,Month

Description

P10 Outdoor full Color LED Module SpecificationPixel pitch10mmPixel Configuration1R1G1BLED componentSMD3535 Size of module320mm x 160mmResolution of module32 x16Size of cabinet960mmx 960mm /1280mm x 960mmResolution of cabinet96x96 / 128 x 96Material of CabinetIron with back doorsWeight of Cabinet<50KGSBrightness>6000cd/sq.mDensity10000dots/sq.mBest viewing angle140 /140Best viewing distance10-100MMaximum power consumption<800W/sq.mAverage power consumption<300W/sq.mDriving method1/4 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1800HzIP gradeIP65Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
