• Model NO.：Y001
• Certification：CE, RoHS, UL, CCC, ETL
• Transport Package：Packing in Wooden Cases
• Trademark：yose
• Origin：Shenzhen, China
• Production Capacity：50000

                                      P2 led flexible screen
1. The LED flexible screen magnet adopts full hollow design, with good magnetic force, rounder cylinder and better splicing gap
2. V-groove design can effectively dissipate heat
3. Four pieces of strong magnetic field are used to ensure flatness and suction
4. The iron base is fixed with copper column and 3M glue module has a good fit, which greatly solves the pain point of no warping and no degumming, and makes the column more flat
P2led flexible screen adopts high-quality Shengyi chenjin technology, PCB circuit is more stable, soldered well, module flexibility is better, longevity is longer
Characteristics of flexible PCB combined with silica gel
Prevent static electricity and avoid collision between PCB and cabinet

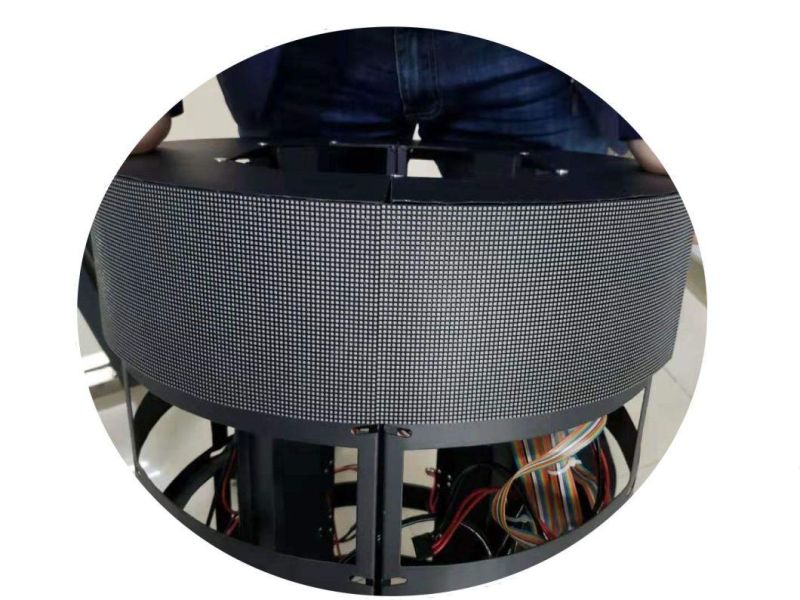

The reasonable design of V-bottom shell can make the cylindrical screen more round and the wavy screen more uniform,
The V-groove design can be very helpful for the heat dissipation of the module The modular standardized size design is 240mmx120mm, low current, low heat, high contrast 5000:1, high brightness and high gray, refresh ≥ 1920hz, 12-16bit gray level, and the image presents no delay and no dragging phenomenon;

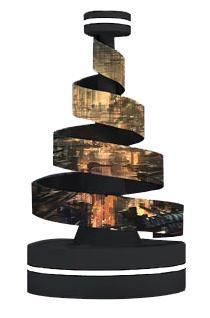

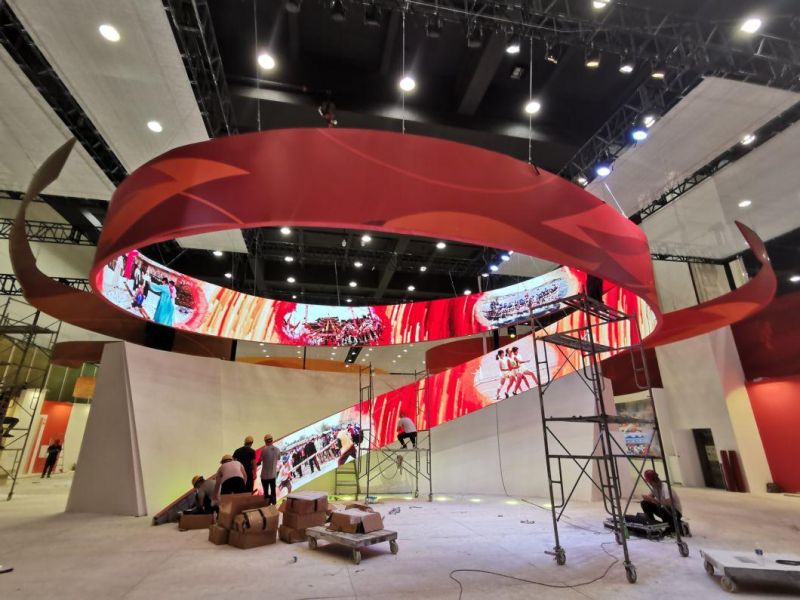

Flexible radian ≤ 145 ° and visual angle up to 140 ° are suitable for flexible display of stage background, exhibition hall, indoor conference room and other curved surfaces, which helps to improve the environmental level and create a special visual atmosphere;
The box structure adopts high-strength sheet metal sandblasting iron box (plate thickness is 2.0), with unique segmented splicing process, which can effectively reduce the splicing gap of screen body;
The module is installed by strong magnetic adsorption, which can be slightly adjusted, and the flatness of the screen is good. Power box front maintenance design, special scene, can realize the front installation, with specific tools to meet the front maintenance;

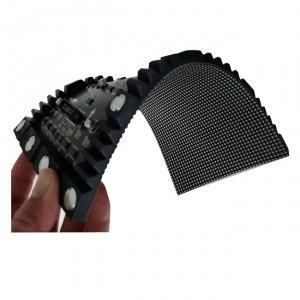

PCB board adopts flexible board, mask / bottom shell adopts superior silica gel material;
The thickness of the module is only 8.6 mm, which is ultra-thin and occupies little space; PCB board adopts Shengyi PCB, gold deposition process, s1000-2 base material, special circuit layout, multi-layer board process design, and high-order material to greatly reduce the "color temperature" phenomenon;
The whole series adopts high contrast black light. When the screen is black, the consistency of ink color and luminous angle of the whole screen is good. When playing high-definition video, the picture is delicate and soft, and the visual effect is good.
The bottom shell is made of superior silica gel, with good flexibility, high temperature resistance, low temperature resistance, static elimination and strong protection;
PCB board uses copper column welding and back glue to form a lockable base with the bottom shell, which makes the module more firm and reliable;
The single board is equipped with 14 strong magnets, each with a magnetic content of 2000 GS, which greatly solves the problems of common module degumming and warping, and effectively improves the flatness and use effect of the screen.
