Indoor Outdoor Transparent P3.91-7.81 LED Display Screen Video Billboard
Hefei Yilan Electronics Technology Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display, Advertising
- Pixel Pitch：3.91-7.81mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：32256dots,Sqm
- Scanning Mode：1,8 Scan
Base Info
- Model NO.：P3.91-7.81
- System Operating Platform：WIN XP
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide, Supermarket
- IP Rating：IP20
- Certification：CE, RoHS, FCC
- Module Resolution：128*16
- Brightness：Above 5000 CD
- Gray Scale：16 Bit
- Viewing Angle：140 Degree
- Light Transmittance Rate：75%
- Transport Package：Carton, Wooden Carton, Flight Case
- Specification：500x1000mm
- Trademark：Seekstarled
- Origin：China
- HS Code：8528591090
- Production Capacity：1000 Sqm,Month
Description
Product Item Front Light Side/back light P3.91-7.81 P3.91-7.81 Pixel Pitch 3.91mm x 7.81mm 3.91mm x 7.81mm LED Type LED RGB 3in1 RGB 3in1 LED Life LED 100,000 hours 100,000 hours Configuration SMD1921 SMD3010/3510 Module Resolution 128*16 128x16 Pixels Density (dots) 32256/sqm 32256/sqm Brightness (cd/sqm) 700-3500cd/sqm ≥5000 cd/sqm Light Transmittance Rate ≥70% ≥75% Viewing Distance ≥5m ≥5m Viewing Angle 120°/140° 120°/140° Refresh Rate ≥1920HZ ≥1920HZ Gray Scale 16bit. Red, Green and Blue each 16K 16bit. Red, Green and Blue each 16K Color Temperature 3200K-9300K adjustable 3200K-9300K adjustable Scan Mode 1/8 scan 1/8 scan Cabinet Material die-casting aluminum die-casting aluminum Cabinet Size (mm) 500x1000x70 500X1000 Cabinet Weight(kg) 15kg/sqm 15kg/sqm Max Consumption (W/sqm) 500 560 Ave Consumption (W/sqm) 130-180 180 Supply Voltage AC220V/50HZ; AC110V/60HZ AC220V/50HZ;AC110V/60HZ Storage Temperature -20ºC~+60ºC -20ºC~+60ºC Working Temperature -20ºC~+50ºC -20ºC~+50ºC Operating Humidity 10%-80% 10%-80% IP Rating IP20 IP20 Display Capacity Text, Graph and Video Text, Graph and Video Control System LINSN,Nova-star Colorlight (adjustable) LINSN,Nova-star Colorlight (adjustable) Control Mode Synchronous Control Mode Synchronous Control Mode

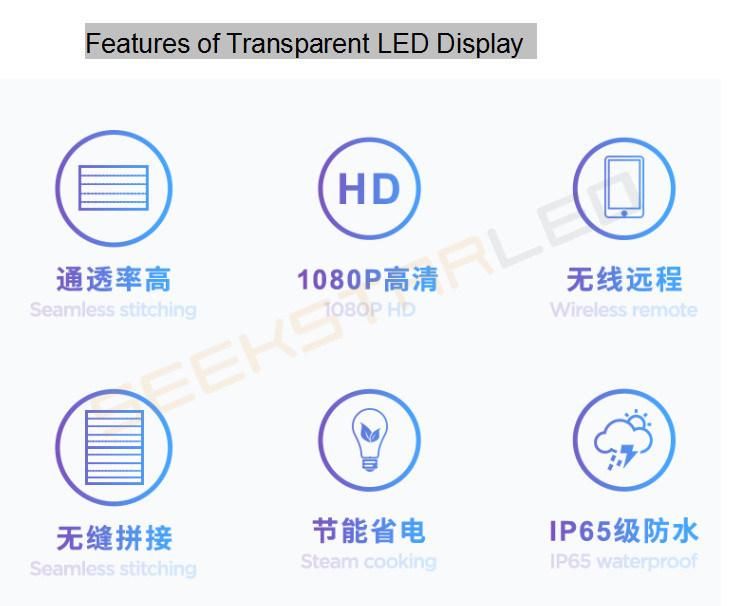

Features:
Professional transparent led display, light up your window
* High transparency with over 75% transparency rate for front and back. People can
see the video and photos through the glass clearly without any blocking sights.
* Super light, each led panel is around 7.5kg
* Wide Viewing Angle Heat Dissipation
* High Brightness
* It achieves to send video and image by intelligent terminal APP.
Installation:
No need to change any building structure for installation.
Fast maintenance design.
Wide viewing angle
Application:
Widely use for indoor and out door: high protection Rate IP65 waterproof, dustproof, suitable for both indoor and outdoor use. Such as: Business center, hotel, 5A office building, automobile shop, Airport, sightseeing lift, brand store,ect.
