High Refresh Rate Indoor Full Color P2 SMD2121 LED Billboard Display Screen
Quanzhou Hooshine Optoelectronic Technology Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：2mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：250000 Dots,M2
- Scanning Mode：1,32scan
Base Info
- Model NO.：P2 SMD1515
- System Operating Platform：WIN XP
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP40
- Certification：CE, RoHS, CCC
- LED Specification：SMD1515
- Panel Size：256mmx128mm
- Chip Brand：Epistar
- Brightness：600-1000CD,M2
- Refresh Frequency：1920-3840Hz
- Driving IC：Mbi5124,16169,Icn2038,16207 Ect
- View Angle：Horizontal140°,Vertical20
- Life Span：100000 Hours
- Working Volitage：110V to 240V
- Control Card：Nova Star,Colorlight,Linsn,HD
- Working Temperature：-20deg to +60deg
- Humidity：10%~95%
- Delivery Time：3 to 15 Days, Depend on The Quantity
- H.S Code：8528591090
- Warranty Time：2years
- Transport Package：Plywood Case or Airline Fly Case Cabinet
- Trademark：Hooshine
- Origin：Quanzhou, Fujian, China
- HS Code：8528591090
- Production Capacity：3000m2,Month
Description
Pixel Information
Pixel Pitch
2mm
Technology
SMD 3 in 1
Pixel Density
250000Pixels/m2
Pixel Configuration
1R1G1B
LED Module
Module Size
256mm (Width) × 128 mm(Height) = 0.032768/m2
Module Resolution
128 pixels(Width) × 64 pixels(Height) = 4096 pixels

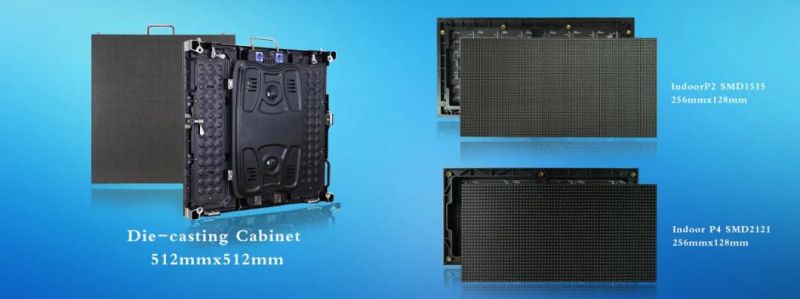

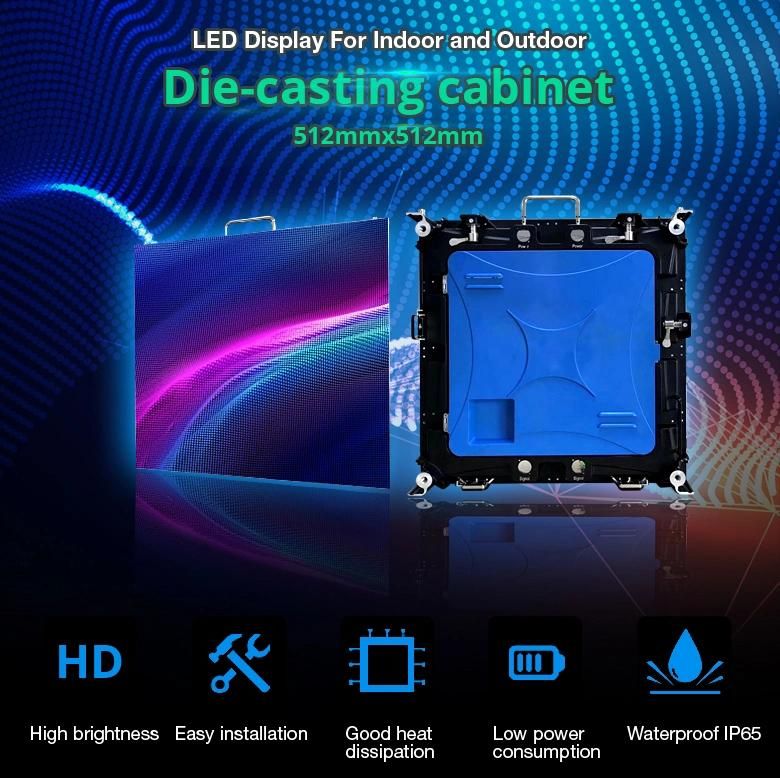

LED Cabinet
Cabinet Size
512mm(Width) × 512 mm(Height) = 0.262144/m2
Cabinet Resolution
256Pixels(Width) × 256 Pixels(Height) = 65536Pixels
Total QYT Module Per Cabinet
2 Modules(Width) × 4Modules(Height) = 8 Modules
Cabinet Weight
3.9kg
Cabinet Material
Power
Input Voltage
100-240V AC, 50/60Hz
Max Power Consumption
780 Watt/m2
Avg. Power Consumption
300 Watt/m2
Viewing
Brightness
650cd to 1000cd/m2
Brightness Uniformity
Luminance Discrepancy < 5%
Colors
16777216
Grey Scale(Level)
4096
Slot Between Neighboring Modules
< 1 mm
Best Viewing Angle
Horizontal:160°,Vertical:160°
Viewing Distance
5 - 300 meters
Ambint Conditions
Temperature Range
Storage:-40deg. to +85deg.; Working:-20deg. to +60deg
Operating Humidity
10%90%RH
Ingression Protection Grade
Front IP40,Back IP54
Processing
Scanning Mode
1/32Scan
Refresh Frequency
180HZ-600HZ, Adjustable
Signal Input
DVI, Composite Video for Live Video
Supported Networking
Through LAN/WAN, RS 232/RS485
Other
Life Span
50,000 - 100,000 Hours
Software
Nova Star,Cololight,Huidu ect
Hooshine Packing

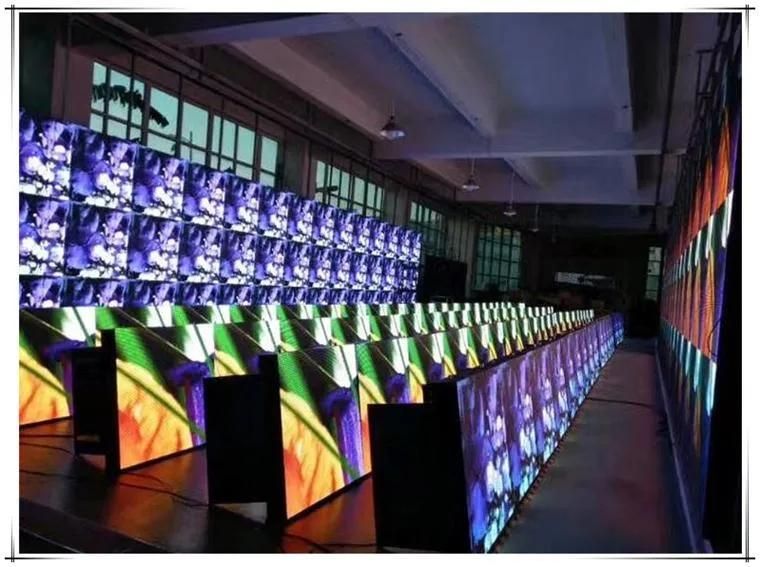

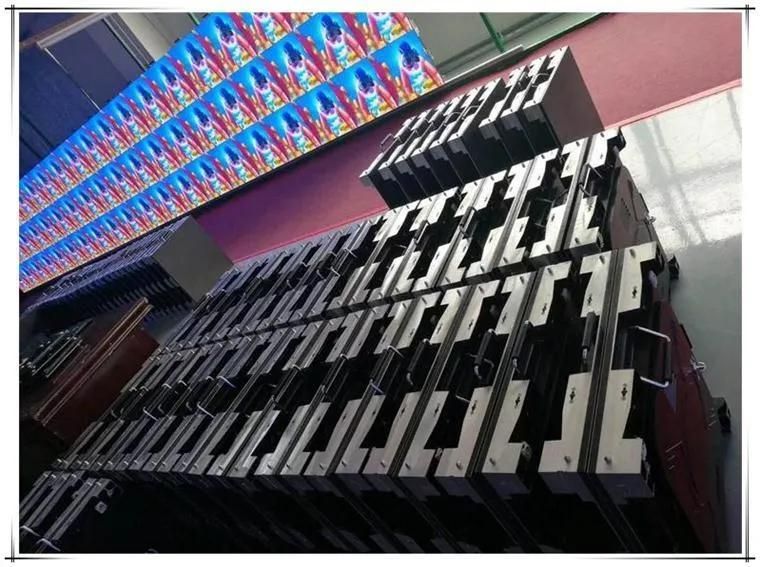

Factorty Tour
FAQ
Q1: Where is your nearest Sea Port?
A: Our nearest sea port is at Xiamen,Fujian Provice
Q2: What's the brand of your diode chip?A: Our led lamps are by Sanan,Kinglight,Silan,Epistar, Nation Star ,Cree etc.
Q3. Can I order a sample for led display screen?A: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.
Q4. How do you ship the goods and how long does it take to arrive?A: For large quantity,you can choose sea freight.For small order,you can ship by DHL, UPS, FedEx or TNT.Of course,you also can choose it by airline. It usually takes 3-7 days to arrive by express.
Q5. Is it OK to print our logo on led screen product?A: Yes,we can print your logo according your request.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.002%.
Secondly, during the guarantee period, we will send new parts with new order for small quantity.
If the screen has serious damaged ( e.g. The whole cabinet couldn't work normally) caused by human, we would mend it with charge based on the cost
