• Model NO.：JC-IND-PH2MM
• Pixel Density：250000dots,Sqm
• Scanning Mode：1,32 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL
• Module Size：128mmwx128mmh
• LED Configuration：SMD1515(Black)
• Brightness：≥1000nits
• Scan Mode：1,32 Scan
• Power Supply：5V 40A 200W
• Warranty：2years
• Transport Package：Wooden Case Package
• Specification：Customized
• Trademark：JC
• Origin：Shenzhen, China
• HS Code：8531200000
• Production Capacity：50000PCS Per Month

Product Description

P2 Indoor Led Module
Pixel pitch	2mm
LED configuration	SMD1515(black)
Module size	128mmWx128mmHx9mmD
Pixel density(sq.m)	250000dots
Pixel resolution	64x64
Port type	HUB75
Brightness	≥1000nits
Pixel configuration	1R1G1B
Drive type	constant drive
Scan Mode	1/32 scan

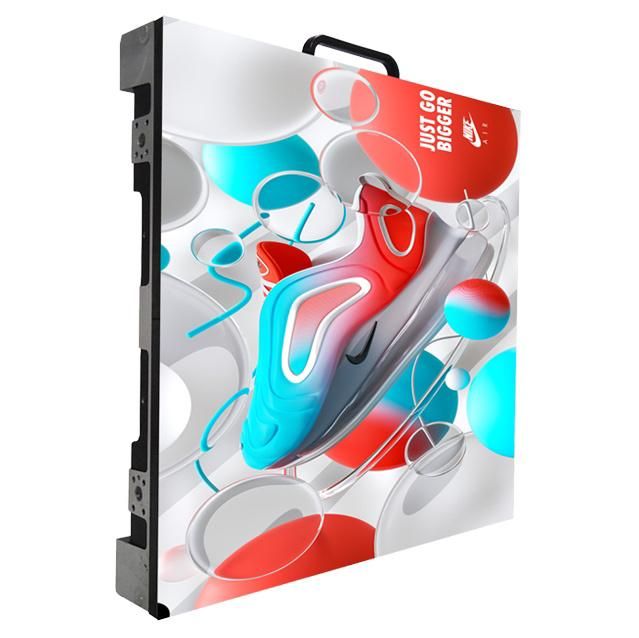

P2 Indoor Led Display
Cabinet size	512mmWx512mmHx75mmD
Quantity of module	16pcs
Power supply	5V 40A 200W
Pixel per cabinet	256x256
Weight	8kgs
Best viewing distance	>2m
Best viewing angle	160 degrees(H)x140 degrees(V)
Pixel configuration	storage:-35ºC-+85ºC [-31ºF-+185ºF]
Working Temperature	-20ºC-+60ºC [-4ºF-+140ºF]
Operation humidity	20%-90%
Protection classification	IP45

Control System Parameter:
Video signal (with video processor)	AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature	Adjustable by software
Brightness level	256 levels, automatic adjustment by software
Control way	Computer, video-synchronous, real-time, off-line, wireless, internet etc.

Company information:

JINGCAN led factory's main products areconsist of rental led display, advertising led screen,
football stadiumperimeter, stage background video wall, traffic guiding display, special-shaped display like curve and round, led moving light, led Par light, led modules andlaser light, etc.

The outstanding features of our led products areenvironmental-friendly, energy-saving and long life-span. All of our LEDproducts have approved by CCC, CE, ROHS, FCC, ISO9001 quality certificates authorities. Furthermore, our LED products were exported to more than 90countries till now such as Sweden, USA, Brazil, France, Japan, Thailand, Italy,Australia, Spain and etc. Those LED products were widely used in both indoorand outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

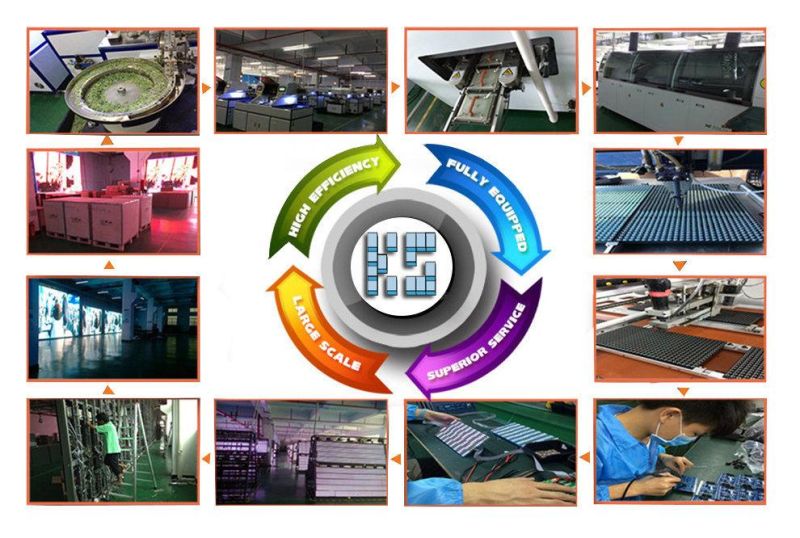

JINGCAN LED FACTORY Main LED Display Product Lines - Automatical Machines


Qualification Honor:

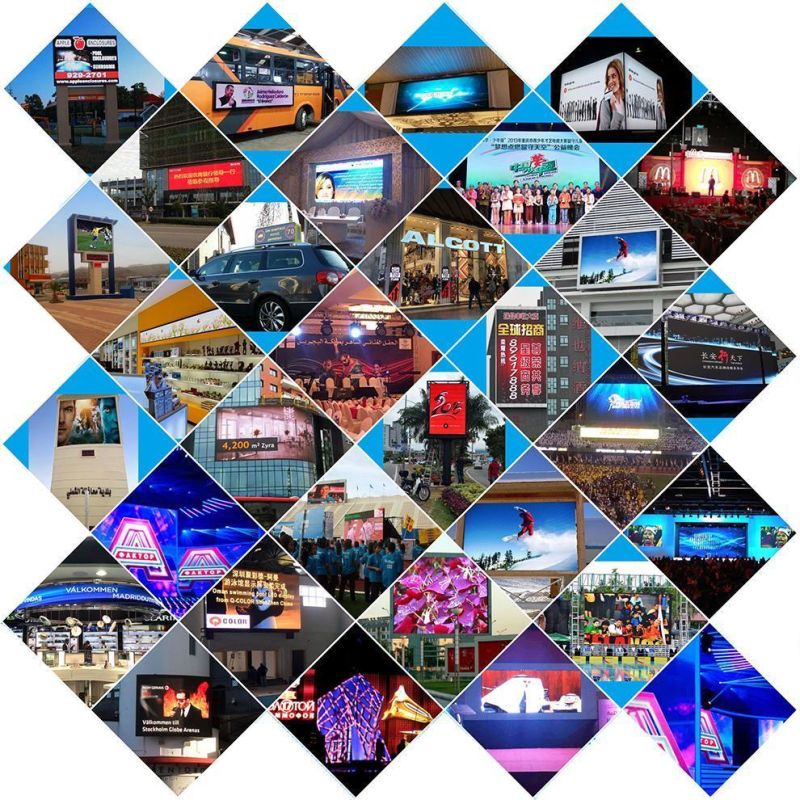

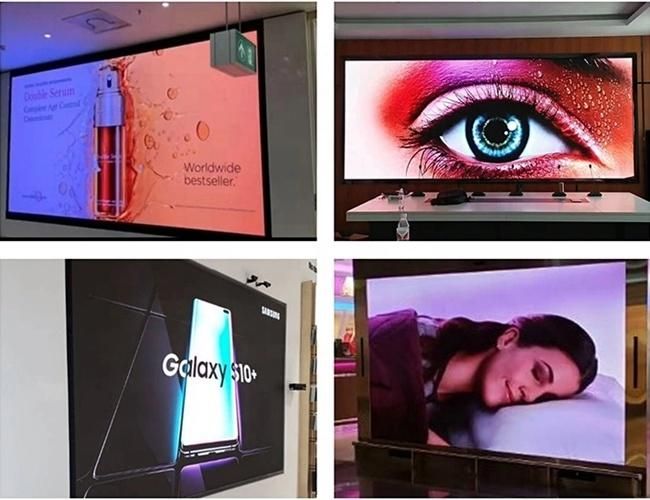

Product Project:


Packing and Shipping:

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.

FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.

Our service:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
