• Model NO.：P15.62
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Transport Package：Plywood Case
• Specification：500x1000mm Cabinet
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：4000m2,Month

Basic Info.

Model NO. P15.62 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Transport Package Plywood Case Specification 500x1000mm Cabinet Trademark LEDventure Origin China HS Code 852859109 Production Capacity 4000m2/Month

Product Description

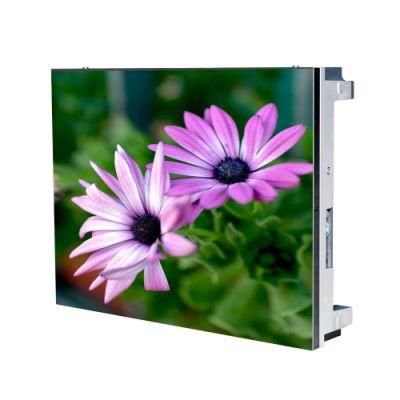

P15.62 SMD Advertising Indoor Outdoor Screen Transparent Led Display Screen

1.Main Features And Functions

LED transparent screen similar to the LED glass screen. As the name suggests, it is the LED display for the pursuit of better permeability, reduce or change the material from the product. Most of this screen is used to install a glass place, it is also known as transparent screen.
Led transparent glass curtain wall to promote the brand new publicity modelLed transparent screen has a strong permeability and color expressive force, with vivid video, graphic advertising to replace the dull glass curtain wall store.
Led transparent glass screen the biggest advantage can be installed in the indoor glass curtain wall, outdoor products advertising show, reducing the conventional outdoor led display steel installation costs and advertising approval, to solve the problem of outdoor advertising approval difficult.
Led transparent screen in the use of the screen per square power consumption of 400W, the average power consumption in the 140W-180W, the greatest degree of customer savings in the use of the screen in the process of generating electricity consumption trouble.

2. Main Technical Specifications

PARAMETERS	DESCRIPTION
Brightness	≥2000 Nits
Viewing angle	H: 120°; V: 120°
Panel weight	7kg
Panel size	W500mm x H1000mm
Panel material	Aluminum
Ingress protection	Front/Rear: IP31
Operating Temperature/Humidity	-20ºC - +50ºC/ 10-90%RH
Storage Temperature/Humidity	-40ºC - +60ºC/ 10-90%RH
Pixel configuration	1R1G1B
Pixel Pitch	15.62mm
Pixels per panel	32x32Dots
Physical density	2049pixels / m 2
Recommended viewing distance	15-16M
Color	4.4 trillion
Gray scale	65536 levels per color
Brightness control	256 levels of each color(manually),8 levels of each color(automatically)
Contrast ratio	1000:1
Processing depth	16bits
Video frame rate	1920Hz
Input voltage	110-220VAC+-10%
Input power frequency	50-60Hz
Input power <max>	200watts
Input power <typical>	100watts
Life Time	≥100,000 Hours
LED Wavelength	R:620-625nm  G:525-529nm  B:472-478nm
Driving Method	1/4 scan
LED Encapsulation	SMD2727
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION, etc
Certifications	CCC,CE,FCC,ETL,IP65,EMC

3. Application

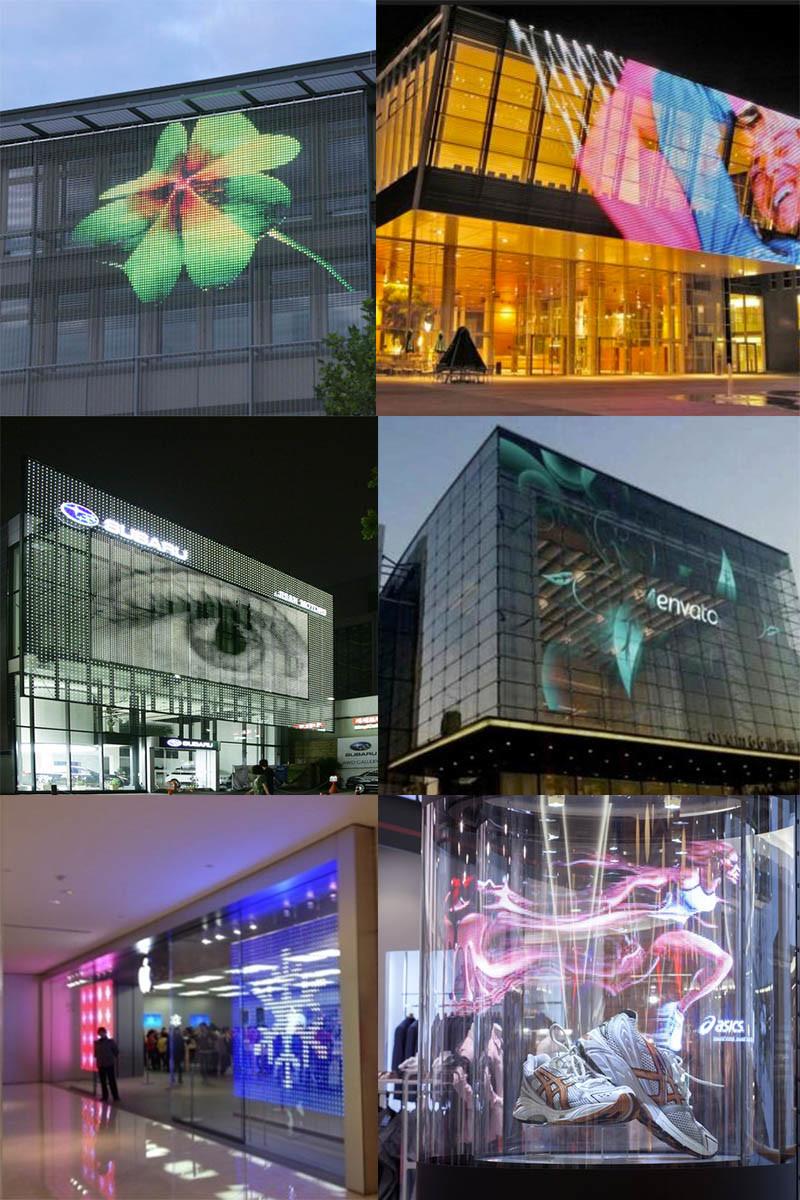

LED transparent screen to retain the traditional LED display with easy control, low voltage DC drive, the combination of rich color performance, long life and other advantages at the same time. But also because of its unique advantages in the application of glass curtain wall, is widely used in urban lighting engineering, large-screen display system. At the same time can be used as indoor display curtain wall, is widely used in large-scale square lighting, stage sets, bars, high-end dance halls, urban landmarks, municipal buildings, airports, cars 4S shops, hotels, banks,
brand chain, Glass display both the practicality of the display, but also a certain degree of beauty and concealment.



4. Company Information
