• Model NO.：HS-RED-14040
• Certification：CE, RoHS, UL, CCC, ETL, CE, RoHS, UL, CCC, ETL
• Pixel Configuration：1r, 1g, 1b
• Pixel Density：10000 DOT , M²
• Display Type：LED DOT Matrix Display
• Output：5V40A
• Module Size：320X160mm
• Input：100-240V 50,60Hz
• Quality Assurance：2 Years

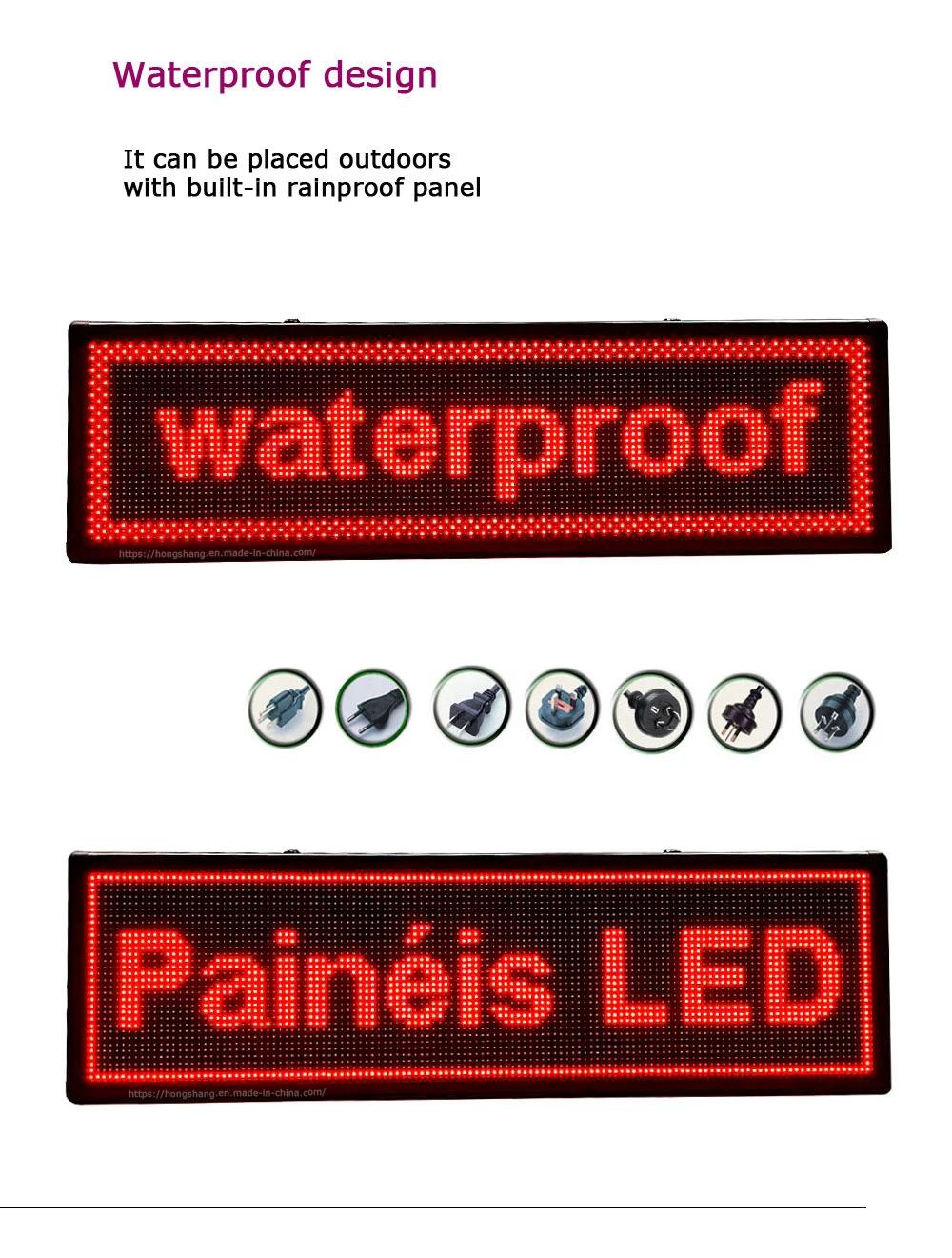

• Type：Outdoor Waterproof
• Transport Package：The Cartons,The Wooden Case

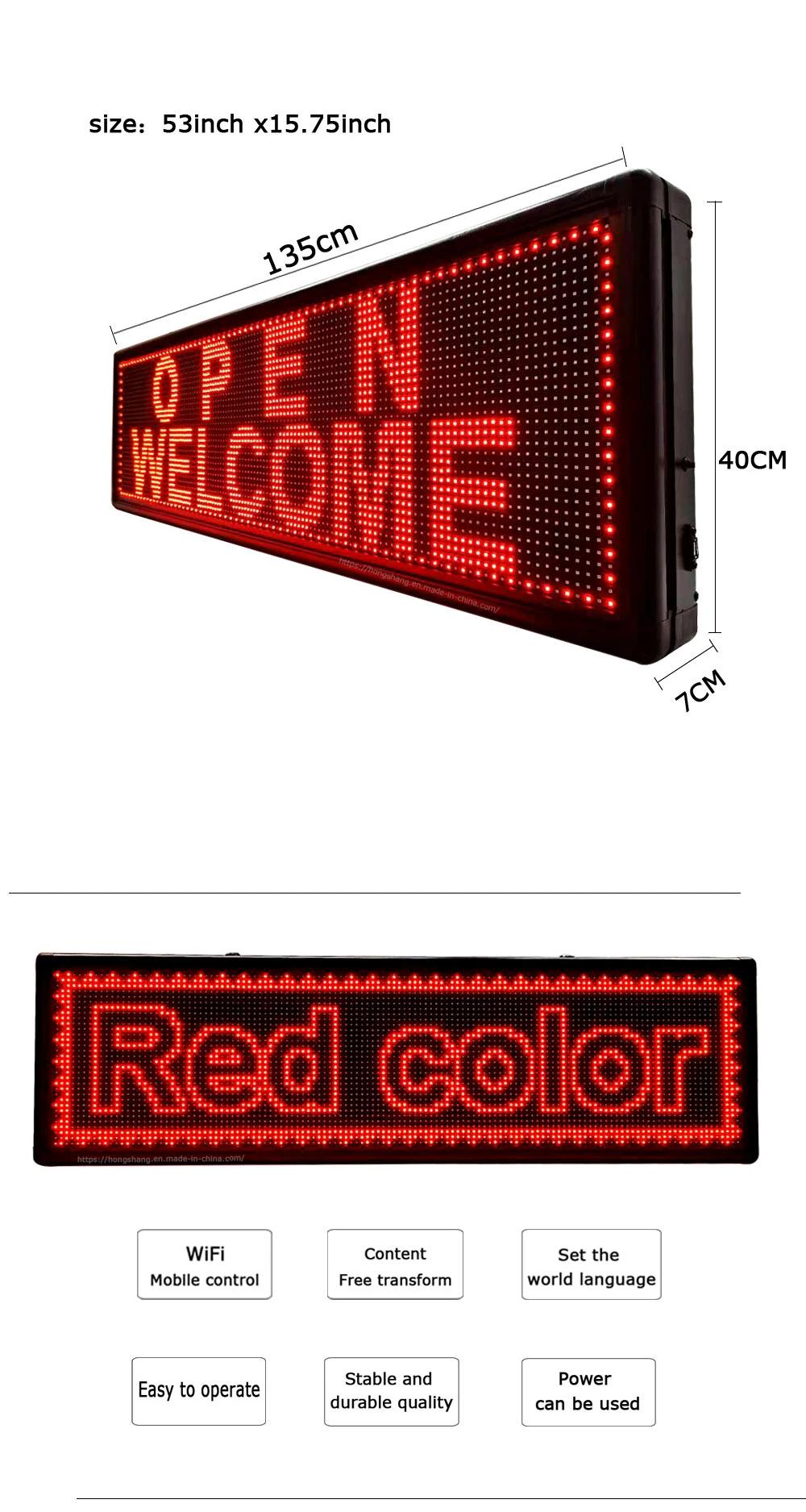

• Specification：140*40cm
• Trademark：hongshang
• Origin：Zhejiang
• HS Code：8528591090
• Production Capacity：200000

Basic Info.

Model NO. HS-RED-14040 Certification CE, RoHS, UL, CCC, ETL, CE, RoHS, UL, CCC, ETL Pixel Configuration 1r, 1g, 1b Pixel Density 10000 DOT / M² Display Type LED DOT Matrix Display Output 5V40A Module Size 320X160mm Input 100-240V 50/60Hz Quality Assurance 2 Years Type Outdoor Waterproof Transport Package The Cartons/The Wooden Case Specification 140*40cm Trademark hongshang Origin Zhejiang HS Code 8528591090 Production Capacity 200000

Product Description

Product Description
We updated it; LED recognizes hardware and software, making it very fast to program your information.
Now you can enter information via WiFi and USB, and you can choose any way you like.
Enter information via USB
1. Install the CD software on your computer.
2. Enter the setup password 168, enter the manually filled device type, smart setup serial number, and the height and width of the screen.
3. Input the contents, insert the USB flash drive into the computer, export the USB flash drive to confirm success. Unplug the USB disk, insert it into the USB interface of the display screen, wait 10 seconds and pull it out.
Input information through mobile WIFI
Support Andrews and iOS iPhone mobile phone system, mobile phone scan CD or manual and any QR code on the back of the display of downloaded software
1. Find WiFi through your phone and click the link to display the hot spot
2. Enter the password :88888888
3. Plan your message, click Send, and your message will now appear on the screen.
Other functions for your use only
Customizing your desired message and highlighting your personality is a powerful way to embed your brand in customers' minds:
1. Display ability: all kinds of languages, characters, numbers and symbols. The font size of the text message can be adjusted, the scroll speed can be adjusted, and the brightness of the display can be adjusted.
Multiple languages are supported: English/Chinese (simple and traditional) Arabic/Hebrew/Russian/Spanish/German, French, Japanese, Portuguese, Thai and other world languages.
Function
49 display effect, multi-action display, including snow, spray, rotation, rolling, etc., you can choose different rolling action, such as flashing, static, left, right, etc.
SMS can be programmed, SMS can be fixed, mobile, SMS bright, fast, attractive advertising.
User-friendly programming software and manuals that support software upgrades for the entire life of the software.
Stored messages support multiple text displays
Support week, time display HH:MM:SS and countdown display :DDD:HH:MM:SS. It has the function of time memory.
Energy saving: energy saving and high efficiency, 4 level brightness adjustable

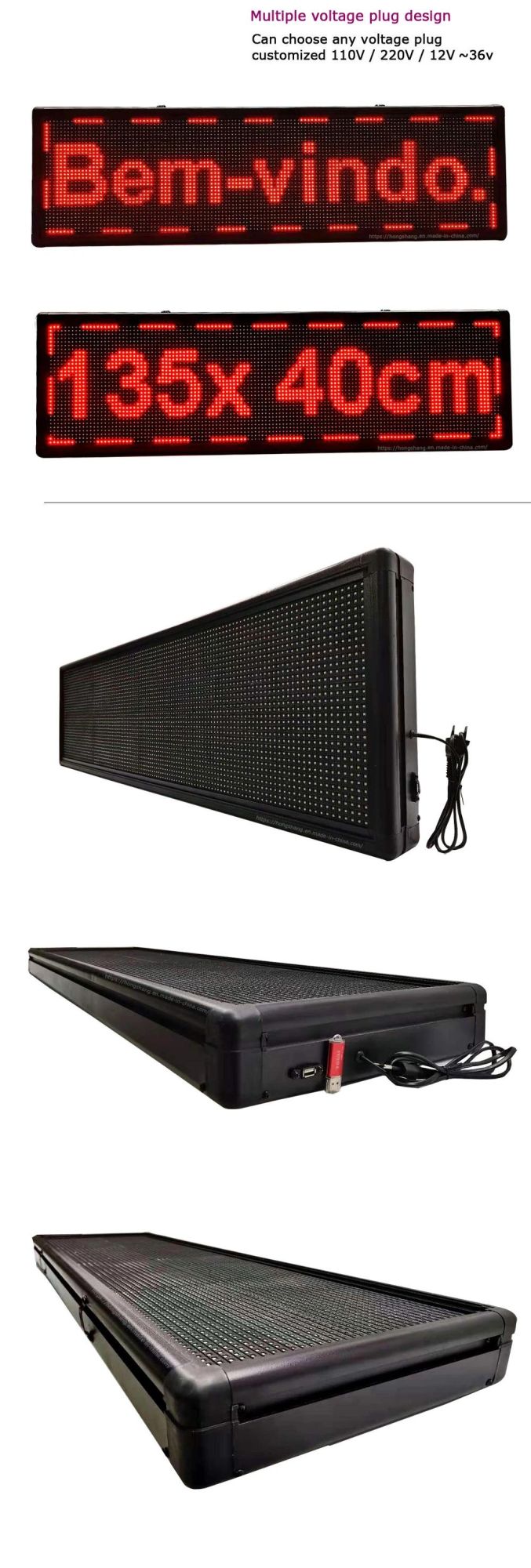

Working power supply :110-220V.
Work on computers, laptops, power supplies, sockets. USB cable and AC adapter included.
Best viewing distance :1-10 meters
Life: 100,000 hours
Warranty :2 years.
(including packing)
1 X Leader Signature
1 x USB interface
1 x metal chainPlug the 1X directly into the power cord

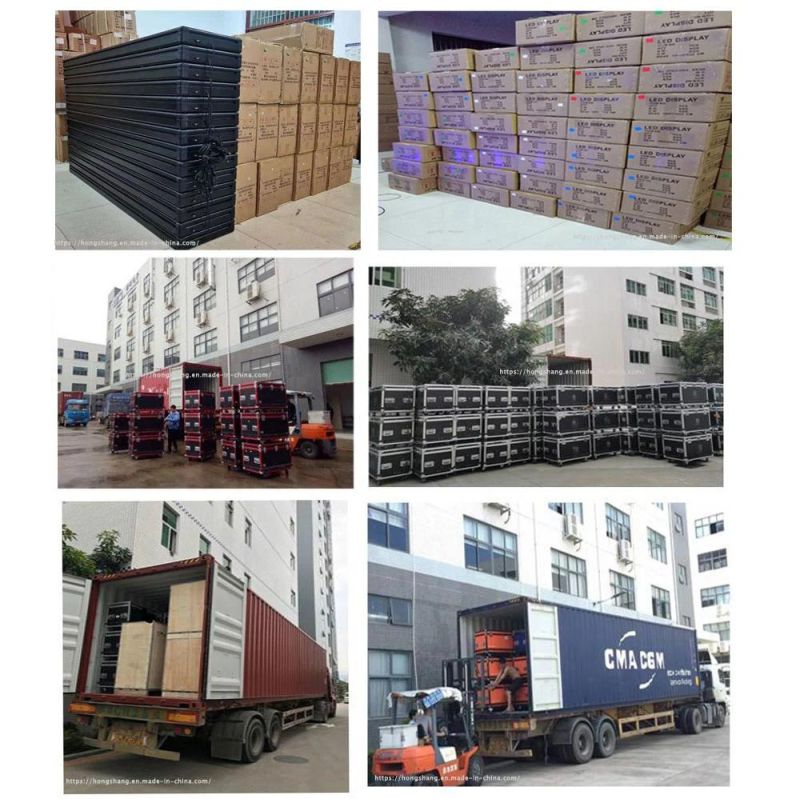

1X CD, software and manualsPacking mode: color box packing, separate custom white box packing

Product name	Door head advertising screen	led module type	P10
Physical point spacing	10MM	Using the environment	outdoor
Scanning mode	4 scan	Signature size	140x40cm
control mode	WiFi and USB	According to the color	red color
Number of lights	4096/Lamp bead	Module size	320mm*160mm
According to the content	Text ,background	module Pixel	32*16 point
Operating voltage routine	100-240V 50/60Hz	whole pixel (Wide* high)	128*32
Output	5V40A / 200w	framework	Aluminum alloy
Service life time	100,000 hours	Mean time free from failure	≥1000 hours
Maximum power	≤50w/m2	Quality Assurance	2 years
installation	hang	Cases of gauge	140*22*42cm
Packing specification	2 pcs	Gross weight	12kg
