• Model NO.：UX-P5S
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet：Nano Plastic
• Weight：6kg,PCS
• IP Rate：IP31
• Viewing Distance：5 Meters
• Brightness：1000nits
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• Driver IC：Constent Current
• PSU：MW
• LED Lamps：Epistar
• Service Solution：Front Service
• Installation：Back Bolted Hanging
• System：Nova
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：480x480mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

Overview Product Mainly Features

Indoor ultra light series led display screen is a special series with ultra light weight Nanocomposite material cabinet, about 7KG per cabinet.

It is popular for indoor advertising media, such as in airport, shopping mall, shows etc. HD resolution with high contract rate, also refresh rate is good level to ensure image quality, hot sale pixels are P3 P4 and P5

Material Quality Level

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Product Parameters



Item

Indoor Ultra Light Series Nanocomposite LED Display Screen

Model Number

UX-P2.5S UX-P3S UX-P4S UX-P5S

Pixel Pitch

2.5 to 5mm

Pixel Density

40000-160000 Pixels/M2

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD 3 in 1

Module size

256x128mm, 160x160mm, 192x192mm

Module Resolution

32*32 pixels (P5)

Min.Viewing Distance

2.5-5 meters

Brightness

1000nits

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/8 Scan (P5)

Protection Level

IP31

Cabinet Size(mm)

512x512mm for P4S, 480x480mm for P2.5 and P5, 576x576mm for P3



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

1920-3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

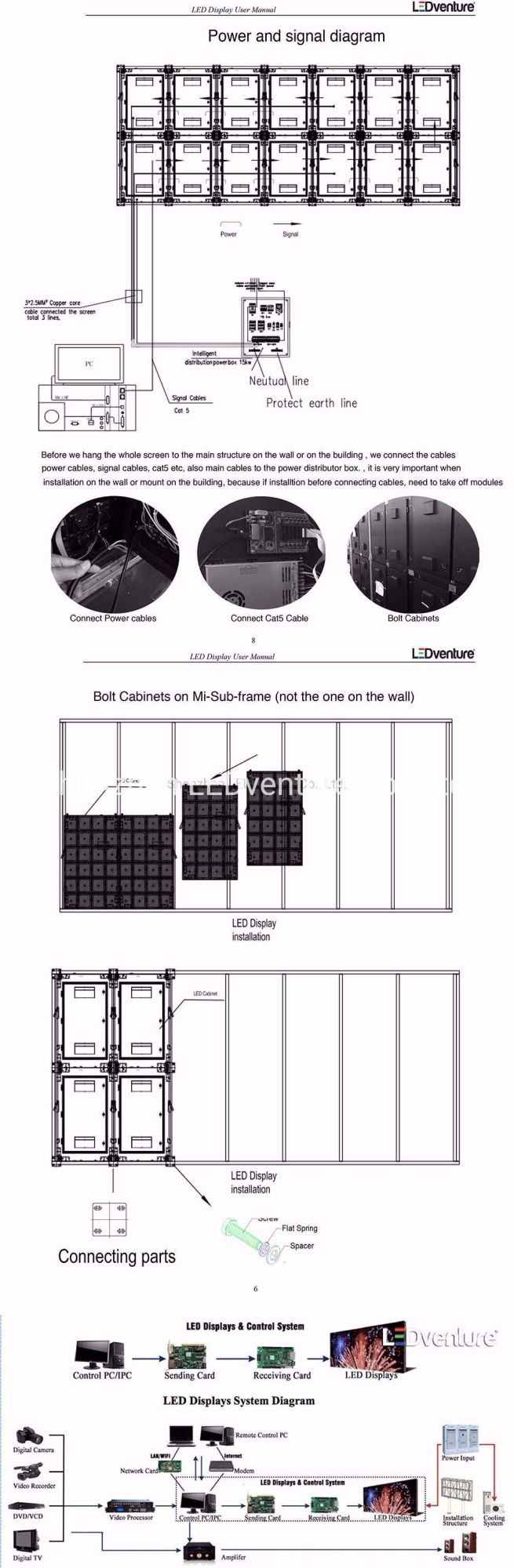

 Installation Instructions

Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

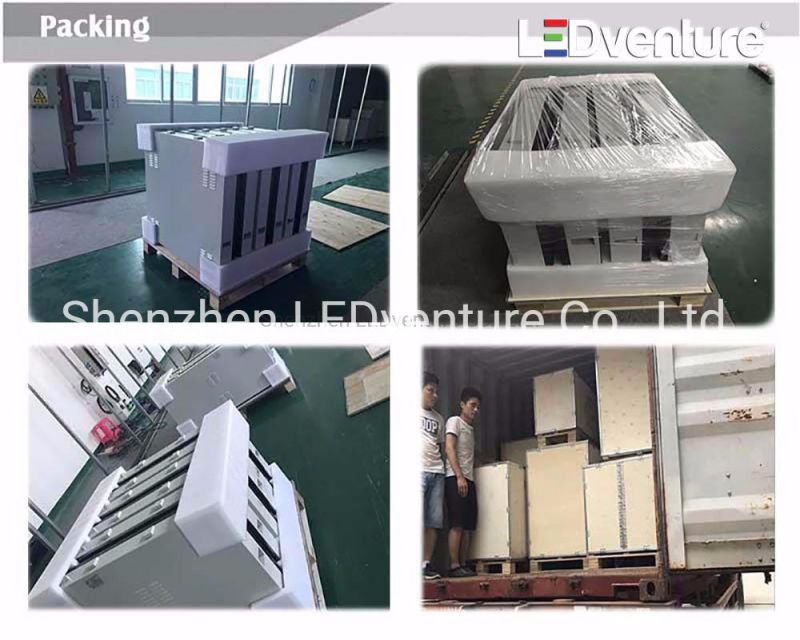

Packaging & Shipping

Packing by plywood cases, packing well and easy to load

Certifications

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Company Profile

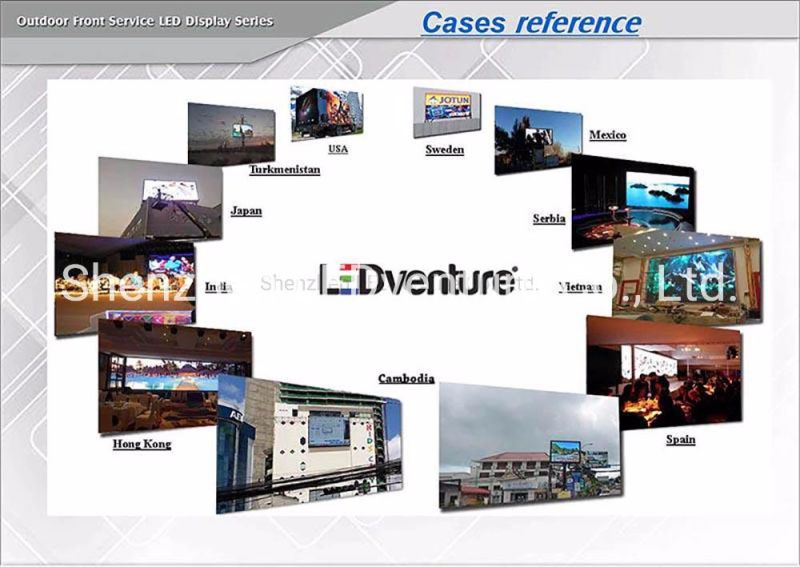

Project Cases

Most of our led display exported to Europe with high standards, also exported to USA, South America and Asia


Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
