• Model NO.：P5.95
• Pixel Density：28224 DOT ,M2
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Die Casting Aluminum
• Cabinet Weight：7kg,14kg
• Brightness：5000nits
• IP Rate：IP65
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• Transport Package：Flight Cases
• Specification：500x500mm 500x1000mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

Item

Outdoor car roof series rental led display screen

Model Number

P3.9 to P6.25

Pixel Pitch

3.9mm-6.25mm

Pixel Density(pixels/M2)

25600-65536 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar

Module size(mm)

250x250mm

Module Resolution(pixels)

42*42 (P5.95)

Min.Viewing Distance(m)

6

Brightness(nits)

5000nits

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

350

Scan Mode

1/16 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

500x500mm, 500x1000mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50hz/60hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Part 5: Installation methods, indoor outdoor rental led display screen installation is easy, usually hanging, base standing or back fixed installation depends on the location situation etc.

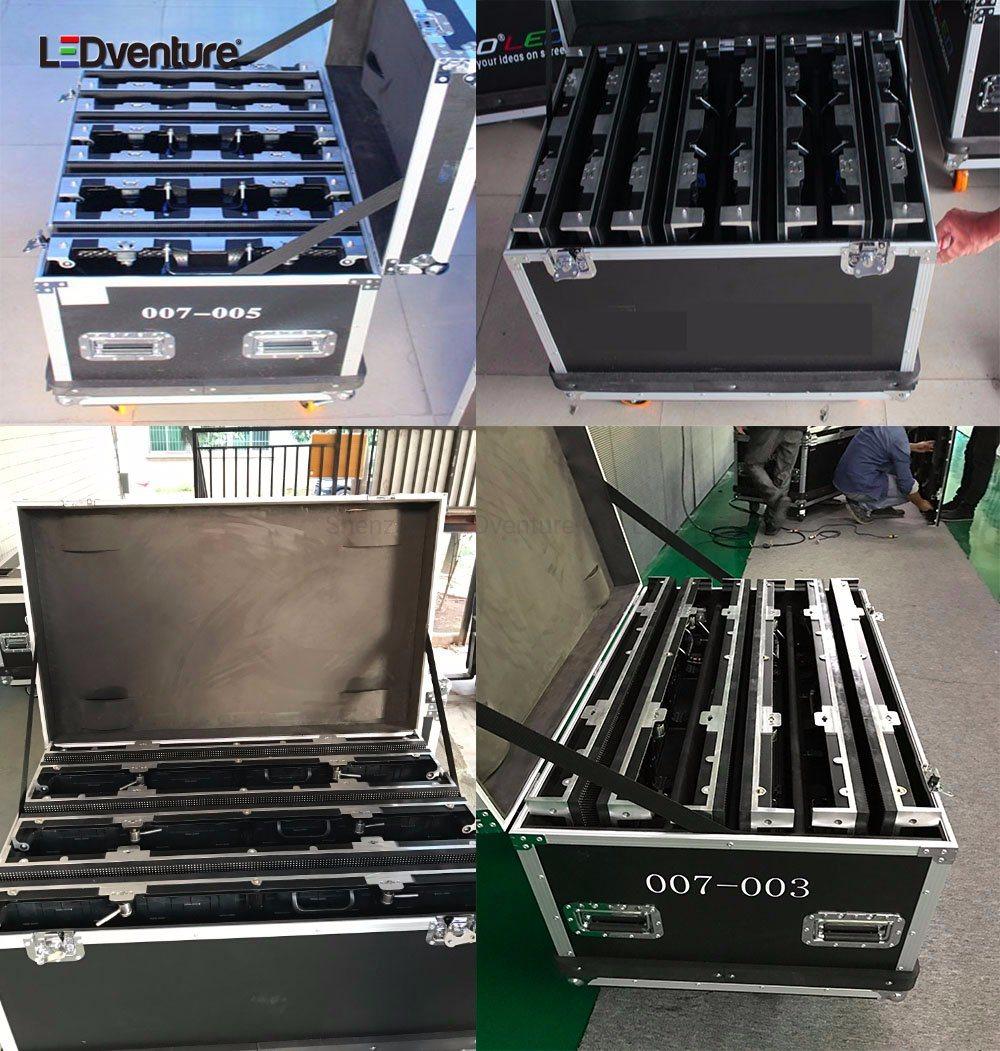

Part 6: Packing information by flight cases, easy to move and carry, and well protection



Part 7: Certificates.

All of our product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

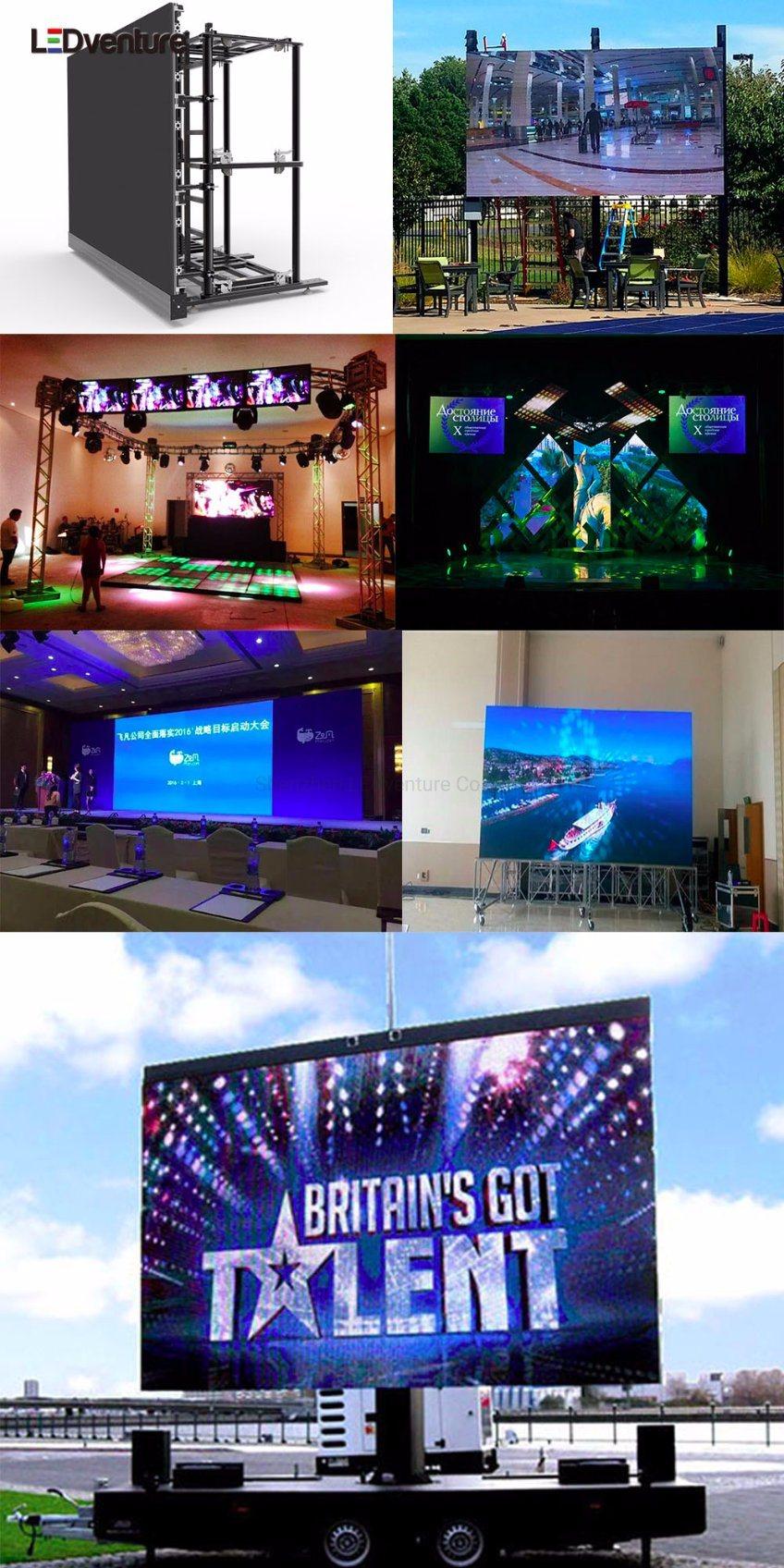

Part 9: LED display screen installation cases.

Most of our led display exported to Europe with high standards, also USA, South America, Asia...
