• Model NO.：OX-P6.67S
• Pixel Density：22477 Dots,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Alu,Steel
• Cabinet Weight：35kg,M2 (Aluminum)
• Brightness：6000nits
• Refresh Rate：1920-3840Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• PSU：MW
• Driver IC：Mbi
• LED Lamps：Epistar
• System：Nova
• Transport Package：Plywood Cases
• Specification：960x960mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

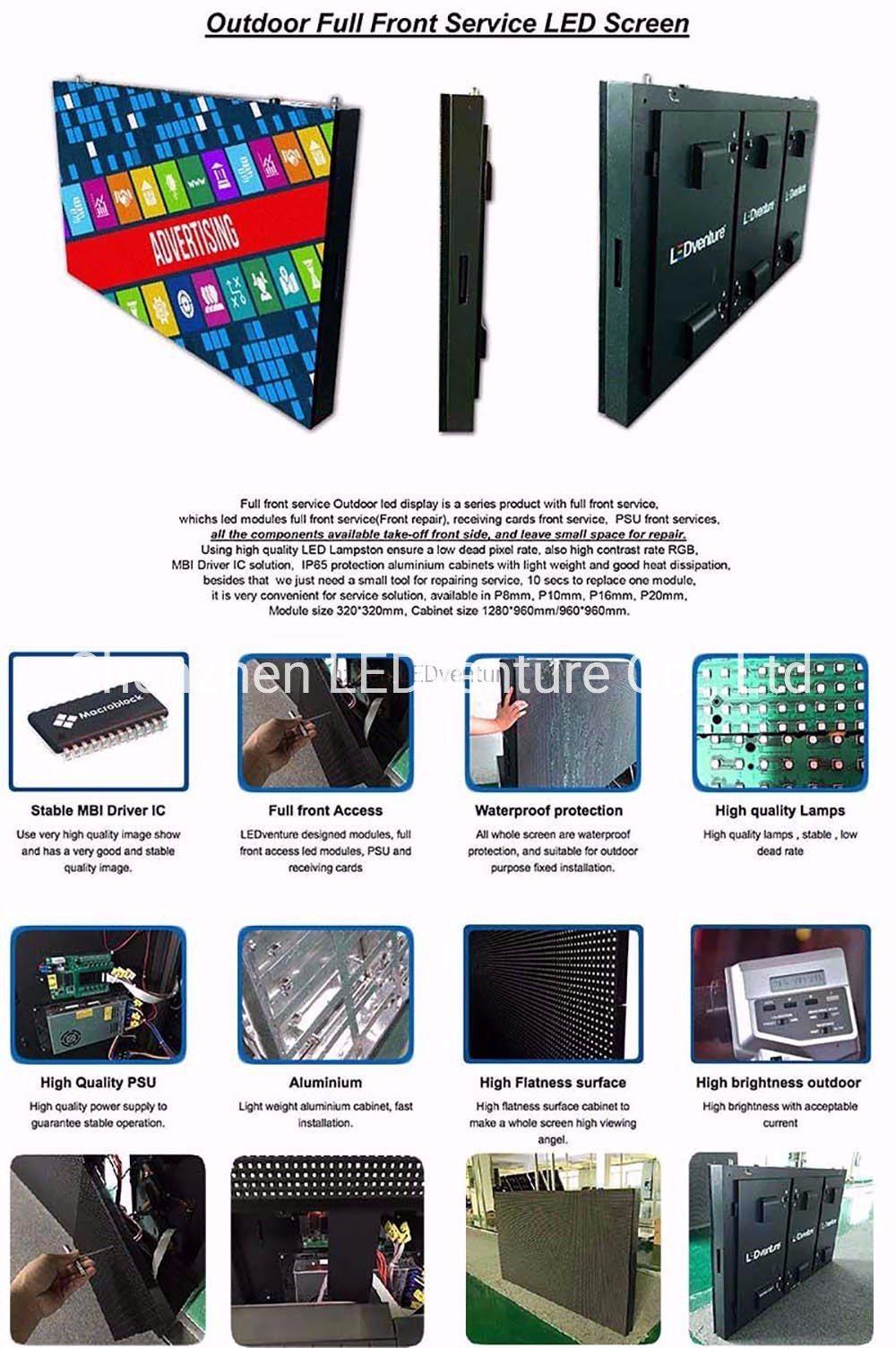

Outdoor front service series led display screen is very popular in outdoor building wall-mounted projects.

P6.67 is a hot sale product for outdoor front series, high cost effective, high refresh rate more than 1920hz, top image quality and stable running.

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Item

Outdoor Front Service Advertising LED Display Screen

Model Number

OX-P6.67S

Pixel Pitch

6.67mm

Pixel Density

22477 pixels/M2

Pixel Configuration

SMD2727

LED Type

Epistar, SMD 3 in 1

Module Size

320x320mm

Module Resolution

48*48 pixels

Min.Viewing Distance

6m

Brightness

6000nits

Viewing Angle(degree)

≤140°

Average Power Consumption

400 W/M2

Scan Mode

Protection Level

IP65/IP54

Cabinet Size

960x960mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

1920-3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

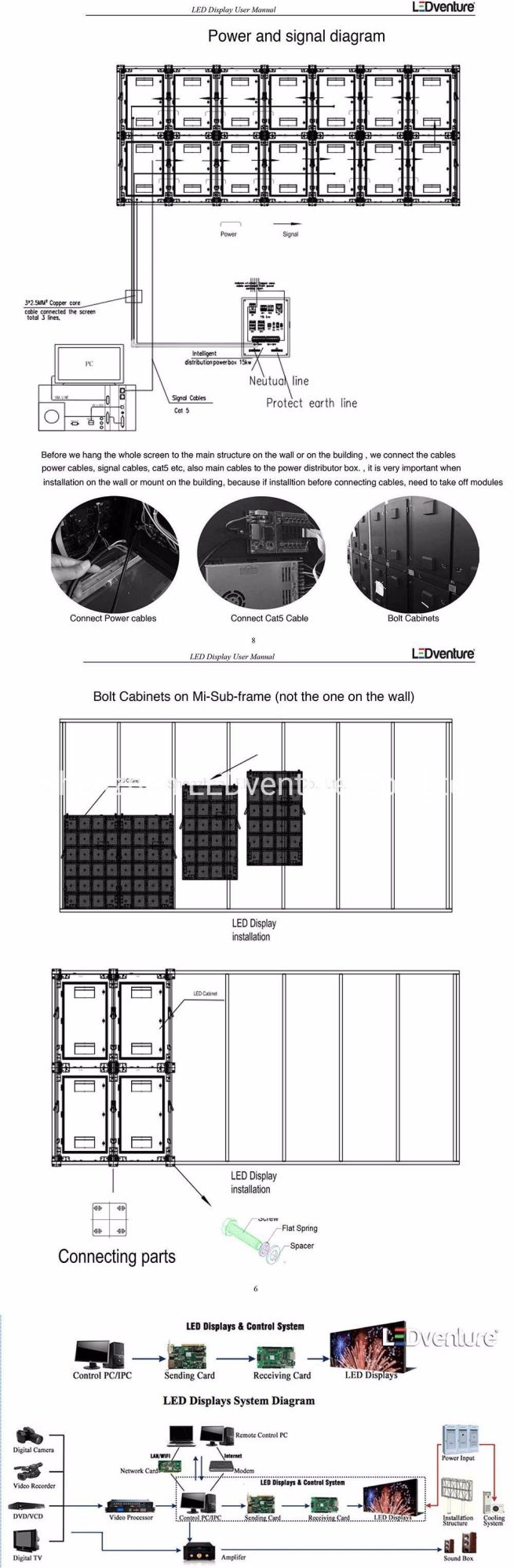

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

Packing by plywood cases, packing well and easy to load

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.
