ODM 0.5 Inch Single Digit 9 Segment LED Display with RoHS From Expert Manufacturer
Ningbo Lightkey Electronic Technology Co., Ltd.- Tube Chip Color:Single Color
- Display Function:Numbers and Some Alphabets
- Pixel Pitch:7 Segments and Dp
- Pixel Configuration:7 Segments and Dp
- Pixel Density:7 Segments,PC
- Scanning Mode:Static Scan
Base Info
- Model NO.:LD5016A,B
- System Operating Platform:Win
- Display Type:Segment LED Display
- Application:Shopping Guide, Meters and Instruments
- IP Rating:IP0
- Certification:RoHS, Reach
- Outline Dimensions:12.6X18.9X8mm
- Digit Height:0.5 Inch(12.7mm)
- Emitting Color:Red Color
- Dp Number:1PC
- Digit Number:1 Digit
- Chip Matrial:4-Element
- Transport Package:EPE Foam and Carton
- Specification:RoHS, REACH
- Trademark:LIGHTKEY
- Origin:China
- HS Code:8531200000
- Production Capacity:1000000PCS,Year
Description
Overview

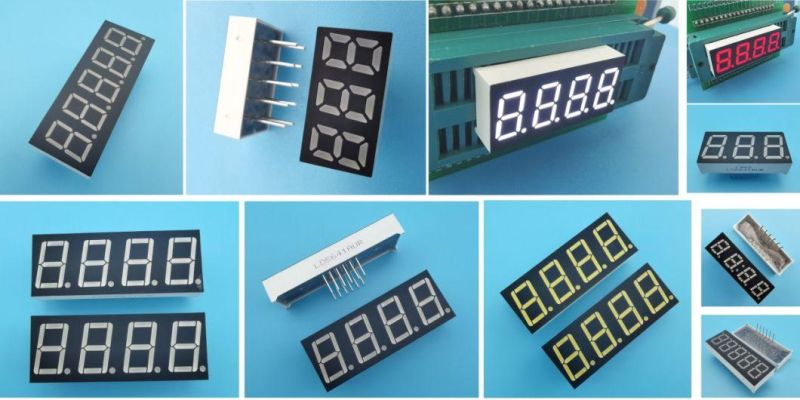

Detailed PhotosProduct NamePart No. Chip IV@IF=20mA Iv@IF=20mA Common Cathode Common
Anode Material Color WLD One Seg One DP Min. Typ. Min. Typ. LD5016AR LD5016BR GaAlAs Super Red 640 8 10 8 10 LD5016AD LD5016BD GaAlAs Hi-Red 640 18 25 18 25 LD5016AO LD5016BO GaAsP Orange 625 7 9 7 9 LD5016AY LD5016BY GaAsP Yellow 588 8 10 8 10 LD5016AG LD5016BG GaP Green 568 7 9 7 9 LD5016AUR LD5016BUR AlGaInP Ultra Red 640 30 45 30 45 LD5016AUO LD5016BUO AlGaInP Ultra Orange 625 45 60 45 60 LD5016AUA LD5016BUA AlGaInP Ultra Amber 605 30 45 30 45 LD5016AUY LD5016BUY AlGaInP Ultra Yellow 595 30 45 30 45 LD5016AUG LD5016BUG AlGaInP Ultra Green 573 30 45 30 45 LD5016APG LD5016BPG InGaN Pure Green 525 120 300 120 300 LD5016AUB LD5016BUB InGaN Ultra Blue 470 30 45 30 45 LD5016AUW LD5016BUW InGaN Ultra White 100 120 100 120 Unit: nm mcd mcd mcd mcd Available Options
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.

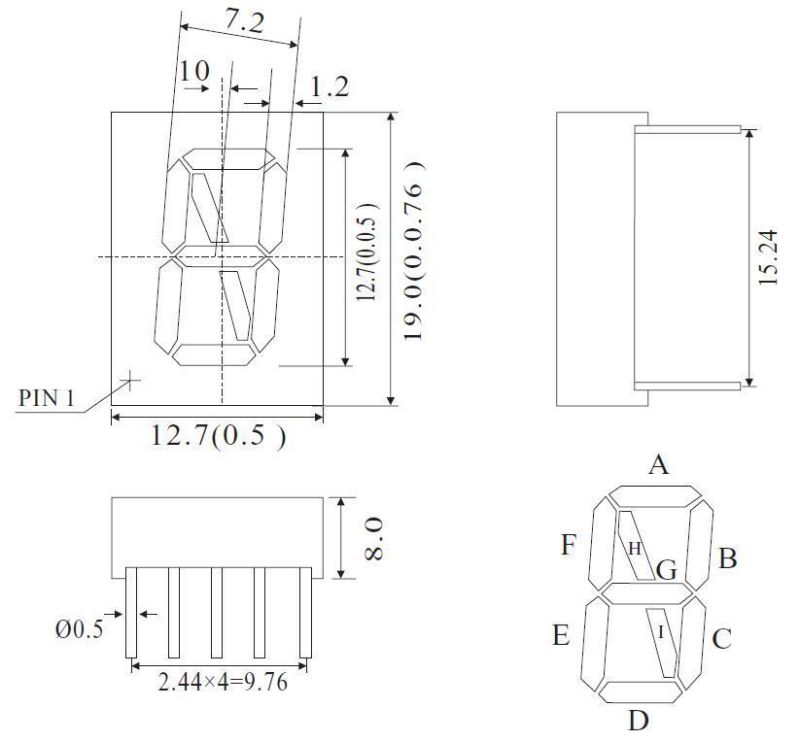

Package Dimensions
FeaturesSelection Guide

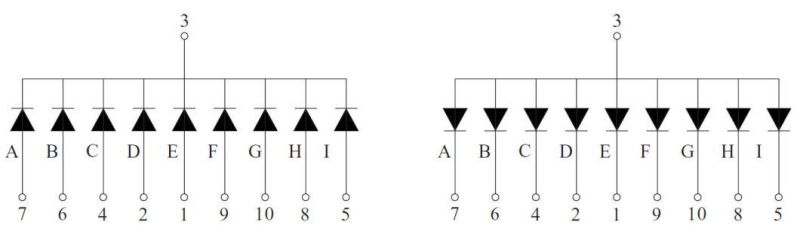

Anode
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
