• Model NO.：Outdoor LED Display P10-2S(high brightness)
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ISO9001
• Product Name：Outdoor LED Display P10-4s(High Brightness)
• Driver IC：Mbi5124
• Bightness CD/Sqm：7000CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Refresh Rate：1920Hz
• Color Temperature：6500-9500K
• Warranty：3 Years
• Transport Package：The Box Packaging
• Specification：320*160mm
• Trademark：hongking
• Origin：China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

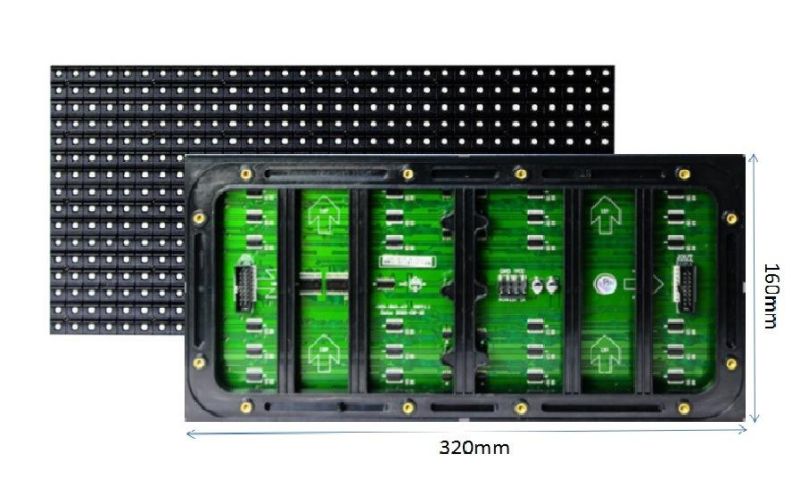

Module ParameterItemSpecification ParameterPixel Pitch, Resolution rate, size10mm, 32*16 Dots, 320*160mmPixel color, Pixel LED1R1G1B, SMD3535Working voltage, Module PowerDC5V, 48WDriving IC, Driving wayMBI5124, 1/2SHUBQP-HUB75(MRV220)-V1.1

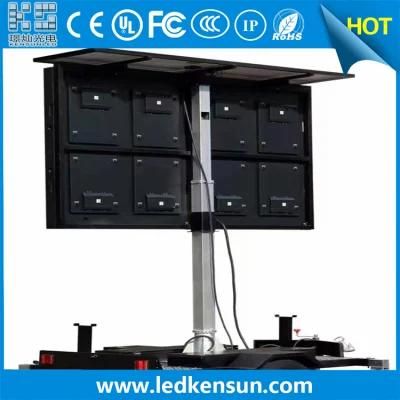

Cabinet:

• Durable and sturdy aluminum casting cabinet
• IP65 Waterproof

Product descripition:Technical  SpecificationsNOProduct nameoutdoor  P10  led display1Pixel Pitch(mm)10mm2Pixel configuration1R1G1B/  3Pixel density10000dots/m24Brightness 7000cd/m25Module size(W*H)320*160mm6Module Resolution (W*H)32 dots x 16dots7Module weight450g8Cabinet size (W*H)960mm×960mm9Drive ICMBI512410Drive mode1/2 scan11Viewing Angle(V/H)110ºC12Grey Scale65536 degree13Life time>100,000 Hours (50%)14MTBF>50,000 Hours15Operating VoltageAC110V/220V±10%17Screen Power ConsumptionMax: 680w/m2; Average:220w/m218Input Power Frequency50/60Hz19Operating temperature -30--60ºC20Humidity10%-95%21Refresh Rate≥1200HZ22Control MethodSynchronized with computer monitor23Color Temperature6500K-9500K24LED control systemLINSN,Nova-star,Colorlight is selectable25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10Application

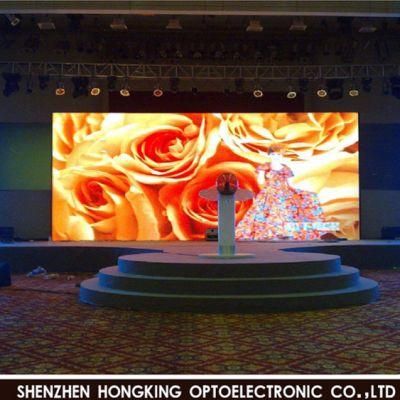

HONGKING LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.






OEM ODM Service:
Pixels Pitch: P1.6 P1.9 P2 P2.5 P3 P3.91 P4 P4.81 P5 P6 P6.25 P6.66 P7.62 P8 P8.94 P9.64 P10 P12 P13.33 P16 P18.75 P20 P25 P31.25 P37.5mm etc
LED Screen Size: 1x1mts / 2x2mst / 3x2mts / 3x3mets / 4x3mts / 4x4mts / 5x4mts / 6x4mts / 7x5mts / 8x5mts / 10x6mts etc


LED Cabinet Size: 480mmx480mm / 500mmx500mm / 576mmx576mm / 640mmx640mm / 800mmx800mm / 960mmx960mm / 1024mmx1024mm etc



Request for LED Display Quote

Please provide the following information so we can offer best service for you . After this we will provide quote to you as soon as possible.


1,Is your LED Display located Indoor, Semi-Outdoor or Outdoor, Mobile or Trailer (required)
 ()Indoor  ()Semi-Outdoor  ()Outdoor  ()Mobile  ()Trailer

2,What is the Length of your LED Display requirement  (required)
(  )Metres


3,What is the Height of your LED display  requirement? (required)
(  )Metres

4,What is the Optimal distance viewing to the LED Display? (required)
(  )Metres


5,What will be displayed on the LED display? (required)
()Text  ()Pictures  ()Videos  ()TV/Camera



6,I will usually program the LED display with the following frequency:
 ()Daily/Weekly & Disconnect  ()Stream Content Continually Online

7,I would like to connect to the LED display using: (required)
 ()Computer Connection control
 ()WiFi Connection control
 ()3G Connection control


Please upload any images that may assist with an understanding of your led display requirement:
Upload Images()

Yours Details
Full Name (required)

Email Address (required)

Contact No (required)

---------------------------------------------------------------------
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen
