14 and 16 Segment LED Alphanumeric Display with RoHS From Expert Manufacturer

Ningbo Lightkey Electronic Technology Co., Ltd.
  • Tube Chip Color：Single Color
  • Display Function：Numbers and Some Alphabets
  • Pixel Pitch：1-10mm
  • Pixel Configuration：14 Segments or 16 Segments
  • Pixel Density：16 Segments,PC
  • Scanning Mode：Static Scan

Base Info

  • Model NO.：LD5321, LD23013, LD10017.
  • System Operating Platform：Win
  • Display Type：Segment LED Display
  • Application：Shopping Guide, Meters and Instruments
  • IP Rating：IP0
  • Certification：RoHS, Reach
  • Character Height：0.5-2.3 Inches
  • Emitting Color：Single Color, Dual Color, RGB...
  • Dp Number：1-2PCS
  • Digit Number：1-2 Digit
  • Chip Matrial：3,4 Element
  • Transport Package：EPE Foam and Carton
  • Specification：RoHS, REACH
  • Trademark：LIGHTKEY
  • Origin：China
  • HS Code：8531200000
  • Production Capacity：1000000PCS,Year

Description

Overview Product Name

Available Options

14 and 16 Segment LED alphanumeric display

Available Digit Height:0.5 inch, 0.54 inch, 0.8 inch, 1 inch, 1.5 inch, and 2.3 inch.Available Emitting color:Red, yellow-green, orange, amber, yellow, pure green, blue, white, dual color and RGB.Available Face color:white, grey, and black.Available Segment Color:Red, white (milky), water clear, and yellow.Available Electrode:Common anode or common cathode
ColorElectrical Characteristics[1]Absolute Maximum Ratings[1]Forward Voltage@ IF=20mA                 Reverse
Current
VR=5VPower DissipationDC Forward CurrentPeak Forward Current[2]Typ.Max. Super RedPer Seg.1.82.2306025100Per DP1.82.2306025100 Hi-RedPer Seg.1.82.2306025100Per DP1.82.2306025100 OrangePer Seg.2.12.5308030100Per DP2.12.5308030100 YellowPer Seg.2.12.5308030100Per DP2.12.5308030100 GreenPer Seg.2.22.5308030100Per DP2.22.5308030100 Ultra RedPer Seg.1.92.6306030100Per DP1.92.6306030100 Ultra OrangePer Seg.22.6306530100Per DP22.6306530100 Ultra AmberPer Seg.22.6306530100Per DP22.6306530100 Ultra YellowPer Seg.22.6306530100Per DP22.6306530100 Ultra GreenPer Seg.2.12.6307530100Per DP2.12.6307530100 Pure GreenPer Seg.3.543011030100Per DP3.543011030100 Ultra BluePer Seg.3.543012030100Per DP3.543012030100 Ultra WhitePer Seg.3.543012030100Per DP3.543012030100 Unit:VVuAmWmAmA
 Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse.

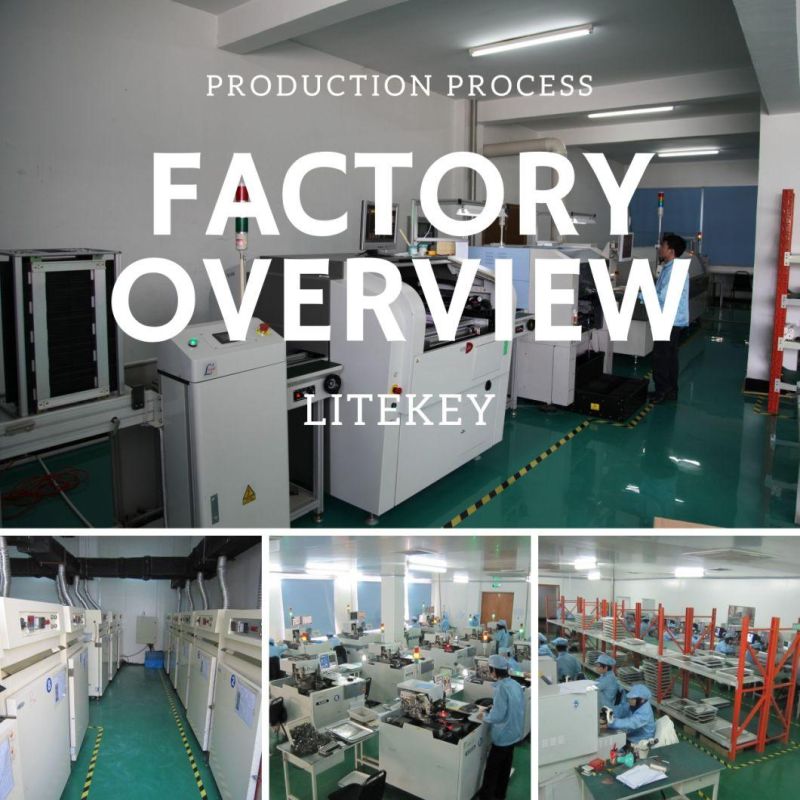

Factory Overview



14 and 16 Segment LED Alphanumeric Display with RoHS From Expert Manufacturer14 and 16 Segment LED Alphanumeric Display with RoHS From Expert Manufacturer




Our Services/Why choose Us

1. Professional service:  replied within 24 hours(at workdays).

2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.

4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.
