New Style! LED Sign Screen Trailer /Solar Panels Advertising Trailer
Jinhua Yongqiang Vehicles Factory- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：8mm
- Pixel Configuration：2R, 1G, 1B
- Display Function：Video Display
- Average Power Consumption：180W , m²
Base Info
- Model NO.：YQ-LED scree
- Pixel Density：6400 dot , m²
- Scanning Mode：Static Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE
- Transport Package：Carton
- Specification：2560*1536mm
- Trademark：YQ
- Origin：China
- HS Code：87163990
- Production Capacity：2000PCS,Month
Description
Basic Info.
Model NO. YQ-LED scree Pixel Density 6400 dot / m² Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE Transport Package Carton Specification 2560*1536mm Trademark YQ Origin China HS Code 87163990 Production Capacity 2000PCS/MonthProduct Description

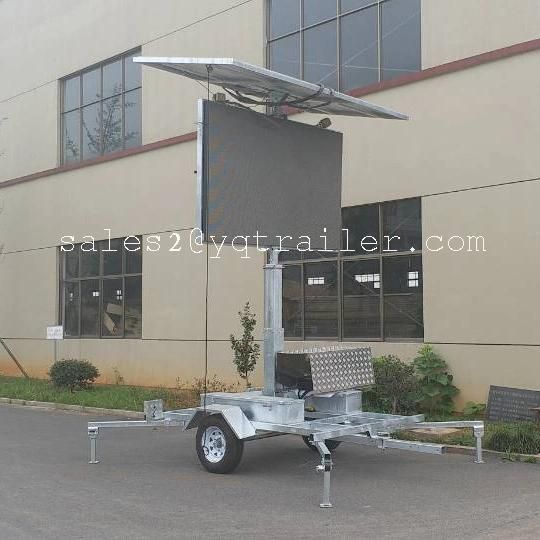

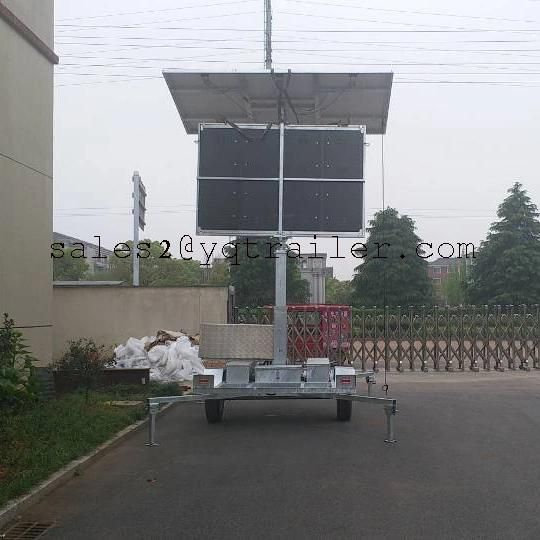

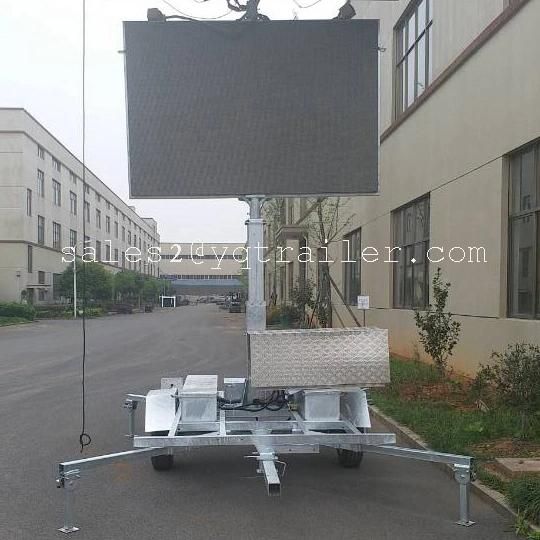

LED Sign Screen Trailer
Item No : YQ/T-AWA-LED

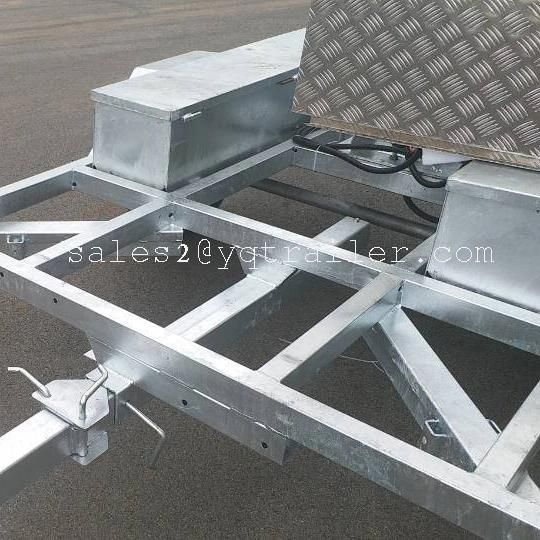

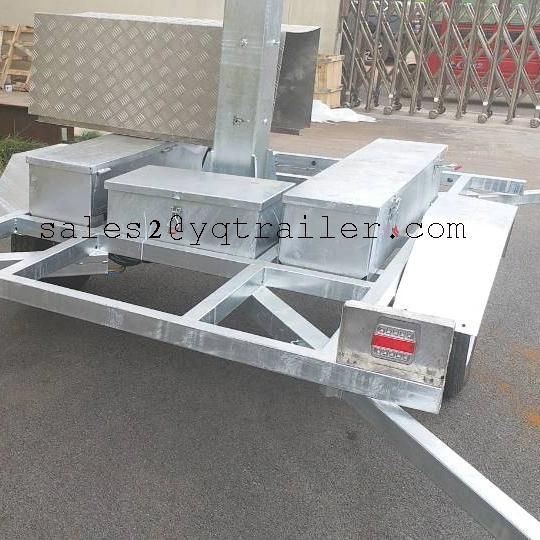

1) Chassis Size : 2460*1536mm
2) Screen size: 2560*1536mm
3) G.V.W : 750 kg
4) Tare :288kg
5) Max Loading : 462kg
6) Tire : DOT /E-Mark Approval 185R14C ( not include spare wheel )
7) 5 leaf spring (3.4.7 leaf spring can supply )
8 ) Coupler Size : according to customers rquest
9) Finish : hot dip galvanized
10) Axle :50*50*5mm tube
11) Frame work & draw bar : box tube steel 50*70*2.75mm
12) Pixel pitch: 8mm
13) Pixel configuration: SMD3535
14) Display brightness: >6000 nits (cd/m2)
15) View angle (horizontal): 120 degrees
16) View angle (vertical): 120 degrees
17) Refresh Rate: >800 Hz
18) Control input: USB
19) Operating voltage: 230V
20) Power consumption (average):3600W/SET (Peak: 1800W/SET)
21) working temperature: -20°C to +60°C
22) IP-rating: IP65
23) Operating system: Remote control, 3G wireless and PC optional
