Outdoor LED Display Full Color Screens (P10 mm LED Display)
Shenzhen Noveled Technology Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：220W , m²
Base Info
- Model NO.：PH10 mm
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, CCC, ETL
- LED Chip：Taiwan Epstar
- LED Lamp：SMD3535
- Module Size：320 mm X 160mm
- Cabinet Size：960mm X 960mm
- Cabinet Weight：45kg , PC
- Brightness：More Than 6500 CD
- Packing material：Wooden Case , Flight Case
- Gurantty Time：2 Years
- Best View Distance：10 M - 100 M
- Transport Package：Wooden Box
- Specification：320mm X 160mm
- Trademark：NVD
- Origin：Made-in-China
- HS Code：8528591090
- Production Capacity：3000sqm, Month
Description
Display and control featureStructure feature Specification Parameter Specification Parameter Pixel Pitch 10 mm Module size 320 mm*160 mm Pixel composing 1R1G1B Display resolution/module 32 dots*16 dots Wavelength (R) 625± 5 Standard cabinet size 960 mm*960 mm Wavelength (G) 522± 3 Weight per sqm 45 Kg/sqm Wavelength (B) 567± 3 Protection classification IP65 Wave Angle (H) 120° (H)/ 60° Install mode Wallmount, hung and stand structure LED package DIP 346 Cabinet Material Iron/Aluminum Density per sqm 10, 000 pixel Working power Display color 256*256*256 Specification Parameter Whiteness brightness ≥ 5500 Working voltage AC 220v/380v± 10% 47~64Hz Brightness level 128 grade Max power/sqm 750W/sqm Changing frame frequency 60 Hz Average power/sqm 400W/sqm Refresh 400 Hz Short circuit protection Yes Driving method 1/4 Constant Driving Led Lamp type Nichia/Cotco/Cree/Axt/Silan/Taiwan Control mode synchronous Working environment Display port DVI Specification Parameter Display mode 1024*768 /1024*1024 Environment Outdoor Out of control 1/10, 000 ( scattered) Working temperature --20~50c lifetime 100, 000 hours Working Humidity 10~90%

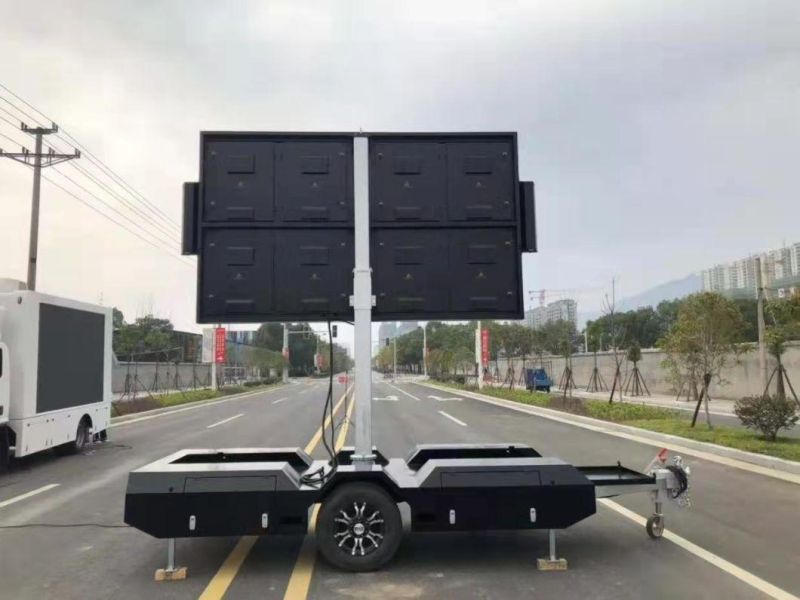

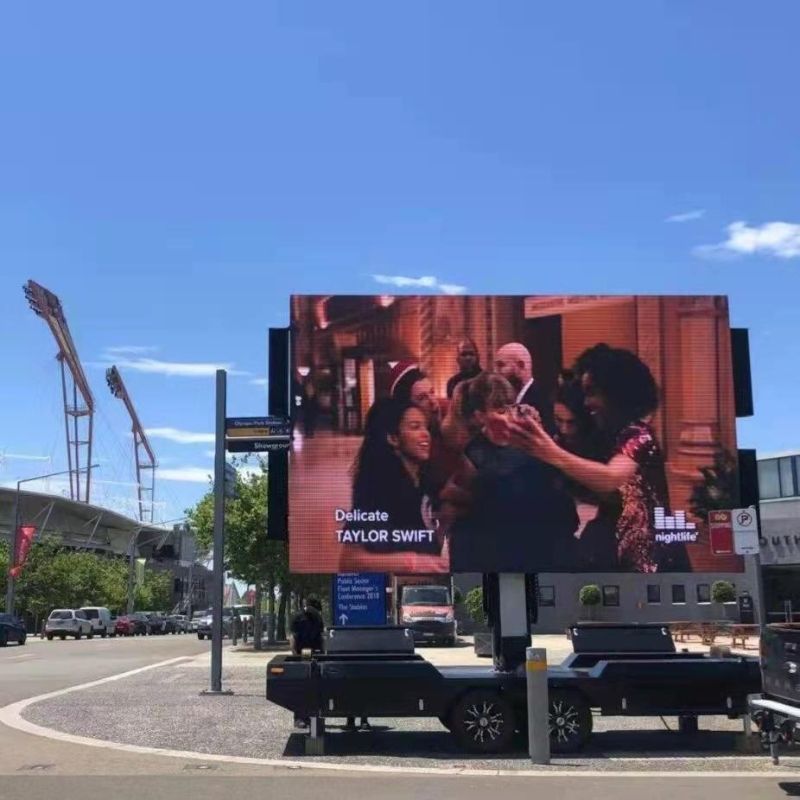

The p10 outdoor full color project reference as belowing
The screen aging in the factory
The other hot sell LED Display item as belowing :
FAQ
Q1: Can I have a order sample for Led display?
A: Yes, welcome sample order to check and test quality, Maxed samples are acceptable.
Q2: What about the lead time ?
A: Sample needs one week, mass production time needs 2-3 weeks for order quantity more than.
Q3: Do you have any MOQ limit for Led display order ?
A: Low MOQ, 1pc sample for checking is available.
Q4: How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL, UPS, FedEx or TNT, It usually take 3-5days to arrive , Airline and Sea shipping also optional.
Q5: How to proceed an order for Led display ?
A: Firstly, Let us know your requirement or application. Secondly we quote you according to your requirement or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly.we arrange the production. Q6: Is it ok to print my logo on the Led display product ? A: Yes, please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer the guarantee for the products ?
A: Yes, we offer 2-5 years warranty to our products. Q8: How do deal with the faulty ? A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send you spare parts with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation
