• Model NO.：Outdoor P6-8scan
• Pixel Density：10000dots,M2
• Scanning Mode：1,8scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ISO9001 ISO14001 FCC001 ISO14001 FCC
• Product Name：P6 Outdoor LED Display
• Driver IC：Mbi5124
• Bightness CD/Sqm：5500CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500K-9500K
• Warranty：3 Years
• Transport Package：Wooden Case, Flight Case, and Carton
• Specification：320*160mm or 192*192mm
• Trademark：hongking
• Origin：China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

NO.:Product nameP6 high definition rental led display1Pixel Pitch(mm)6mm2Pixel configuration1R1G1B/SMD2121 Black lamp3Pixel density27776dots/sqm4Brightness ≥7000cd/sqm5Module size(W*H)320mm×160mm6Module Resolution (W*H)32 dots x 32dots7Module weight400g8Cabinet size (W*H)768mm×768mm9Drive ICMBI512410Drive mode1/8scan11Viewing Angle(V/H)140  ºC12Grey Scale65536 degree13Life time>100,000 Hours (80%)14MTBF>50,000 Hours15Operating VoltageAC110V/220V±10%17Screen Power ConsumptionMax: 800w/sqm; Average:270w/sqm18Input Power Frequency50/60Hz19Operating temperature -30--60ºC20Humidity10%-95%21Refresh Rate≥1920HZ22Control MethodSynchronized with computer monitor23Color Temperature6500K-9500K  24LED control systemLINSN,Nova-star,Colorlight is selectable25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10

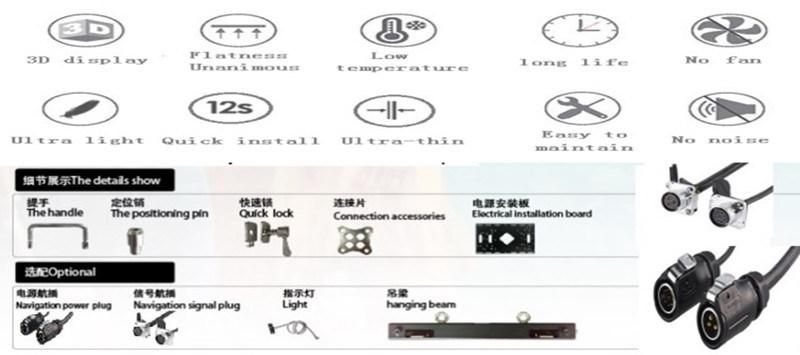

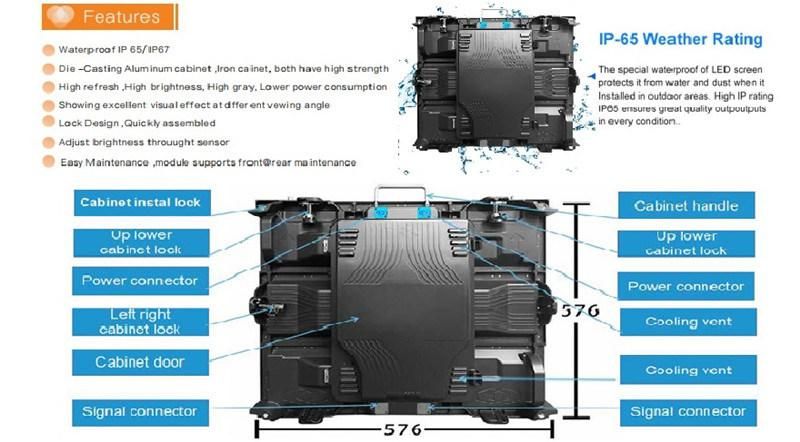

cabinet function





certification  :

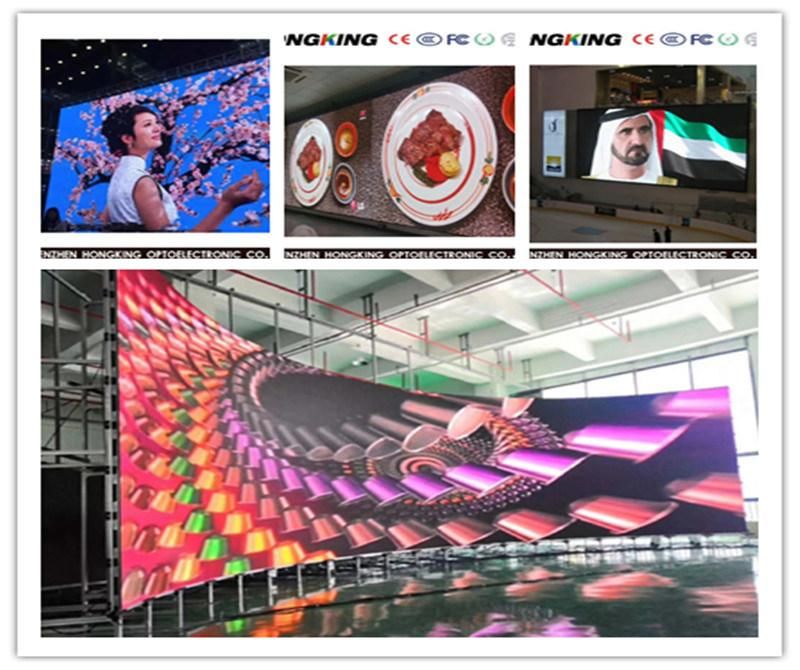

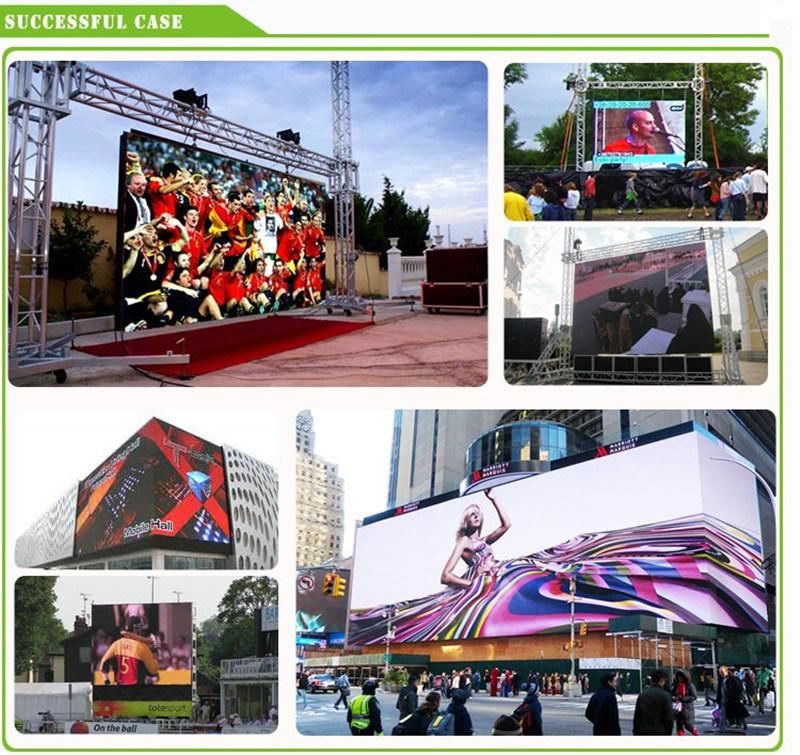

Product Application Cases:

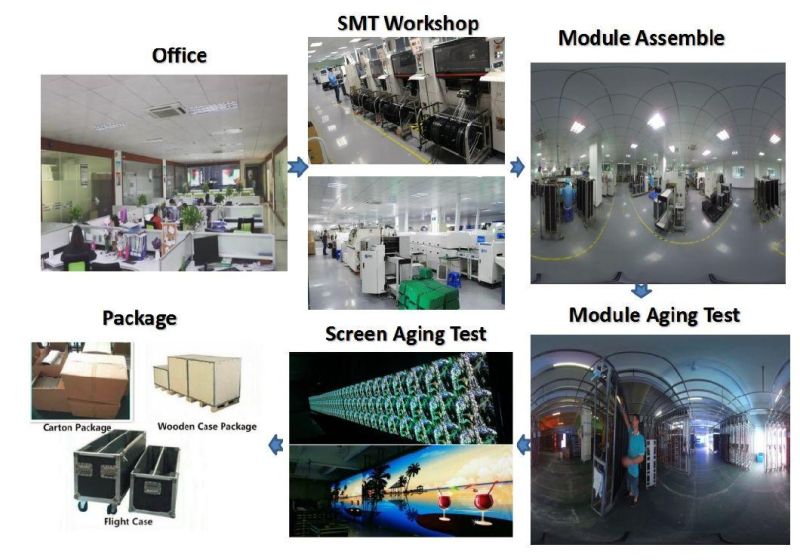

company workshop :


package:




Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery

Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days

Free sample or not: Sample is available,but need to pay the material cost and freight cost

Shipping port: Shenzhen, Mainland China

MOQ: 2 sqm for led screen,and10pcs for led module

Guarantee:Two years quality guarantee,after two years,we will ask for material cost only,customer pay freight cost

Package and fast shipping
Anti-shaking wooden case
Carton box
Flight case
The transportation can be support by air ,by sea ,or by express as request


hongking  always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

FAQ :
 1. Q: Can I get some samples?
     A: Yes,sample order is available for quality check and market test.
 2. Q: What's your payment term? How long is your delivery time ?
     A: We accept T/T ,ALIBABA Trade Assurance ,Paypal ,Western Union ,Money Gram, and Cash
 At least 30- 50% deposit in advance, and the balance should be paid before delivery. Our average Production time is 7-18working days after receiving the deposit.If your order is rapidly urgent,we can arrange your order firstly.
3. Q: How long is the warranty period ?
    A:  Non-artificial damage,  2-3 years warranty
4. Q: Do you have the products in stock?
    A: Yes ,of course
5. Q: Freight Cost?
    A: The shipping cost depends on different weight;
         We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
    A: Quality is priority. Every product will be fully assembled and carefully tested before packing
and shipping.
7. Q:How can I get technical support?
    A: We treasure every customer that shake hands with our Hongking.
        We offer youTEAMVIEWER help by Online Video Or can send professional engineer to your city to offer on-site guide .
8. Q:Is Available to print customer required logo on your led product ?
    A: Surely it is .Please inform and confirm the logo design details with our team ahead of the production.Then,we will follow your requirement.
