• Pixel Density：43264dots,M2
• Scanning Mode：1,13 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, CCC, ISO9001 ISO14001 FCC001 ISO14001 FCC
• Module Size：250*250mm
• Driver IC：Mbi5153
• Bightness：5000CD,M2
• Refreshing Rate：3840Hz
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500-9500K
• Grey Scale：65536 Degree
• Transport Package：Flight Case, Wooden Case, Carton
• Specification：Outdoor LED Display P4.81
• Trademark：HONGKING
• Origin：China
• HS Code：8528591090
• Production Capacity：50000 Sqm,Year

NO.:Product nameOutdoor P4.81 high definition rental led display1Pixel Pitch(mm)4.81mm2Pixel configuration1R1G1B/SMD19213Pixel density43264dots/sqm4Brightness ≥5000cd/sqm5Module size(W*H)250mm×250mm6Module Resolution (W*H)52 dots x 52dots7Module weight600g8Cabinet size (W*H)500mm×500mm9Drive ICMBI5153 or ICN215310Drive mode1/13 scan11Viewing Angle(V/H)140 ºC12Grey Scale65536 degree13Life time>100,000 Hours(80%)14MTBF>50,000 Hours15Operating VoltageAC110V/220V±10%17Screen Power ConsumptionMax: 900w/sqm; Average:300w/sqm18Input Power Frequency50/60Hz19Operating temperature -30--60degree20Humidity10%-95%21Refresh Rate≥3840HZ22Control MethodSynchronized with computer monitor23Color Temperature6500K-9500K24LED control systemLINSN,Nova-star,Colorlight is selectable25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10Products:
LED Display /LED display screen/LED sign/LED video wall
1. Model No.: P1.9,P2, P2.5, P3,P3.91, P4, P4.81,P5, P6, P7.62, P8, P10 indoor and outdoor
2. Display Color: 256*256*256
3. Raw Materials: MBI IC, Chuanglian Power Supply, Meanwel Power Supply,Copper power and data cable .

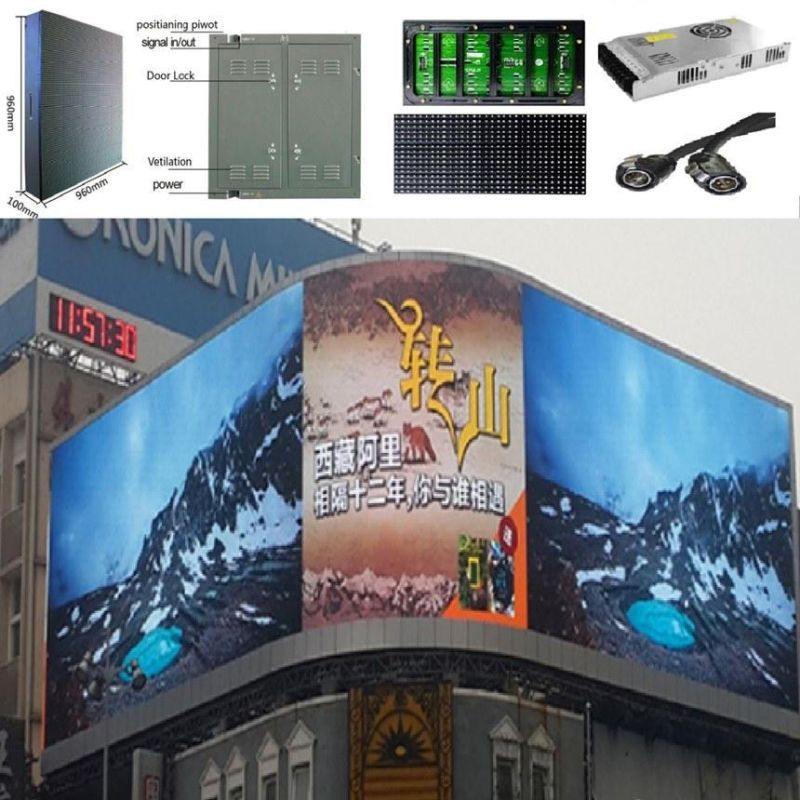

4. Cabinet: Standard cabinet, simple cabinet, customized cabinet, Die- casting cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance
5. Package: Flight case, wooden box package & carton box.
7. Guarantee: 3 year

Application:

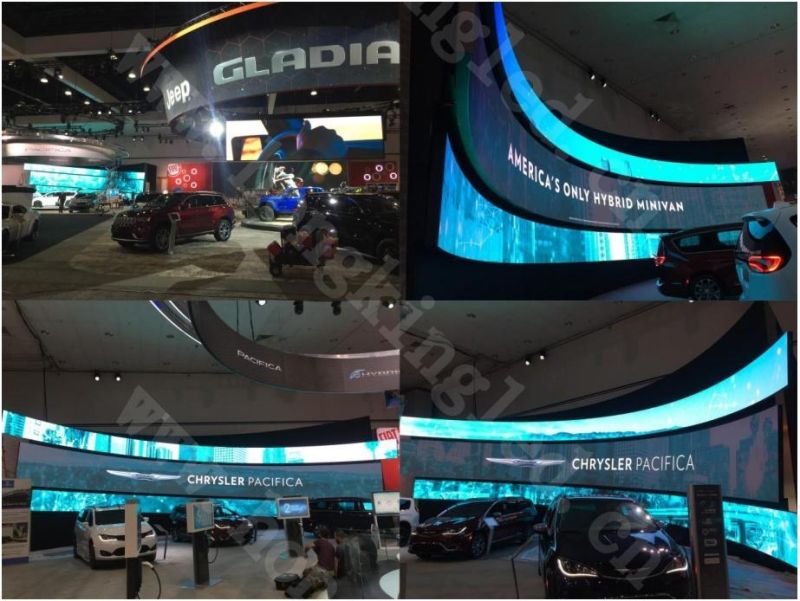

Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities.

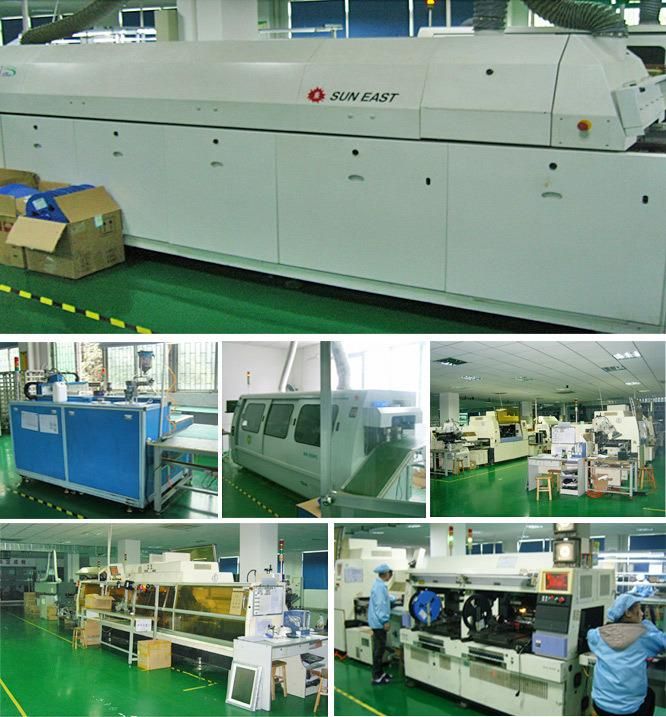

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

Trade Terms:
1. Package: anti-shaking wooden package, air flight case or carton package.
2. Payment: T/T, 30% deposit before production, 70% balance to be paid before delivery.
3. Free to support and train your operator.
4. Shipping port: Shenzhen China.
5. Warranty time: 3 year
6. Delivery time: 5-20 working days.
