• Model NO.：LW-FO 5
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Pixel Pitch：10 mm
• Configuration：SMD3535
• Module Size：320X160 mm
• Cabinet Size：960X960 or Other Size
• Cabinet Weight：36kg
• Brightness：up 7000CD,M2
• Driver Mode：1,2 Scan
• Transport Package：Wooden,Cartoon Case
• Specification：CE UL Rohs etc
• Trademark：LED World, OEM, ODM
• Origin：Made in China
• HS Code：8528591090
• Production Capacity：10000sqm Per Moth

ItemsP5mmP6mmP8mmP10mmP10mmPixel1R1G1B1R1G1B1R1G1B1R1G1B1R1G1BConfigurationSMD2727SMD3535SMD3535SMD3535DIPPixel Pitch5mm6mm8mm10mm10mmPixel Density40,00027,77715,62510,00010,000Module Size(mm)160x160192x96or 192x192256x128320x160160x160Pixels/Module32x3232x16 or 32x3232x1632x1616x16Cabinet Size(mm)960x960960x9601024x1024960x960960x960Pixels/Cabinet192x192160x160128x12896x9696x96Cabinet Weight36KG36KG41KG36KG36KGBrightness>5500cd/>6000cd/>5000cd/>7000cd/>7000cd/Viewing Distance>5m>6m>8m>10m>10mPowerMax: 1300Max: 1300Max: 1000Max: 1000Max: 1000Consumption(W/)Ave: 300Ave: 260Ave: 260Ave: 300Ave: 300Driver Mode1/8 scan1/4 scan or 1/81/4 scan or 1/81/2 scan1/4 scanViewing AngleH: 120°;   V: 120° Cabinet MaterialCold Rolled Steel or aluminiumRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +50ºCOperating Humidity10% - 90%Gray ScaleRed, Green and Blue each 16KDisplay Color4096 BillionIP RatingFront IP65Display CapabilityText, Graph and VideoNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than just two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.

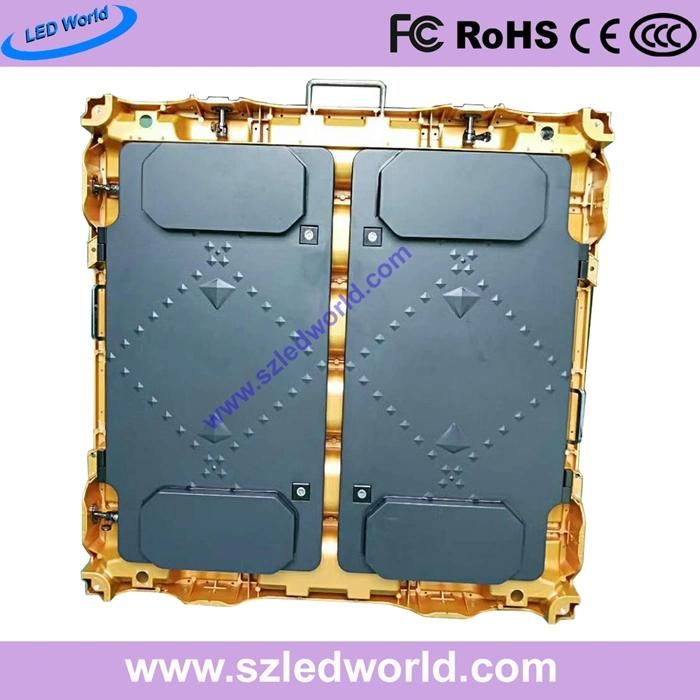

Applications:Business Organizationssuper market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security company, insurance company, post office, hospital, school, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.Product detail:

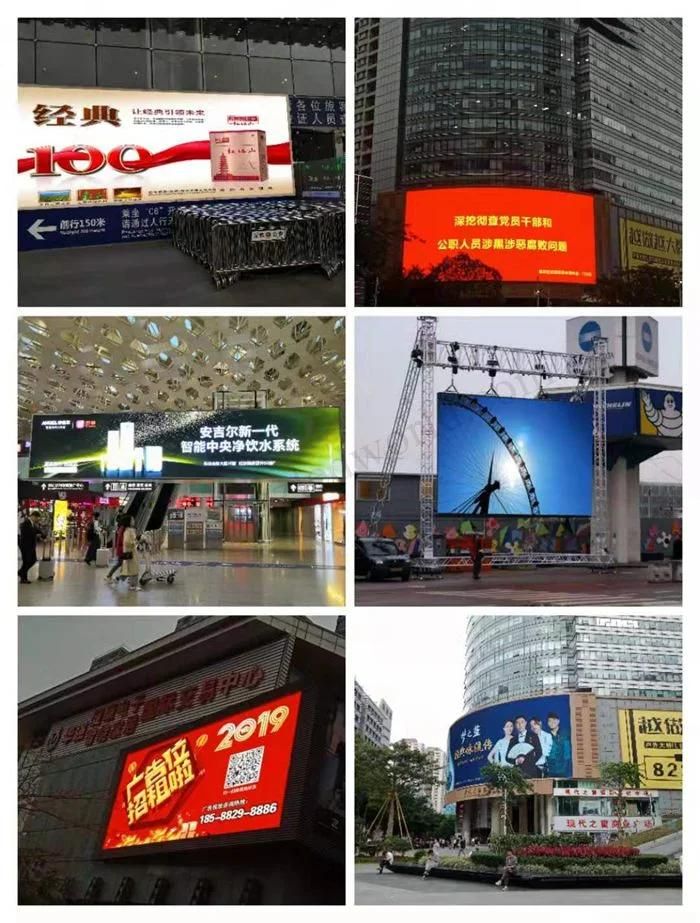

project case:




Our company:
Shenzhen LED World CO.,LTD  was founded  in 2009, focusing on the LED technology research and LED full color display production ,sales and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology,industry veteran,high-quality,high standards of moden management  team ,a high level of professional and technical developer,has many years of operating  experience and well-trained, a significant number of skilled workers.Company strict implementation of  7 S management standard professional management standards , has passed 3C,CE,FCC,RoHS,ISO9001-2009 quality system certification,reliable quality ,advanced technology,automation of form a complete set of  products and continuous development of our roots . products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand ,Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

workshop:




Trade term:
Warranty time: 2years;
Delivery time: 10-25 working days;
Payment: T,T  / West Union;
Transportation: By sea or air or Express;

Certification:



FAQ:
1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.

SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit       (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.
