P20 DIP Outdoor Perimeter LED Big Screen
Shenzhen LEDventure Co., Ltd.- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：20mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：P20
- Pixel Density：3906 Pixels,M2 ,10000 Pixels,M2
- Scanning Mode：Static Scan
- Display Type：LED Video Display
- Application：Perimeter Stadium,Sports Rental
- Certification：CE, RoHS, UL, CCC, ETL
- Repair Access：Rear Access
- Driver IC：Mbi5124
- Connector：Nuetrick,Seetronic
- Power Supply：MW
- Brightness：>7500 Nits
- Cabinet：Aluminium Perimeters Type
- LED Brand：Ledventure,CREE
- LED Chip：Epistar,CREE
- Refresh Rate：>1920 Hz
- Grey Scale：16 Bits
- Transport Package：Flight Cases
- Specification：1280x960
- Trademark：LEDventure
- Origin：China
- HS Code：852859109
- Production Capacity：4000m2,Month
Description
Basic Info.
Model NO. P20 Pixel Density 3906 Pixels/M2 /10000 Pixels/M2 Scanning Mode Static Scan Display Type LED Video Display Application Perimeter Stadium/Sports Rental Certification CE, RoHS, UL, CCC, ETL Repair Access Rear Access Driver IC Mbi5124 Connector Nuetrick/Seetronic Power Supply MW Brightness >7500 Nits Cabinet Aluminium Perimeters Type LED Brand Ledventure/CREE LED Chip Epistar/CREE Refresh Rate >1920 Hz Grey Scale 16 Bits Transport Package Flight Cases Specification 1280x960 Trademark LEDventure Origin China HS Code 852859109 Production Capacity 4000m2/MonthProduct Description
P20 DIP Outdoor Perimeter Led Big Screen
1.Main Product Features
1) We are not producer only, but also offer the whole solution for your specific LED display project, include: control system, software, installation drawing and tech support, etc.2) Outdoor Fixed installation cabinet: Waterproof Protection, Standard: IP65/IP54.
3) Recommended size ratio 16:9. 4:3 Working Temperature: -30ºC ~ 40ºC.
4) Multi-function side holes, Handle for moving.
5) Weight: 50KG/m2 Size: Customized.
6) Reference installation method: wall mounted curved type single/double pillar etc.
2. Main Technical Specifications
| PARAMETERS | DESCRIPTION |
| Brightness | ≥7500 Nits |
| Viewing angle | H: 120°; V: 60° |
| Panel weight | 50 kg |
| Panel size | W1280mm x H960mm x D100mm |
| Panel material | Aluminum |
| Ingress protection | Front/Rear: IP65/IP54 |
| Operating Temperature/Humidity | -20ºC - +50ºC/ 10-90%RH |
| Storage Temperature/Humidity | -40ºC - +60ºC/ 10-90%RH |
| Pixel configuration | 1R1G1B |
| Pixel Pitch | 20mm |
| Pixels per panel | 64x48Dots |
| Physical density | 2500 pixels / m 2 |
| Recommended viewing distance | 20M |
| Color | 4.4 trillion |
| Gray scale | 65536 levels per color |
| Brightness control | 256 levels of each color(manually),8 levels of each color(automatically) |
| Contrast ratio | 1000:1 |
| Processing depth | 16bits |
| Video frame rate | 1920Hz |
| Input voltage | 110-220VAC+-10% |
| Input power frequency | 50-60Hz |
| Input power <max> | 130watts |
| Input power <typical> | 450watts |
| Life Time | ≥100,000 Hours |
| LED Wavelength | R:620-625nm G:520-523nm B:470-473nm |
| Driving Method | 1/1 scan |
| LED Encapsulation | DIP346 |
| Input signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION, etc |
| Certifications | CCC,CE,FCC,ETL,IP65,EMC |
3. Application

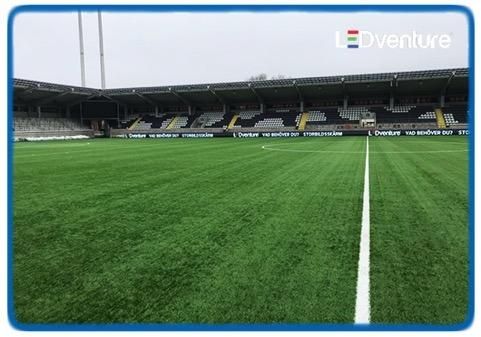

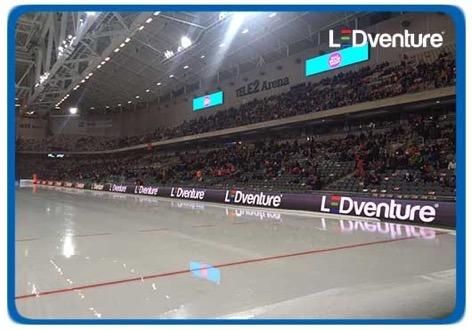

Sport stadium perimeter led screen is a series which use for sport stadium for Brand marketing during sport events, such as World cup etc. the advertising is simple with companies LOGOS, such as NIKE, COCACALA,SONY etc, this series led screen require very strictly in led screen cabinet design, soft mask to protect led ,also security glue, our sport stadium led screen is specific designly with standing legs, viewing adjustable parts, both available standing and angle-standing for target audiences.
