• Model NO.：P8 LED Display Screen
• Pixel Density：15625 Dots,M2
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ISO9001
• Sell Well：768*768mm
• Transport Package：Wooden Case, Flight Case and Carton
• Specification：256x256mm
• Trademark：HONGKING
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：1000sqm,Month

Basic Info.

Model NO. P8 LED Display Screen Pixel Density 15625 Dots/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ISO9001 Sell Well 768*768mm Transport Package Wooden Case, Flight Case and Carton Specification 256x256mm Trademark HONGKING Origin Shenzhen China HS Code 8528591090 Production Capacity 1000sqm/Month

Product Description

P8 Indoor Outdoor LED Display Screen Billboard for Advertising

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807

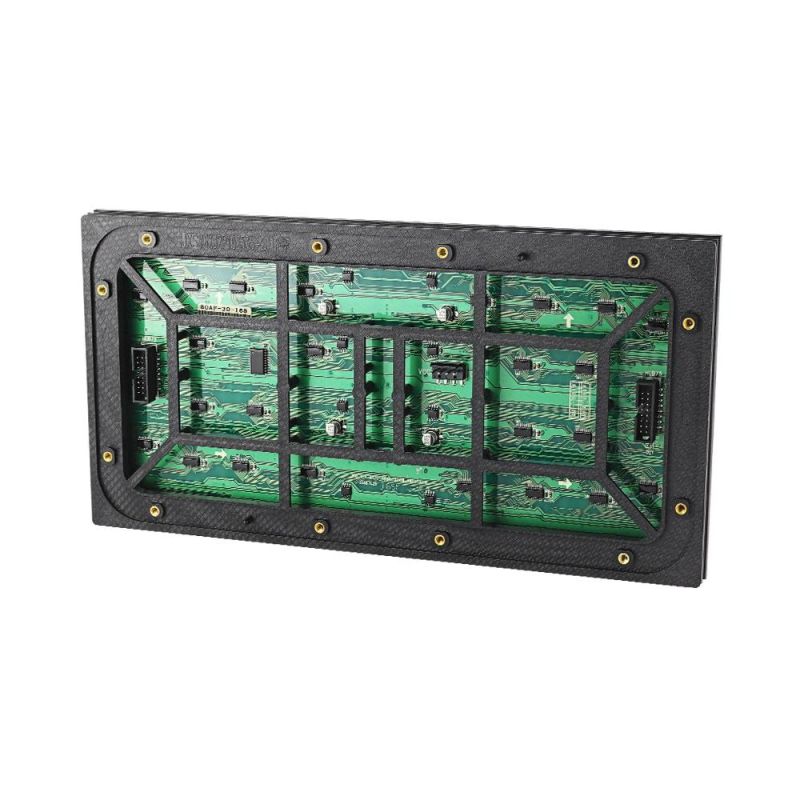

Modules size :

NO.:
1	Pixel Pitch(mm)	8mm
2	Pixel configuration	1R1G1B/SMD3535
3	Pixel density	15625dots/sqm
4	Brightness	≥5800cd/sqm
5	Module size(W*H)	320mm×160mm
6	Module Resolution (W*H)	40dots x20dots
7	Module weight	500g
8	Cabinet size (W*H)	(512mm×512mm) or (960mm×960mm)
9	Drive IC	MBI5124
10	Drive mode	1/5 scan
11	Viewing Angle(V/H)	140 ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours(50%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Max: 900w/sqm ; Average:300w/sqm
18	Input Power Frequency	50/60Hz
19	Operating temperature	-30--60ºC
20	Humidity	10%-95%
21	Refresh Rate	≥1600HZ
22	Control Method	Synchronized with computer monitor
23	Color Temperature	6500K-9500K
24	LED control system	LINSN,Nova-star,Colorlight is selectable
25	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
26	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10

1. Function and Technology Character
    (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
    (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
    (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
    (4) Line-Double technology is adopted for the picture adjustment.
    (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
    (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
