• Model NO.：P4.8
• Pixel Density：43264 Pixels,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>6500nits
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• Cabinet：Alu,Steel
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP31
• Viewing Distance：10-50m
• Service Solution：Rear + Front
• Weight：50kg
• Installation：Standing
• OS Platform：Windows
• Transport Package：Plywood Cases
• Specification：500x1000mm,1000x1000mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

Item

P10 P12.5 P16 P20 full color Indoor outdoor stadium sport perimeter led display screen

Model Number

P10 to P20

Pixel Pitch

10mm-20mm

Pixel Density(pixels/M2)

2500 -10000 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module size(mm)

320x160mm

Module Resolution(pixels)

32*16

Min.Viewing Distance(m)

10-20

Brightness(nits)

1500(indoor) / >6500(outdoor)

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP31(indoor) / IP65(outdoor)

Cabinet Size(mm)

1280x800mm, 1200x900mm, 1280x896mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

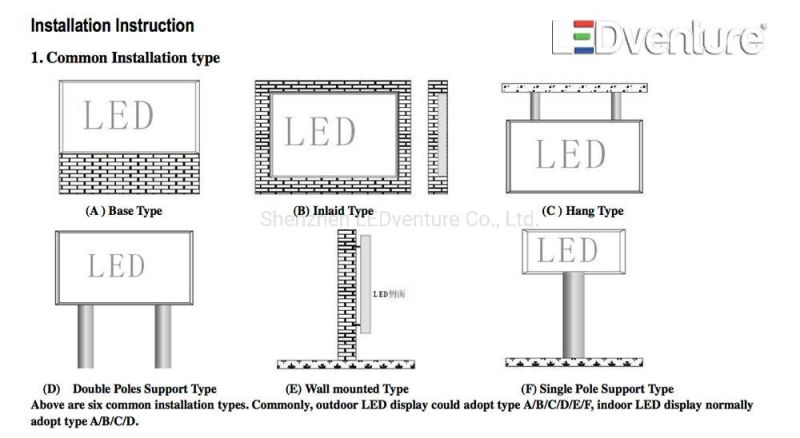

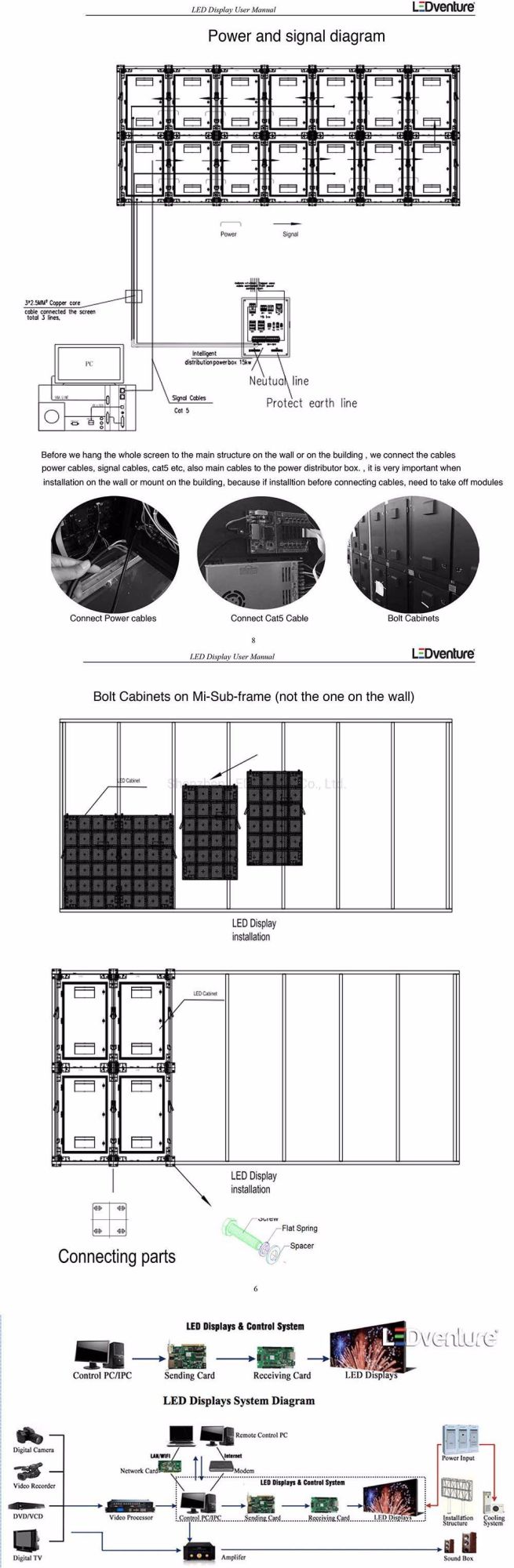

Part 5: Installation methods, P10 P12.5 P16 P20 full color Indoor outdoor stadium sport perimeter led display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

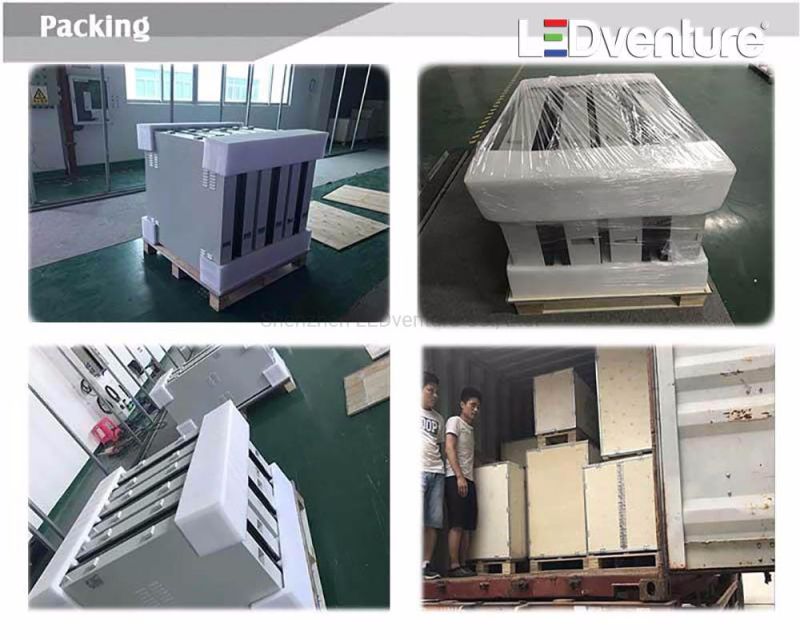

Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.

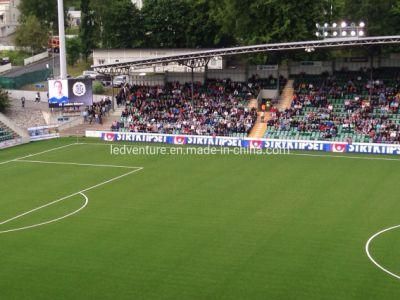

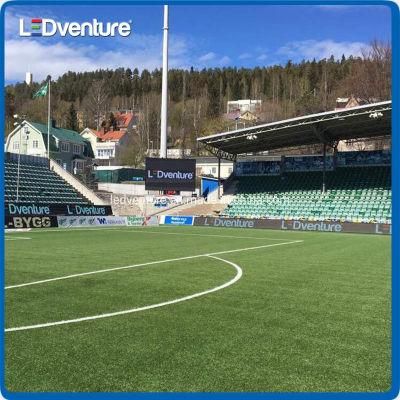

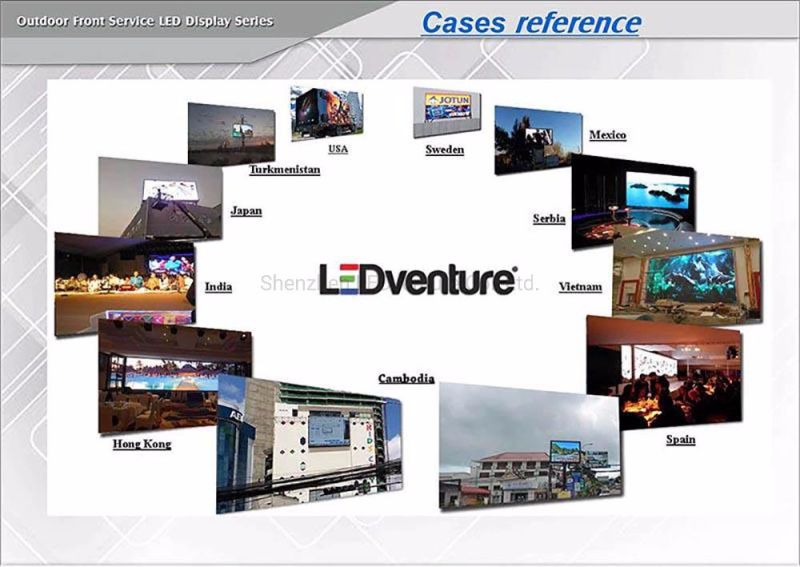

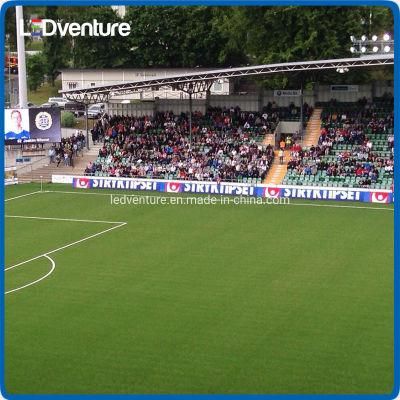

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,




Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
