High Quality Outdoor Building LED Big Screen Panel Display

Shenzhen FWS Technology Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP54
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display

Base Info

  • Model NO.：p6
  • Application：Advertising
  • Certification：CE, RoHS, UL, CCC, ETL
  • Deliver Time：15-20 Days
  • Warranty Period：3years
  • Density：27777 Dots
  • Pixel：6mm
  • Module Size：160X160mm
  • Average Voltage：300W,Sqm
  • Max Average Voltage：880 W,Sqm
  • Lifetime：100,000 Hrs
  • Power Supply：Chuanglian Genergy Mingwell(Ce,UL.CF)
  • LED Lamp：SMD3535
  • Transport Package：Flight Case
  • Specification：576*576mm
  • Trademark：FWS
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：10000sqm,Month

Description

LED LampTypeSMD3535BrandNationstarArrangement1R1G1BChip parametersRed (620-625nm) IV:(800-960mcd)Chip parametersGreen (520-525nm) IV:(1350-1650mcd)Chip parametersBlue (470-475nm) IV:(330-400mcd)LED ModulePixel Pitch6mmModule Size192×192mmModule Resolution32×32=1024(Dots)Module Weight0.4kgLED CabinetPixel Density27777 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution96×96=9216(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)576×576×95mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet3×3=9(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialAluminum-magnesium alloy CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight8kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>7000cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle120(Horizontal), 120(Vertical)Life-span100, 000 hoursNearest Viewing Distance9mProtection Level(front/back)IP66/IP54Power Consumption (Max)1200 w/sqmMalfunction Dot Rateless than 0.0001Power Consumption (Average)300 w/sqmWorking Temperature-30oC-50oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>1000HzDrive Mode/Driver PositionConstant driving 1/8 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 ,Windows 7 and XPSoftwareLED Studio(FWS-linsn)Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB, RJ45, HDMI(Sold separately)

Features:

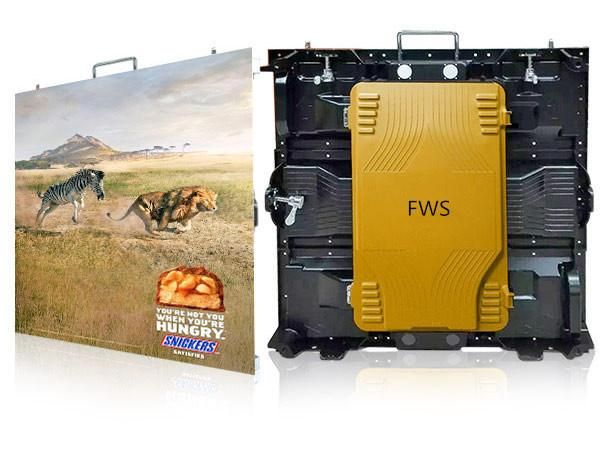

 Aluminum magnesium alloy cabinet never deformation and features with beautiful appearance and lightweight.
 Ultra-slim cabinet decline the volume of flight case and transportation cost.
 Seamless splice make more cabinet in one without any gap.
 Fast lock and spring plunger design for fast install and dismantle. Especially suitable for stage show, concert, promotion, exhibition and sport game live use.
 Die-casting aluminum magnesium alloy feature with low power consumption, automatic heat dissipation.
 Power has been inset in the cabinet and signal work lamp help you fast detect fault and fast fix it.
 IP66 waterproof rate make it suitable for any outdoor environment.
 Lifetime free maintenance and offer online technical service.

High Quality Outdoor Building LED Big Screen Panel Display
Get Every Detail in picture
We spend some time with every detail of the 576mm LED Screen Rental, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen
High Quality Outdoor Building LED Big Screen Panel Display
High Refresh Rate

The 768mm LED Screen Rental is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 800Hz, producing best quality outputs in form of pictures, videos and texts.



High Quality Outdoor Building LED Big Screen Panel Display
High Gray Scale-Better Picture
The 960mm LED Screen Rental is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and 16bit gray scale ensures the picture quality remains seamless.
