• Model NO.：P7.81
• Pixel Density：8197
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Shopping Guide
• Certification：CE, RoHS, UL, CCC, ETL
• Transport Package：Plywood Case
• Specification：500x1000mm Cabinet
• Trademark：LEDventure
• Origin：China
• Production Capacity：4000m2,Month

Basic Info.

Model NO. P7.81 Pixel Density 8197 Scanning Mode 1/16 Scan Display Type LED Video Display Application Shopping Guide Certification CE, RoHS, UL, CCC, ETL Transport Package Plywood Case Specification 500x1000mm Cabinet Trademark LEDventure Origin China Production Capacity 4000m2/Month

Product Description

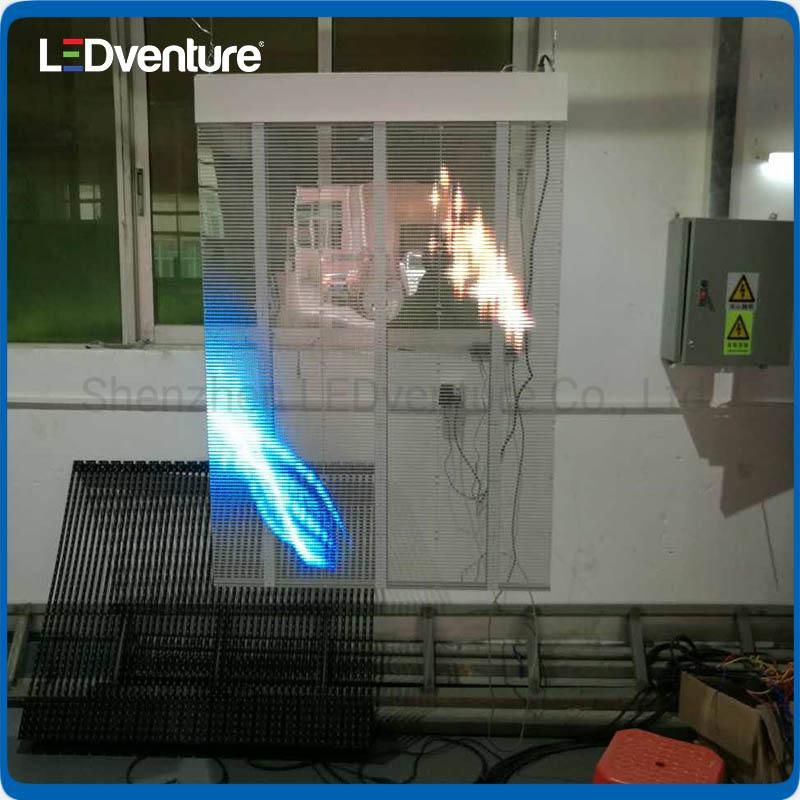

P7.81 Transparent Glass Led Sign

1.Main Features And Functions

LED transparent screen similar to the LED glass screen. As the name suggests, it is the LED display for the pursuit of better permeability, reduce or change the material from the product. Most of this screen is used to install a glass place, it is also known as transparent screen.
1. 1 The larger the distance, the greater the permeability.
Industry P8 glass screen permeability of about 45%, while the LV-G P7.8 transparent screen can do 65% permeability! The highest product can achieve more than 80% of the permeability.
1.2. The smaller the point spacing, the better the clarity of the screen when playing video. Industry can produce a minimum glass screen spacing of 5mm; LV-G as transparent screen minimum spacing of 3.9mm, and 3.9mm has been mass production, in Shanghai, Shanxi, Xinjiang, Southeast Asia, Europe and the United States and other places have project case.
1.3 The box 500 * 500/ 500 * 1000 easy disassembly.
1.4 Easy to install. Now the glass screen on the market, almost all of the use of glue placement, installation costs are high, and the use of glue for some time after the aging, fall off, become the main reason for the glass screen sales, but also cause serious security risks. LV-G as the transparent screen that can lift the equipment can also be installed, but also made TV screen, advertising machine screen, stand cabinet screen. Good security, low installation costs.
1.5 Maintenance is very simple. Module size is 250*250mm,fast and simple, low maintenance costs, eliminating technical distress

2. Main Technical Specifications

PARAMETERS	DESCRIPTION
Brightness	≥5500 Nits
Viewing angle	H: 120°; V: 120°
Panel weight	7kg
Panel size	W500mm x H1000mm
Panel material	Aluminum
Ingress protection	Front/Rear: IP43
Operating Temperature/Humidity	-20ºC - +50ºC/ 10-90%RH
Storage Temperature/Humidity	-40ºC - +60ºC/ 10-90%RH
Pixel configuration	1R1G1B
Pixel Pitch	7.81mm
Pixels per panel	64x128Dots
Physical density	8197pixels / m 2
Recommended viewing distance	4M
Color	4.4 trillion
Gray scale	65536 levels per color
Brightness control	256 levels of each color(manually),8 levels of each color(automatically)
Contrast ratio	1000:1
Processing depth	16bits
Video frame rate	1920Hz
Input voltage	110-220VAC+-10%
Input power frequency	50-60Hz
Input power <max>	200watts
Input power <typical>	100watts
Life Time	≥100,000 Hours
LED Wavelength	R:620-625nm  G:525-529nm  B:472-478nm
Driving Method	1/16 scan
LED Encapsulation	SMD1921
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION, etc
Certifications	CCC,CE,FCC,ETL,IP65,EMC

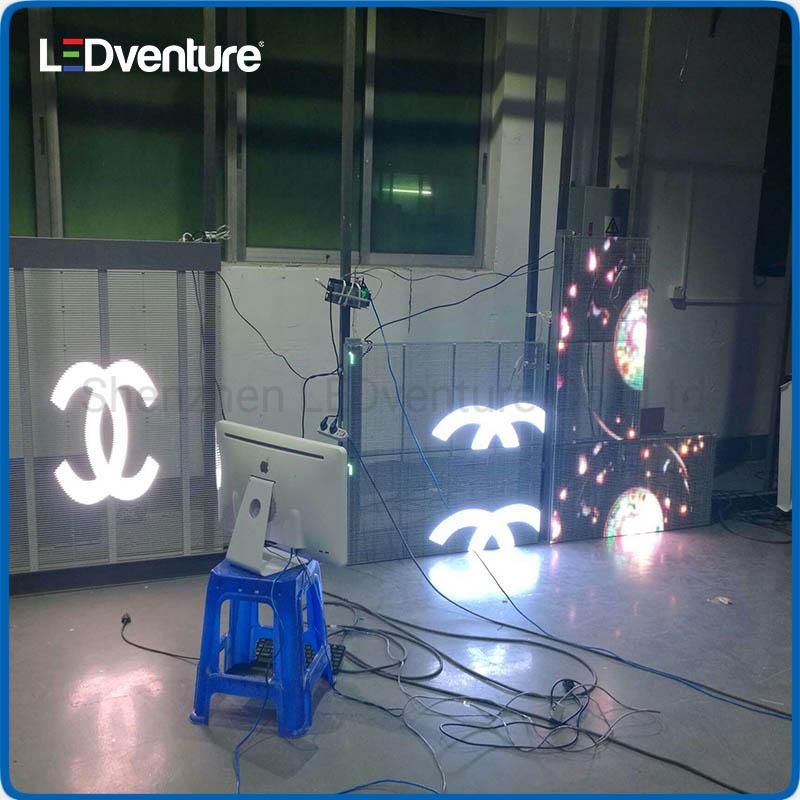

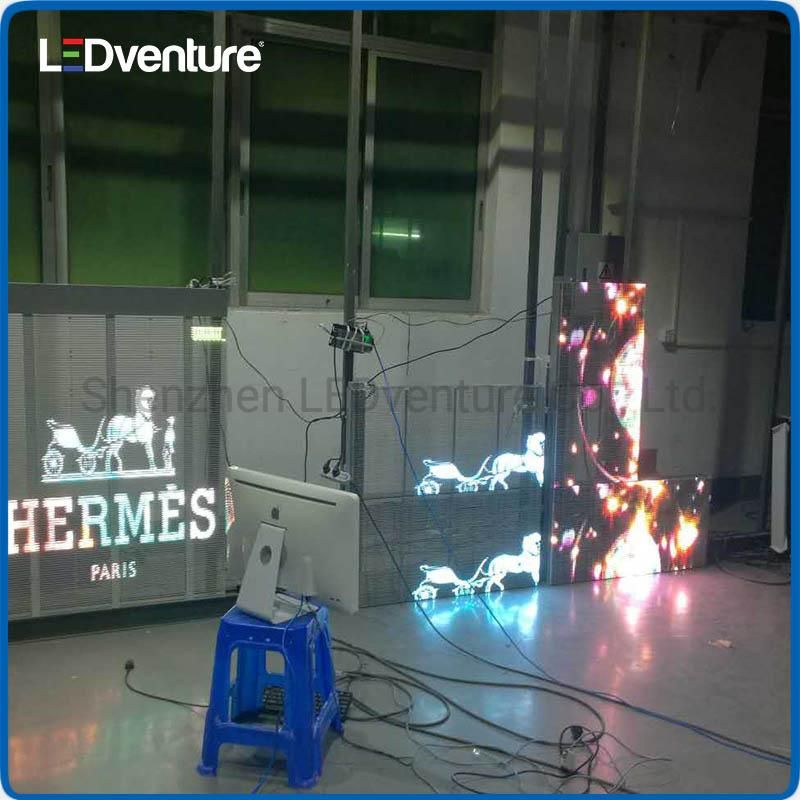

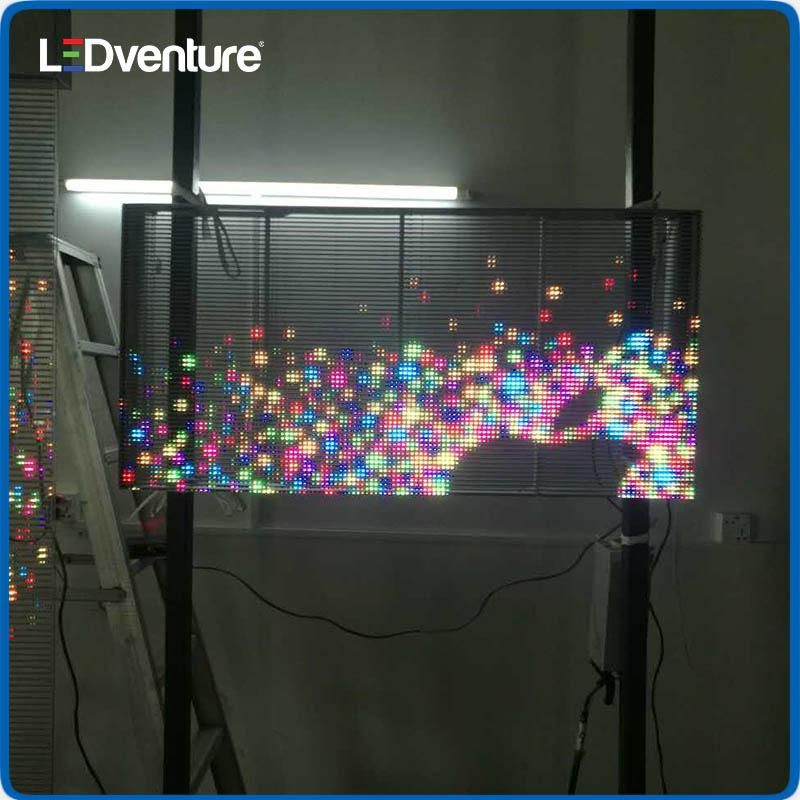

3.Details And Installation
According to statistics, the total area of China's modern glass curtain wall has more than 70 million square meters, mainly concentrated in urban areas, such a huge amount of glass curtain wall, outdoor media advertising is a huge potential market, the market advertising value Was fully developed in the city outdoor advertising resources increasingly depleted circumstances, the glass curtain wall is a new blue ocean field. Transparent LED display has opened up a new field of application, with broad market prospects, especially for the "architectural media" field.
