• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, CCC
• Product Name：Outdoor LED Display P10-4s(SMD)
• Driver IC：Mbi5124
• Bightness CD/Sqm：5800CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500-9500K
• Transport Package：The Factory Packaging
• Specification：320*160mm
• Trademark：hongking
• Origin：China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

Basic Info.

Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, CCC Product Name Outdoor LED Display P10-4s(SMD) Driver IC Mbi5124 Bightness CD/Sqm 5800CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500-9500K Transport Package The Factory Packaging Specification 320*160mm Trademark hongking Origin China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

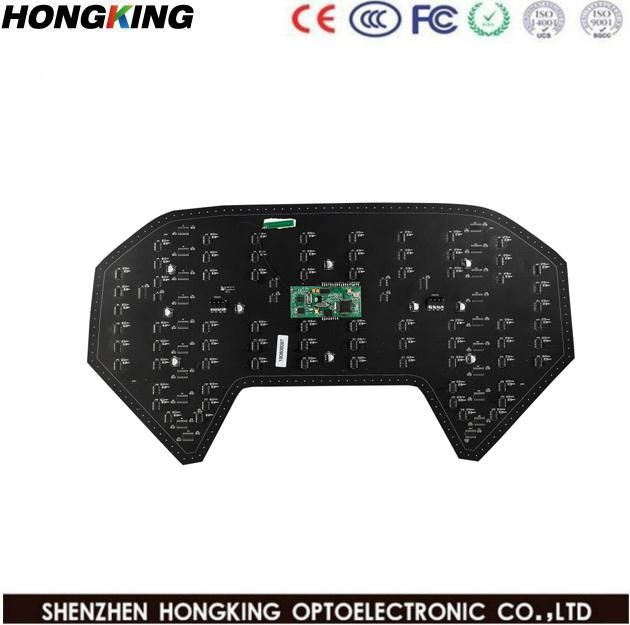

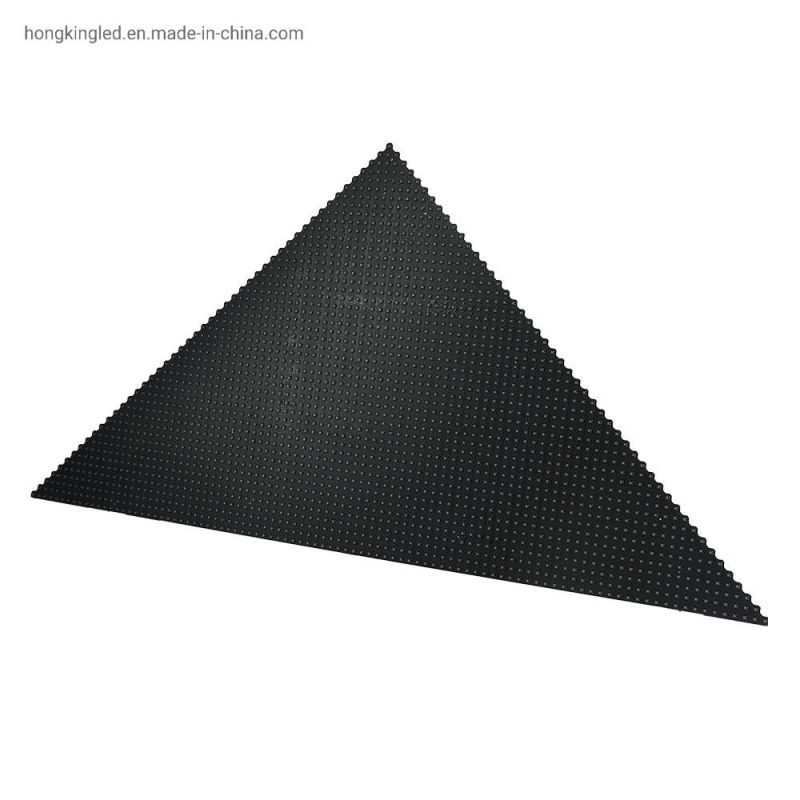

P4 Round Triangle LED Display Screen Sign for Advertising

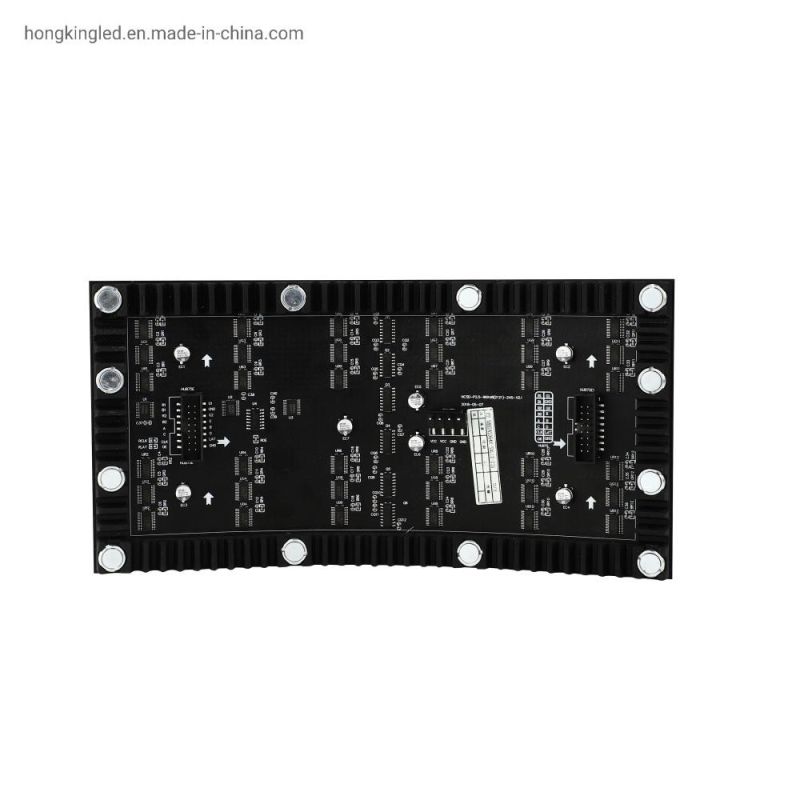

Full Color P10 Outdoor LED Screen Module 320*160mm LED Advertising Outdoor
Professional production:Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen


• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807

Company descripition:HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress.

Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.




Display screen board more information :

1) Display Type

Indoor Led display : P1.25 /P1.579/ P1.875/ P1.923/ P2/ P2.5/ P3/ P3.91 / P4.81/ P5/ P6


Outdoor Led display : P3/ P3.91/ P4.81/ P5 / P6 / P8/ P10



2) Display install way :

Rental Led display :  Rental means this display it is not install on the one place , for example here it is have a Meeting or Events need ta Led display for the background  so rental this Led display to the place , when this party and events it is finish then you  take the Led display screen back wait to the next client to rental the Led display

Fixed Led display : Means this display it is since been install on there it is not any more to move , Always install on there unless the display no work any more





3)Display how to check the quality

Display quality it is good or not good depend on the following accessories , from the Best quality to cheaper have the list on there

a) Led lamp : Top top Cree /Nicha ---- Top Nationstar golden wire /copper wire ----- Middle Kinglight /Kn-Light ---- Cheaper Hongsheng Sanan Led lamp

b)IC  : MBI brand (MBI5124/ MBI5153) -----ICN (ICN2053/ICN 2038S/ICN2037)---- MW/DP

c)PCB : 1.6mm PCB 4Layer ---- 1.4mm PCB ---- 1.2mm PCB ---- 1.0mm PCB

d)Base /mask :  Newlight --- Yingteqi base and mask

e) Connector : Linko date /signal cable ----- Streetonice date /signal cable ----- Jieliantong Date /signal cable

f)Power : Meanwell --- Chuanglian ----Gengergy




Explain more details

Led lamp :  Led display most important parts , Cree / Nicha it is Foreign brand ,Cree it is from USA, Nicha it is from Japan both is very good quality same times then the price it is supper expensive , Nationstar golden / copper wire it is the right now widely use the best quality we are focus on this led lamp .


Led IC :  IC it is relate to the Driver , IC can make the display more high refresh or low refresh , high refresh when your display light on when you take your phone and the Carema to take the video and picture no the shadow and also no the scan line

PCB: PCB it is very important to make the display work well and stable , espceicla when the weather it is very hot the more thickness PCB to make the Led display heat sink more easy and more stable


Base / Mask :  Base and mask the function it is to make the Led display screen looks same and same picture when light up , Good base and mask when the display it is during the hot weahter still change the type , good to protect the Led display lamp working well


Connector :  it is function it is to trannsfer the date and signal between the cabinet to cabinet , good cable make the signal more smooth and problems very less


Power : Power is provide the stable power supply to the whole system , very important when the display been installation to make sure the power stable

NO.:	Product name	Technical parameter
1	Pixel Pitch(mm)	5mm
2	Pixel configuration	1R1G1B/SMD2828
3	Pixel density	40000dots/square meter
4	Brightness	≥7000cd/square meter
5	Module size(W*H)	160mm×160mm
6	Module Resolution (W*H)	32 dots x 32dots
7	Module weight	500g
8	Cabinet size (W*H)	640mm×640mm
9	Drive IC	MBI5124
10	Drive mode	1/8scan
11	Viewing Angle(V/H)	140ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours (50%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Max: 1100w/; Average:390w/
18	Input Power Frequency	50/60Hz
19	Operating temperature	-30--60ºC
20	Humidity	10%-95%
21	Refresh Rate	≥1600HZ
22	Control Method	Synchronized with computer monitor
23	Color Temperature	6500K-9500K
24	LED control system	LINSN,Nova-star,Colorlight is selectable
25	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
26	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10

FAQ:
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty.
4. Q: Freight Cost?
A: The shipping cost depends on different weight; We will choose the cheapest and safest way according your detail quantities.
5. Q: How does your factory do regarding the quality control?
