• Model NO.：P8
• Pixel Density：15625 DOT,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Deliver Time：15-20 Days
• Warranty Period：2years
• Pixel：8mm
• Life Span：100000 Hours
• Cabient：Aluminum Cabient
• Rental Cabinet Size：512*512*85mm
• IC：Import IC
• Color Display：Full Color Display
• USD：New
• Drive Type：1,8 Scan
• Transport Package：Wooden Case, or Air Flight Case
• Specification：Rental cabinet size: 512*512*85mm
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：10000sqm,Month

LED LampTypeSMD3535BrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(800-960mcd)Chip parametersGreen (520-525nm) IV:(1350-1650mcd)Chip parametersBlue (470-475nm) IV:(330-400mcd)LED ModulePixel Pitch8mmModule Size256×128mmModule Resolution32×16=512(Dots)Module Weight0.35kgLED CabinetPixel Density15625 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution128×128=16384(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)1024×1024×175mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet4×8=32(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialSteelColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight42kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>7500cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle120(Horizontal), 120(Vertical)Life-span100, 000 hoursNearest Viewing Distance11mProtection Level(front/back)IP66/IP54Power Consumption (Max)1000 w/sqmMalfunction Dot Rateless than 0.0001Power Consumption (Average)300 w/sqmWorking Temperature-30^oC~50^oCDisplay FunctionText, Graphics, VideoHumidity15%~85%Refresh Rate>800HzDrive Mode/Driver PositionConstant driving 1/4 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 ,Windows 7 and XPSoftwareLED Studio(FWS-linsn)Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB, RJ45, HDMI(Sold separately)Case

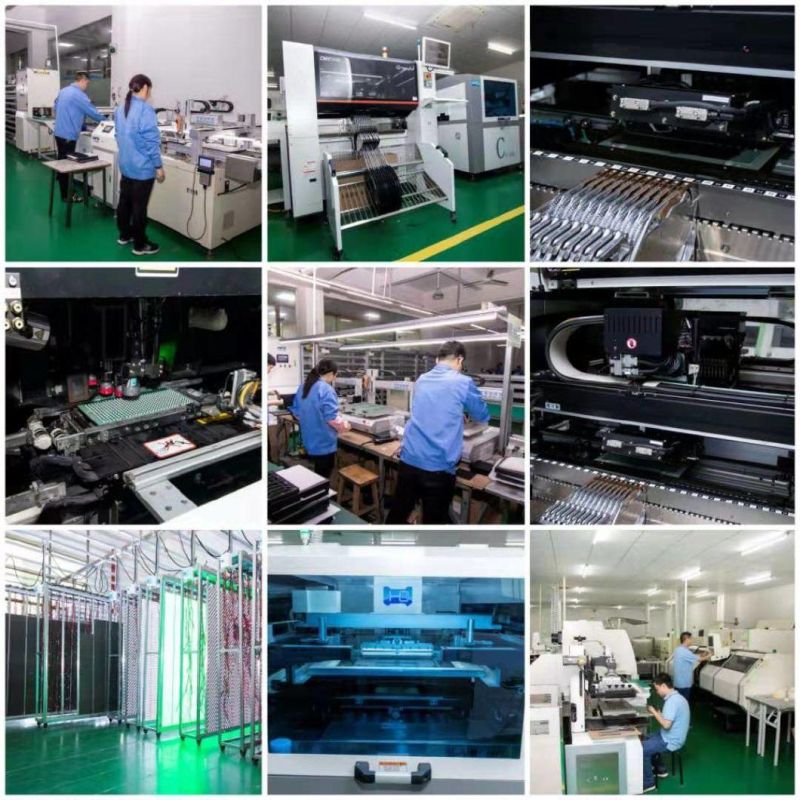

Our workshop

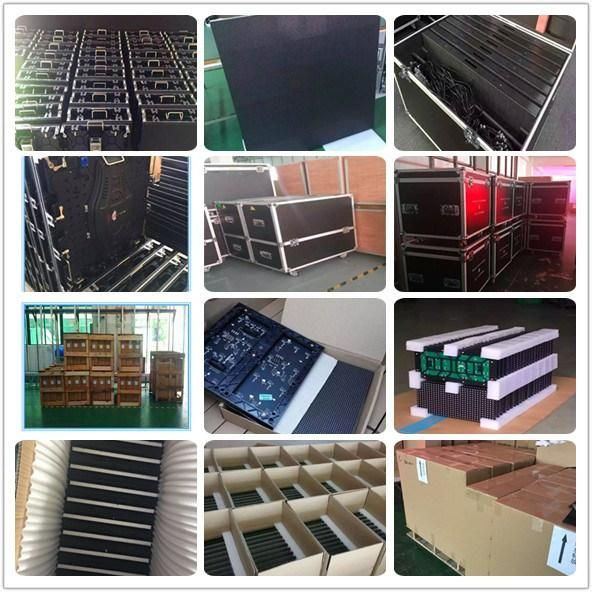

Packing

Customer Visiting

Our Service
1) Your inquiry related to our products or price will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM&ODM, any your customized screen we can help you to design and put imto product.
4)Distributoer ship are offered for your unique design and some our current models.
5)Protection of your sales area, ideas of design and all your private information

Certificate

Trade Terms;
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15days, more than 50 sqm:30days
3)Sample can be delivered in 30days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs
