P8 SMD3535 Outdoor LED Display

Shenzhen Noveled Technology Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：8mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display, Image & Text Display, Text Display, Market Display
  • Average Power Consumption：220W , m²

Base Info

  • Model NO.：P8 outdoor led display
  • Pixel Density：15625
  • Scanning Mode：1,4 Scan
  • Display Type：LED Video Display
  • Application：Stage Performance
  • Certification：CE, RoHS, UL, CCC
  • Cabinet Material：Steel Cabinet
  • Cabinet Size：960mm X 960mm X 120mm
  • Cabinet Weight：40 Kg,PC
  • Lifetime(H): More Than 50000;：More Than 8 Years
  • Brightness：More Than 6000CD
  • Transport Package：Wooden Box
  • Specification：960mm X 960mm
  • Trademark：NVD
  • Origin：Made-in-China
  • HS Code：8528591090
  • Production Capacity：3000sqm, Month

Description

ParametersOutdoor fix installation  steel cabinet  LED Display Series  (  960 MM X 960MM )Pixel Pitch (mm)55mm8mm10mmPixel density(pix/m2)400001562510000LED Type353535353535Viewing AngleX,Y140°X,Y140°X,Y140°Brightness(nits)≥5000≥5000≥5000Drive Method1/61/41/2Color Depth65536Refresh Rate(Hz)192019201920Module Size (mm)320×160×16Cabinet Size(mm)960×960×80Cabinet MaterialaluminumCabinet weight(kg)202020Voltage200-240VAverage.power(W/m2)230230230Max.power (W/m2)700700700IP GradeIP65/IP54Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RHStorage temperature/ humiditytemperature:-40ºC~ 60ºC humidity:10~90%RHLifetime(h)≥50000Compliant StandardCCC(CE)Rosh

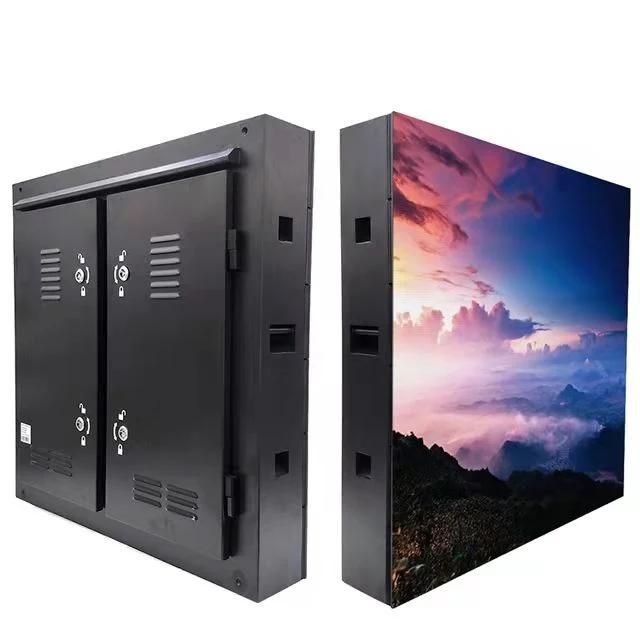

Fix installation steel cabinet  960 mm x 960 mm Feature :
P8 SMD3535 Outdoor LED Display

P65 and Seamless Connection ,New design, suitable for outdoor live show, brightness adjustable facing the sunshine directly,waterproof IP65. neither flick nor color blocks.



P8 SMD3535 Outdoor LED Display




The packing :


P8 SMD3535 Outdoor LED Display
