• Model NO.：P3
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Warranty Period：2years
• Deliver Time：15-20 Days
• Drive Type：Constant Drive
• Package Mode：SMD 2121
• Density：111111 Dots
• Modle Size：192mm*192mm
• Brightness：2800
• Life Span：100000 Hours
• Scan Type：1,32 Scan
• Use：Indoor Display
• Transport Package：Simple Cabinet, Die-Casting Aluminum Case
• Specification：576mm*576mm or biger
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：2000sqm, Month

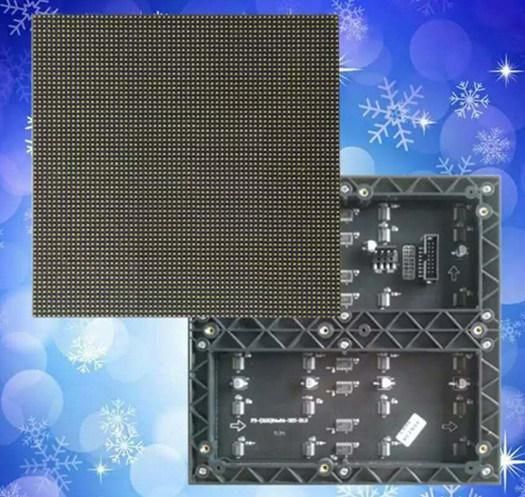

LED LampTypeSMD2121 black bodyBrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(250-300mcd)Chip parametersGreen (520-525nm) IV:(450-550mcd)Chip parametersBlue (470-475nm) IV:(100-120mcd)LED ModulePixel Pitch3mmModule Size192×192mmModule Resolution64×64=4096(Dots)Module Weight0.5kgLED CabinetPixel Density111111 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution192×192=36864(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)576×576×95mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet3×3=9(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialAluminum-magnesium alloy CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight10kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>2000cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle140(Horizontal), 140(Vertical)Life-span100, 000 hoursNearest Viewing Distance6mProtection Level(front/back)IP31/IP54Power Consumption (Max)1200 w/sqmMalfunction Dot Rateless than 0.0001Power Consumption (Average)300 w/sqmWorking Temperature-15^oC-50^oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>800HzDrive Mode/Driver PositionConstant driving 1/16 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 ,Windows 7 and XPSoftwareLED Studio ( FWS-linsn )Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German CertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB; RJ45, HDMI(Sold separately)LED Module & Aluminum cabinet


Features:
1)The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED Screen Rental.
2)The LED Screen Rental is only very thin which makes it ultra-lightweight and space saving.
3)The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs.
4)The quick-lock feature requires no technical skills to install and uninstall.f
5)Chips are purchased from big brands like Cree (USA), Nichia (Japan), Opto (Taiwan).
6)The Seamless Splice Screen is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate.
7)You may use it at indoor areas like exhibition, school, malls, stages, stadium and at many more indoor places.
In single Indoor LED Display Price, you get the complete kit which includes the LED display, cabinet, control system and package.

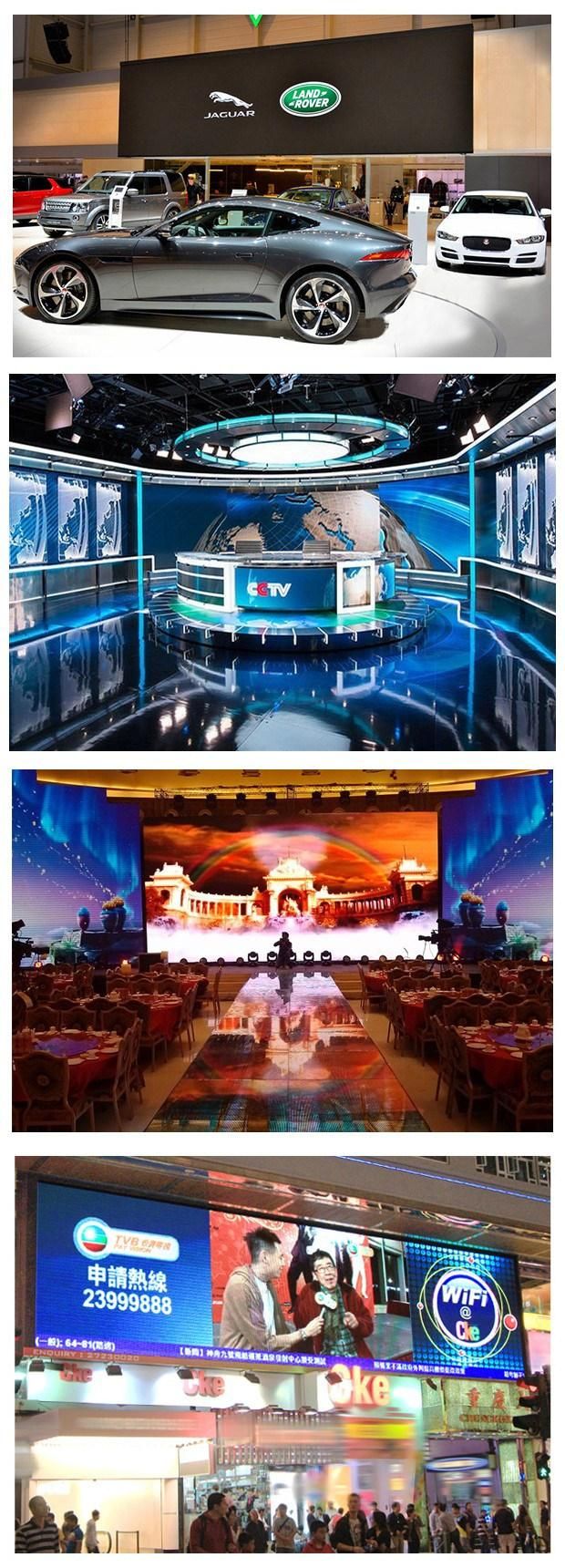

Case

Our Clients

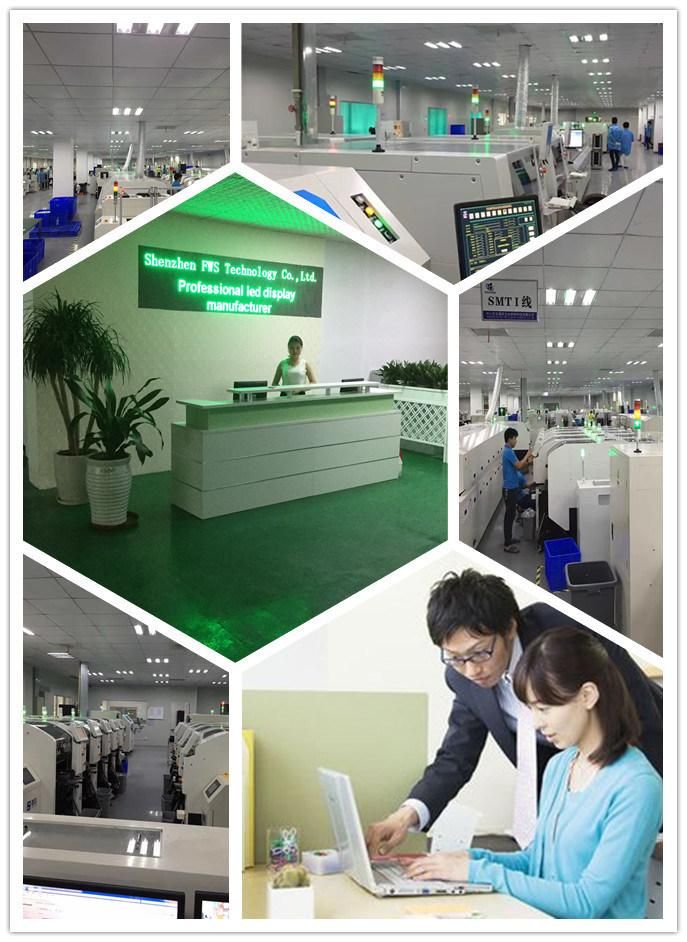

Our Factory
