• Model NO.：LED Display P10-4S
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display

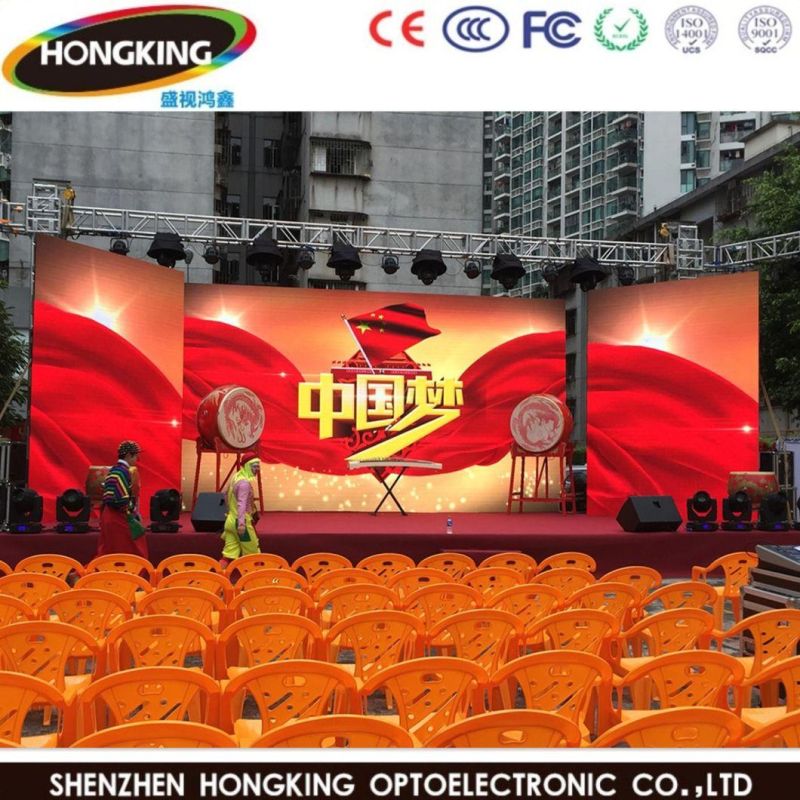

• Application：Stage Performance
• Certification：CE, RoHS, CCC, ISO9001
• Product Name：Outdoor LED Display P10-4s(DIP)
• Driver IC：Mbi5124
• Bightness CD/Sqm：6000CD,M2
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：6500-9500k
• Transport Package：The Factory Packaging
• Specification：160*160mm
• Trademark：hongking
• Origin：China
• HS Code：8528591090
• Production Capacity：5000 Sqm,Year

Basic Info.

Model NO. LED Display P10-4S Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, CCC, ISO9001 Product Name Outdoor LED Display P10-4s(DIP) Driver IC Mbi5124 Bightness CD/Sqm 6000CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500-9500k Transport Package The Factory Packaging Specification 160*160mm Trademark hongking Origin China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

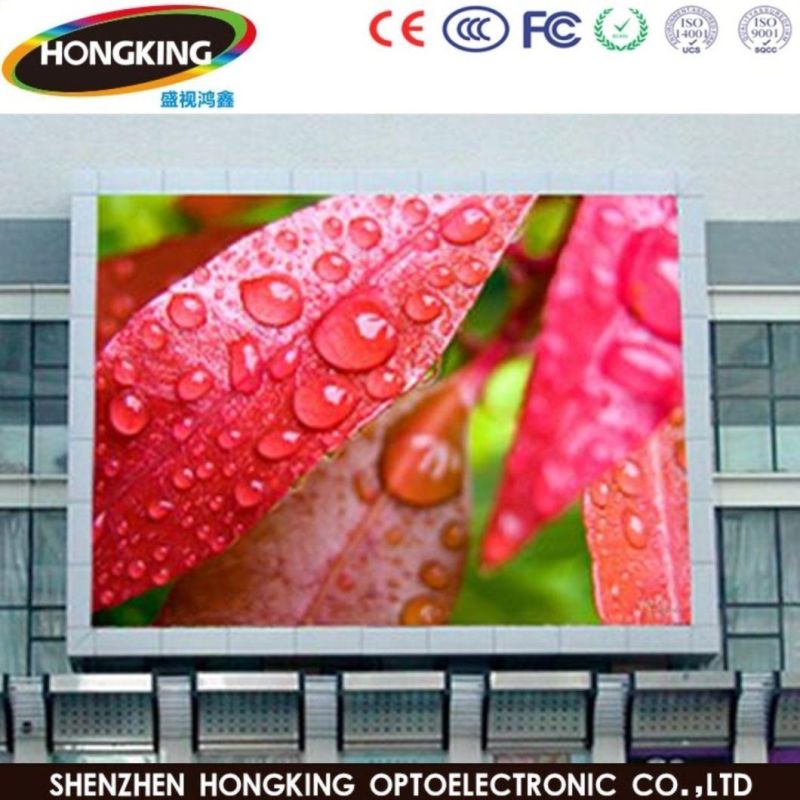

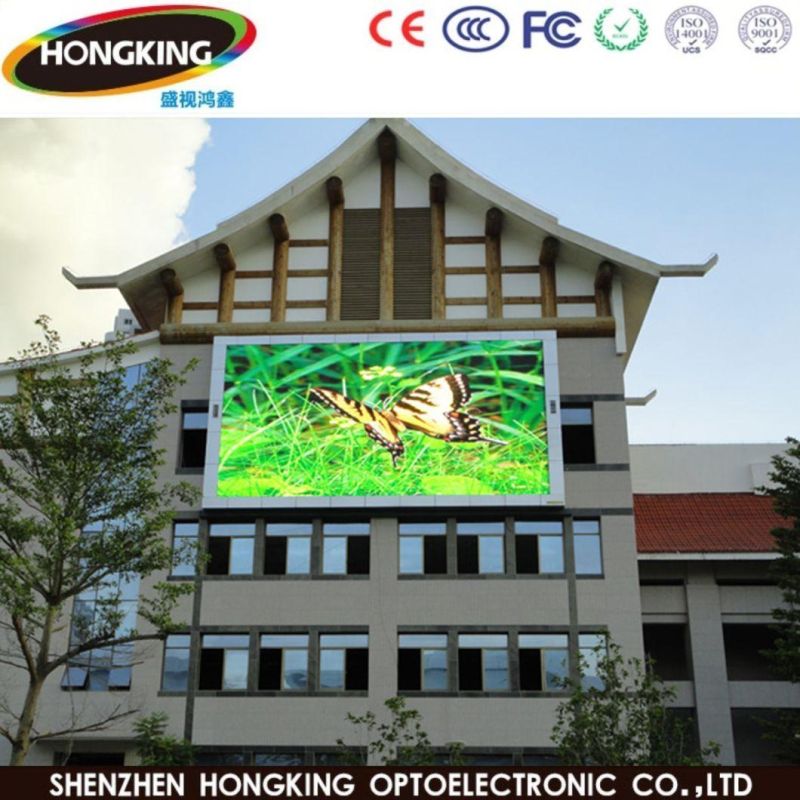

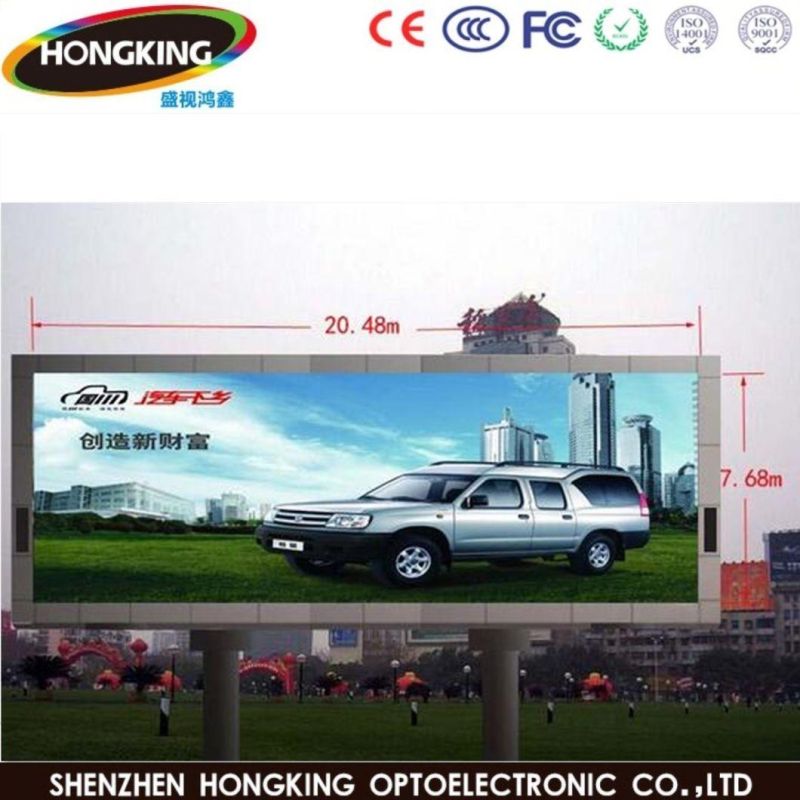

Made in China Outdoor Front Service P10 LED Display Digital Signage for Advertising


Wholesale P10 Outdoor Full Color LED Display for Fixed Installation

1) Relatively low cost (factory)
2) Stable capability
3) High brightness, high definition of displaying image.
4) Easy installment and low maintenance cost
5) cabinet size double fan design, speed up  internal air circulation, auxiliary heat make the screen more stable and reliable.




	Outdoor Fixed F10	Outdoor Fixed F16	Outdoor Fixed F20
Pixel Pitch	10 mm	16 mm	20 mm
Module Size	160x160 mm	256x256 mm	320x160 mm
Module Resolution	16x16 pixels	16x16 pixels	16x8 pixels
LED	DIP 346	DIP 346	DIP 346
Standard Cabinet Size	960x960 mm	1024x1024 mm	1280x1280 mm
Standard Cabinet Resolution	96x96 pixels	64x64 pixels	64x64 pixels
Standard Cabinet	Iron	Iron	Iron
Physical Density	10000 Pixels/m2	3906 Pixels/m2	2500 Pixels/m2
White Balance Luminance	≥7500 nits	≥8000 nits	≥7000 nits
Gray Scale per Color	16384 level	16384 level	16384 level
Contrast	1000:01:00	1000:01:00	1000:01:00
Refresh Frequency	≥1920 Hz	≥1920 Hz	≥1920 Hz
Visual Angle(Horizontal/Vertical)	120°/50°	120°/50°	120°/50°
Max Power	650 W/m2	900 W/m2	1200 W/m2
Average Power	200 W/m2	300 W/m2	400 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP
Product Model	Outdoor Fixed F10-S	Outdoor Fixed F8-S	Outdoor Fixed F6-S
Pixel Pitch	10 mm	8 mm	6 mm
Module Size	320x160 mm	256x128 mm	192x192 mm
Module Resolution	32x16 pixels	32x16 pixels	32x32 pixels
LED	SMD3535	SMD3535	SMD3535 or SMD2727
Standard Cabinet Size	960x960 mm	1024x1024 mm	768x768 mm
Standard Cabinet Resolution	96x96 pixels	128x128 pixels	128x128 pixels
Standard Cabinet	Iron	Iron	Iron
Physical Density	10000 Pixels/m2	15625 Pixels/m2	27777 Pixels/m2
White Balance Luminance	≥6500 nits	≥7000 nits	≥6000 nits
Gray Scale per Color	16384 level	16384 level	16384 level
Contrast	1000:01:00	1000:01:00	1000:01:00
Refresh Frequency	≥1920 Hz	≥1920Hz	≥1920 Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°
Max Power	650 W/m2	750 W/m2	1000 W/m2
Average Power	200 W/m2	250 W/m2	350 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP

Beautiful and charming LED Dispaly for P10-4S(DIP)

Product descripition:



Professional production:

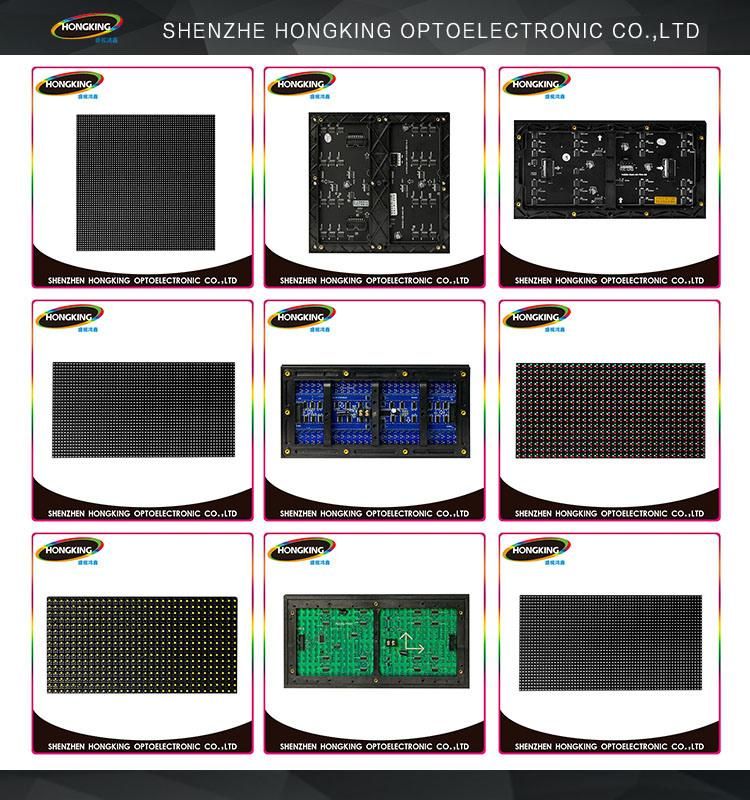

Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress.


Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

FAQ:
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty.
4. Q: Freight Cost?
A: The shipping cost depends on different weight; We will choose the cheapest and safest way according your detail quantities.
5. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
